ST Dialog ST
16 - 4 V Series Operating Instructions

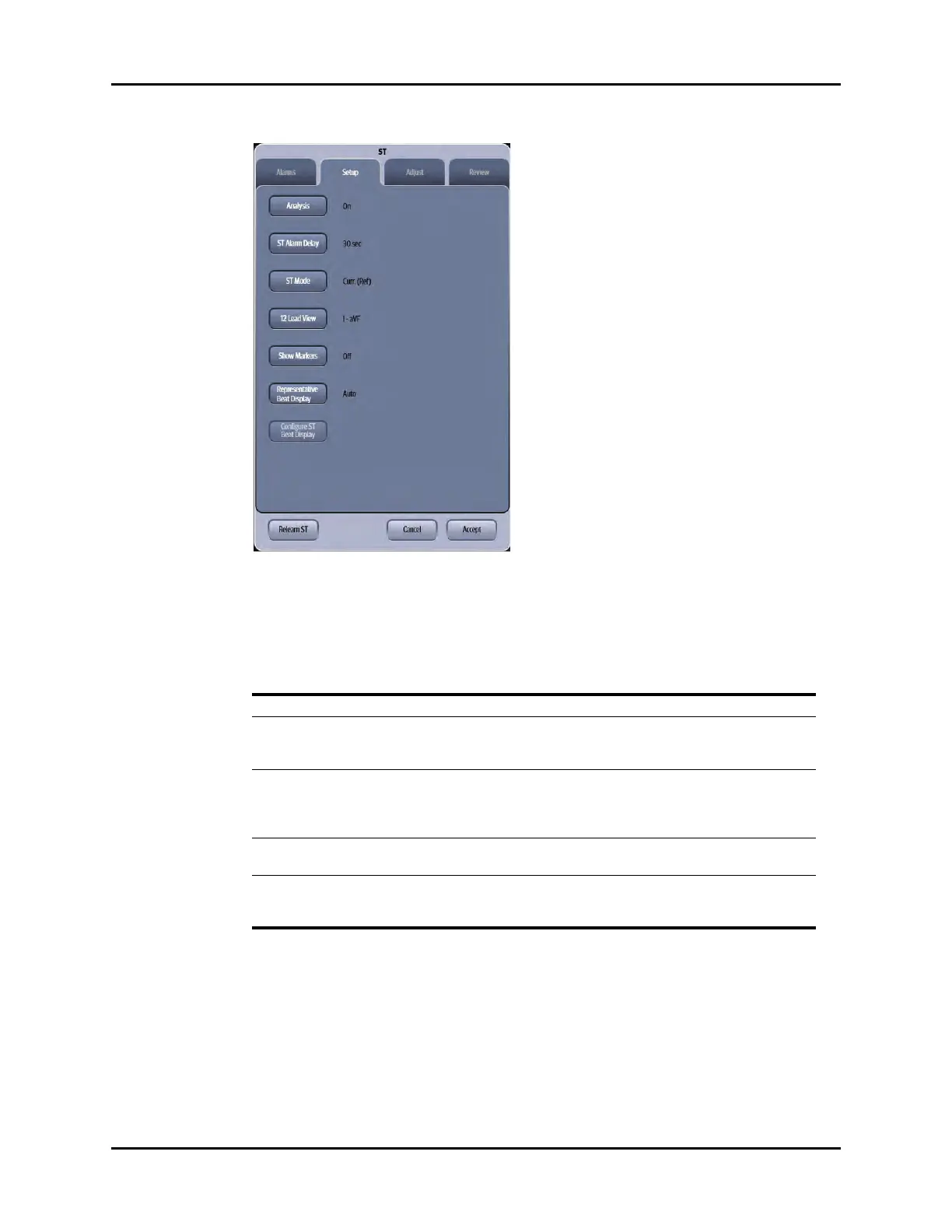

FIGURE 16-2 Example ST Dialog (Setup Tab)
3. Select the buttons described in TABLE 16-1 to configure the tab.
TABLE 16-1
BUTTON DESCRIPTION / COMMENTS CHOICES*
Analysis Enables or disables ST analysis. On, Off
ST Alarm Delay Configures the delay time before calling an ST
alarm.
30 seconds, 45 seconds, 1
minute, 90 seconds, 2 minutes,
and 3 minutes
ST Mode Configures whether Current and Reference
digital data display in the ST Real-Time tile, or
if only the Current digital data appears in the
ST Real-Time tile.
Current, Curr.(Ref)
12 Lead View When using a 12-lead cable type, configures
which of the 12-leads are viewable in the tile.
1-aVF, V1-V6
Show Markers When displaying the ST Rep Beat tile, this
configures whether or not the ISO, J/ST points
are shown in the tile
On, Off
* The factory default configuration settings are in bold.
