V Dock Mechanical Functions
4 - 14 V Series Operating Instructions

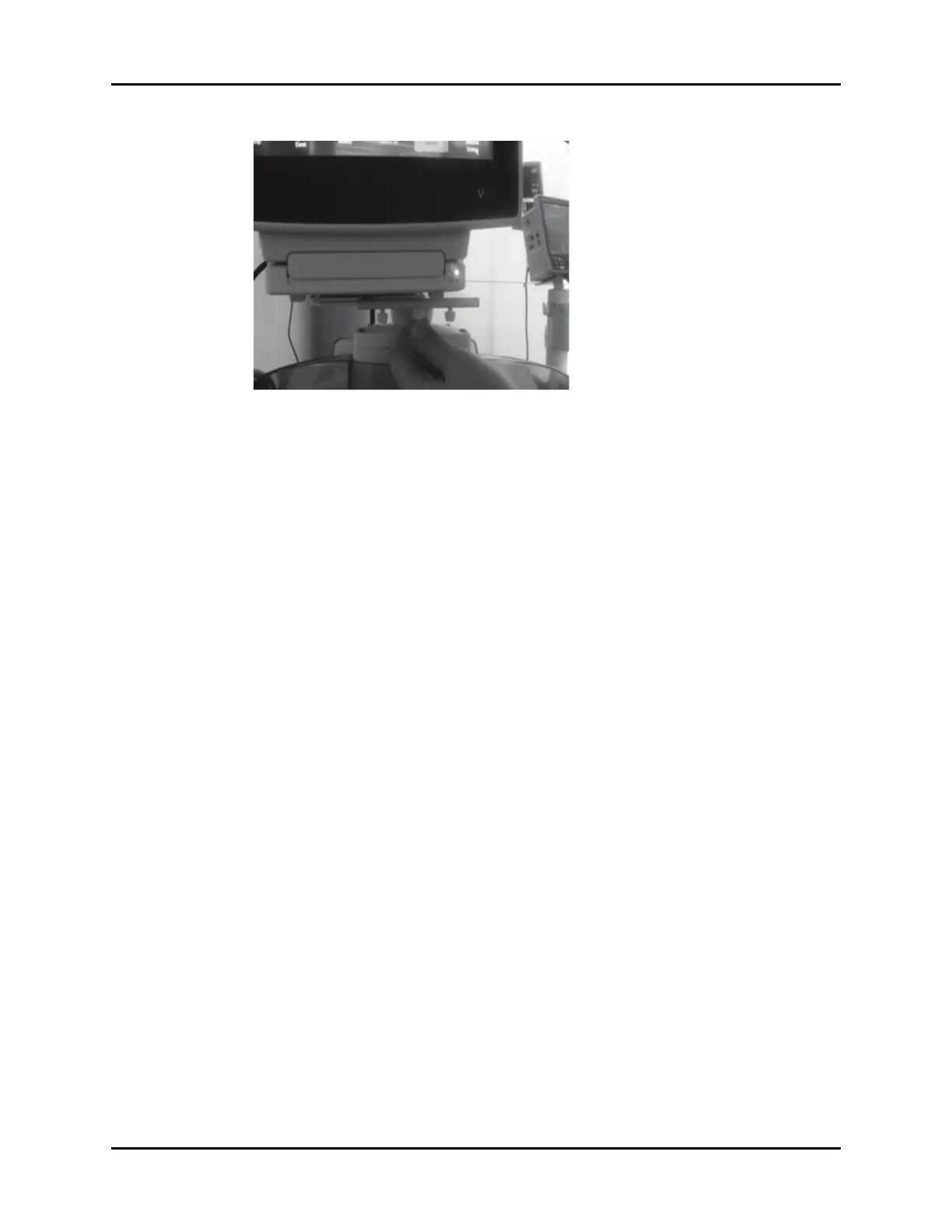

FIGURE 4-22 Removal from Rolling Stand
3. As the V Dock approaches a centered position relative to the wall mount (shown in FIGURE 4-21)
or rolling stand (shown in FIGURE 4-22), release V 21 the spring-loaded plunger. Continue to
slide the V Dock sideways until the spring-loaded plunger engages the notch in the mounting
plate, with a corresponding audible click.
4.3.2 V Dock Dismounting
1. If a V 12 or V 21 is docked, undock it.
2. Pull down on the spring-loaded plunger near the front of the mounting channel.
3. Firmly grip the V Dock with the other hand and carefully slide it sideways until it is free of the
mounting channel.
