Bispectral Index (BIS) (Optional) BIS Dialog
3. Select the BIS button.
4. Select the Waveform tab.
The Waveform dialog displays (as shown in FIGURE 19-5).
NOTE: The current parameter setting displays in bold to the right of each
button.

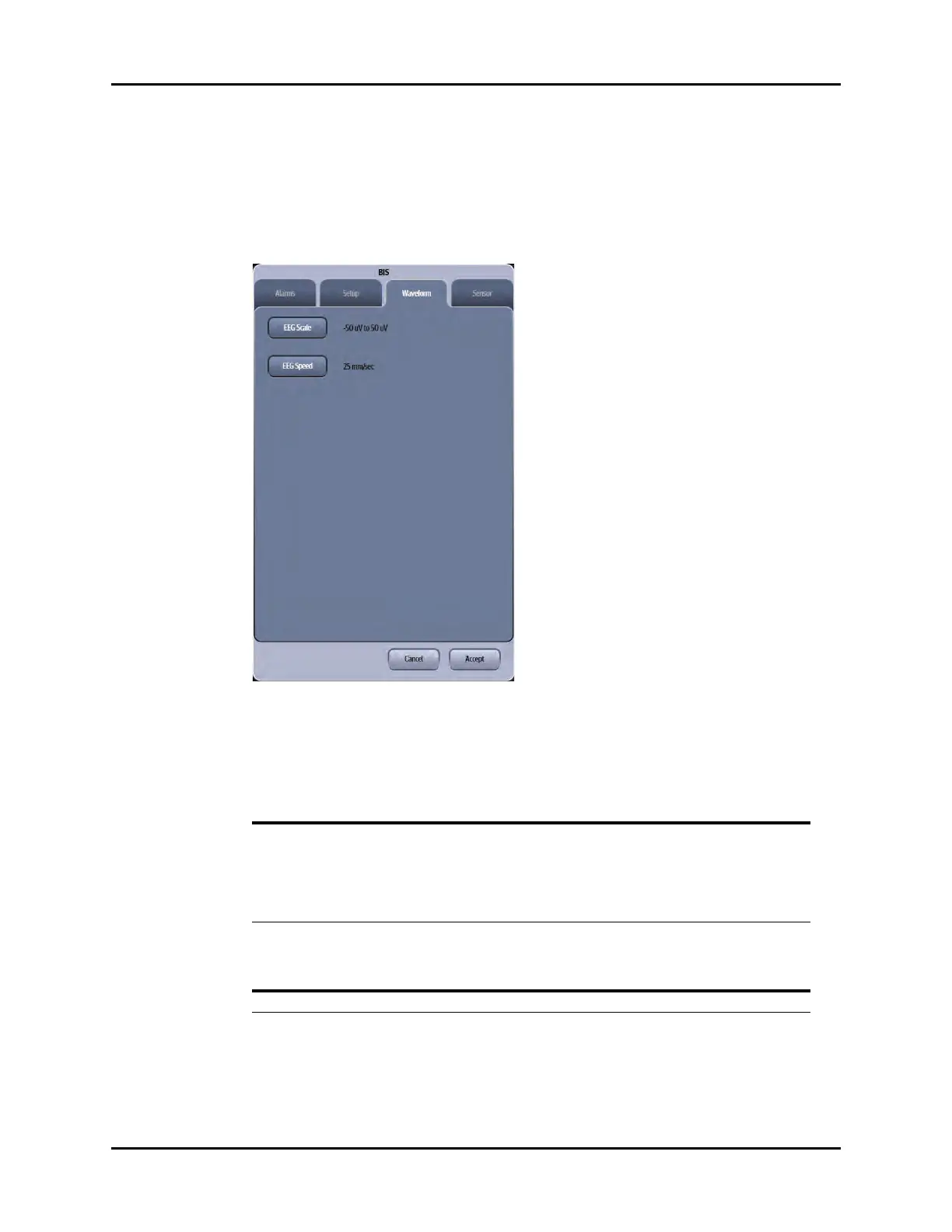

FIGURE 19-5 Example BIS Dialog (Waveform Tab)
5. Select the buttons described in TABLE 19-3 to configure the tab.
6. Select the Cancel or Accept button.
•The Cancel button closes the dialog without saving the settings.
•The Accept button saves the settings and closes the dialog.
TABLE 19-3
BUTTON DESCRIPTION / COMMENTS CHOICES*
EEG Scale Configures the scale for the EEG waveform. -25 V to 25 V,
-50 μV to 50 μV,
-100 V to 100 V,
-200 V to 200 V
-250 V to 250 V
-400 V to 400 V
EEG Speed Configures the sweep speed for the EEG waveform. 6.25 mm/sec,
12.5 mm/sec,
25 mm/sec,
50 mm/sec,
* The factory default configuration settings are in bold.
To Next Page
