BIS Tile Layout Bispectral Index (BIS) (Optional)
19 - 16 V Series Operating Instructions

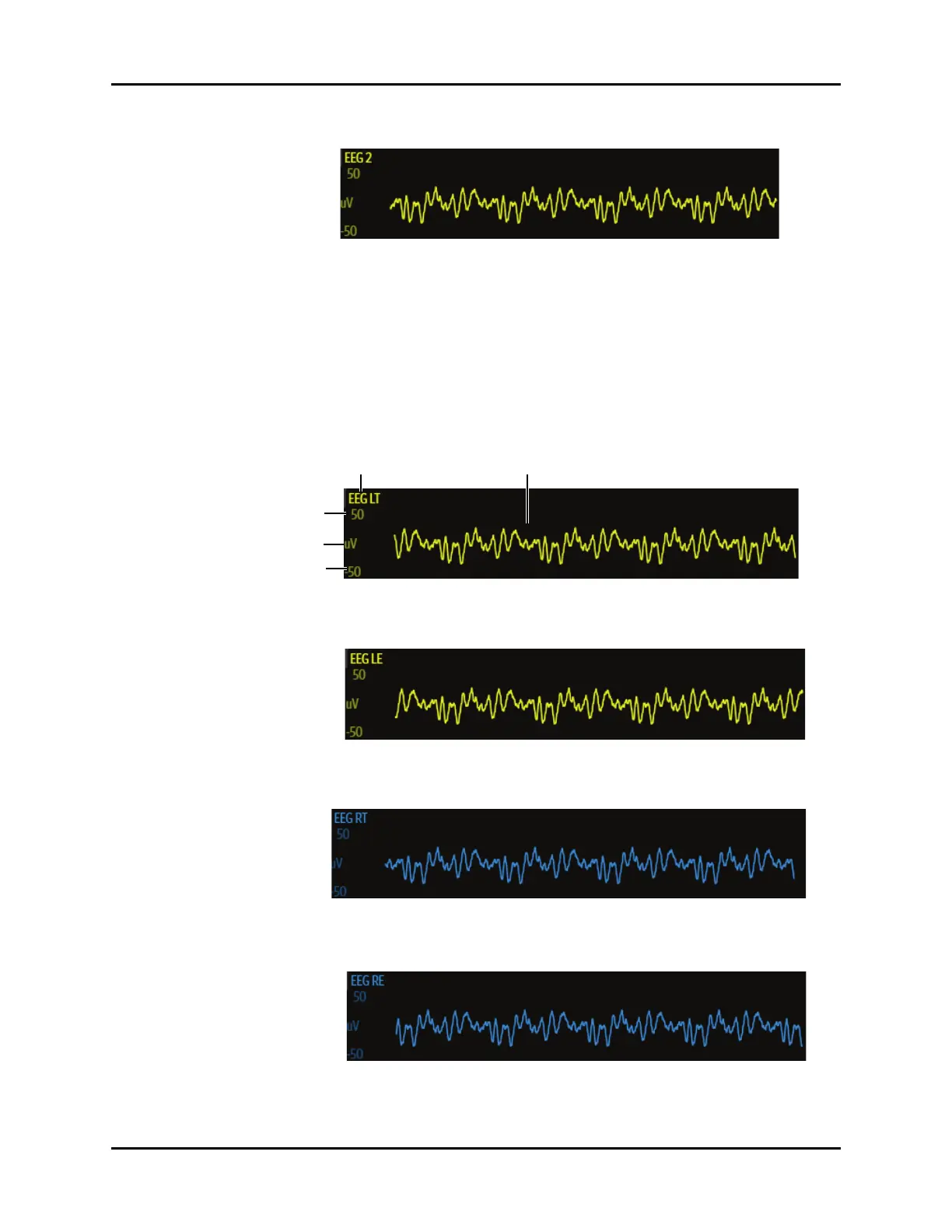

FIGURE 19-11 Example EEG 2 Waveform Tile
• When using a bilateral sensor for BIS monitoring of both the left and right sides of the brain, the
waveforms for EEG left temple (LT) or left eye (LE) display, and EEG right temple (RT) or right eye
(RE) display (as shown in FIGURE 19-12, FIGURE 19-13, FIGURE 19-14, and FIGURE 19-15):
1. Tile name
2. EEG waveform
3. Waveform scale
4. Unit of measure
FIGURE 19-12 Example EEG LT Waveform Tile
FIGURE 19-13 Example EEG LE Waveform Tile
FIGURE 19-14 Example EEG RT Waveform Tile
FIGURE 19-15 Example EEG RE Waveform Tile
