Hardware Technical Reference Manual
Peripheral Cabinet
Digital Service Unit
SUPERSET HUB
3300 CITELlink Gateway
The 3300 CITELlink Gateway allows the 3300 ICP controller to support legacy Nortel Meridian 1
and Norstar telephone sets. The gateway translates the 3300 ICP IP phone protocol to Norstar
or Meridian set protocol allowing Norstar and Meridian 1 phone features—including the displays,
softkeys, and supported hardkeys—to function as Mitel IP phones.
The gateway connects to the 3300 ICP controller through a Layer 2 switch. Up to 24 Norstar
phones can be connected to the gateway using the existing telephone wiring, punchdown
blocks, and connectors. The Norstar phones are line-powered from the gateway. No additional
phone power is required.
Refer to the 3300 CITELlink Gateway Installation and Configuration guide for complete technical
details. You can access this guide from http://edocs.mitel.com
. Note that you’ll need a Mitel
OnLine username and password, and Adobe Acrobat Reader.
Note: Refer to the Release 7.0 version of the Hardware Technical Reference Manual
for Peripheral Cabinet description details.
Note: Refer to the Release 7.0 version of the Hardware Technical Reference Manual for
DSU cabinet description details.
Note: Refer to the Release 7.0 version of the Hardware Technical Reference Manual for
SUPERSET™ HUB description details.

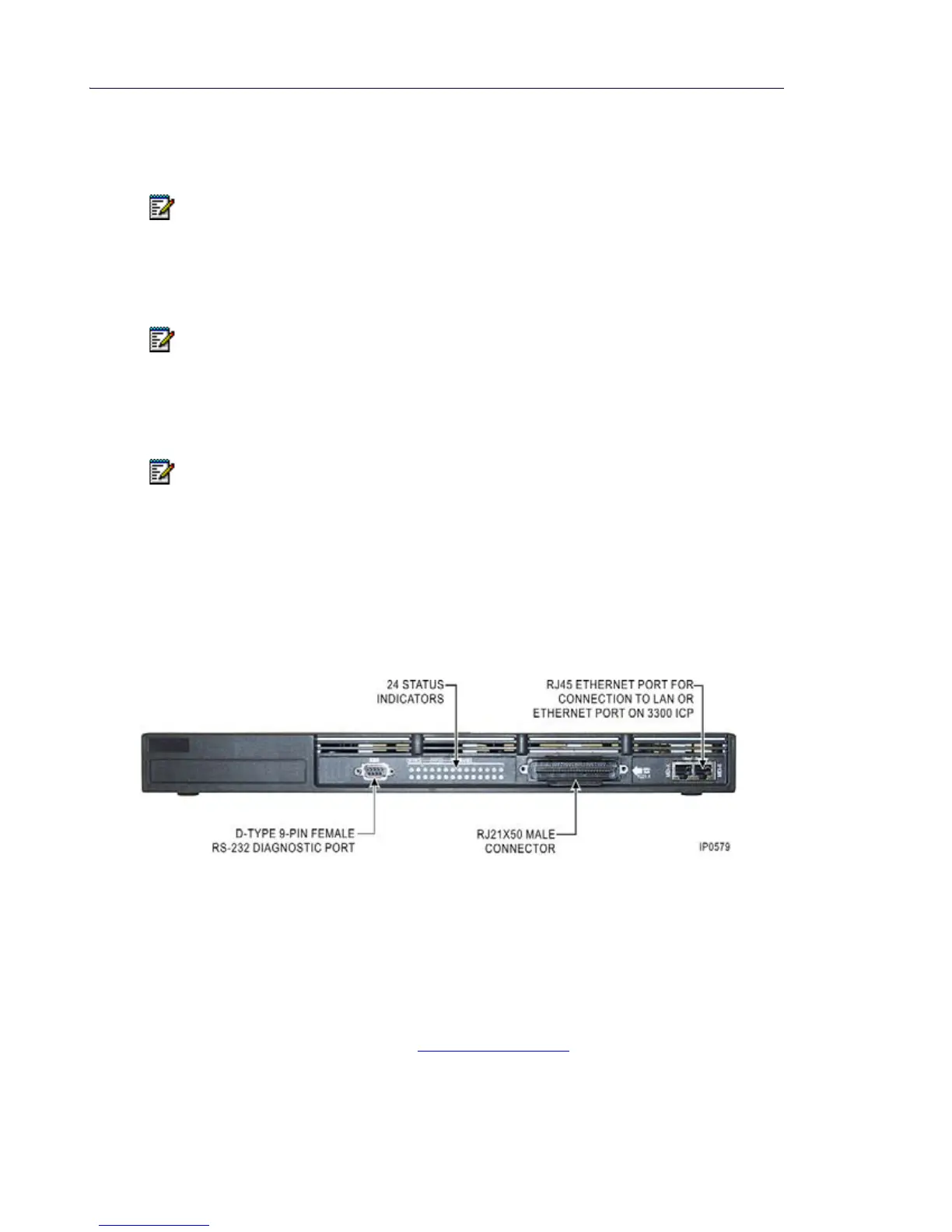

Figure 32: 3300 CITELlink Gateway
