3300 ICP Controllers
15

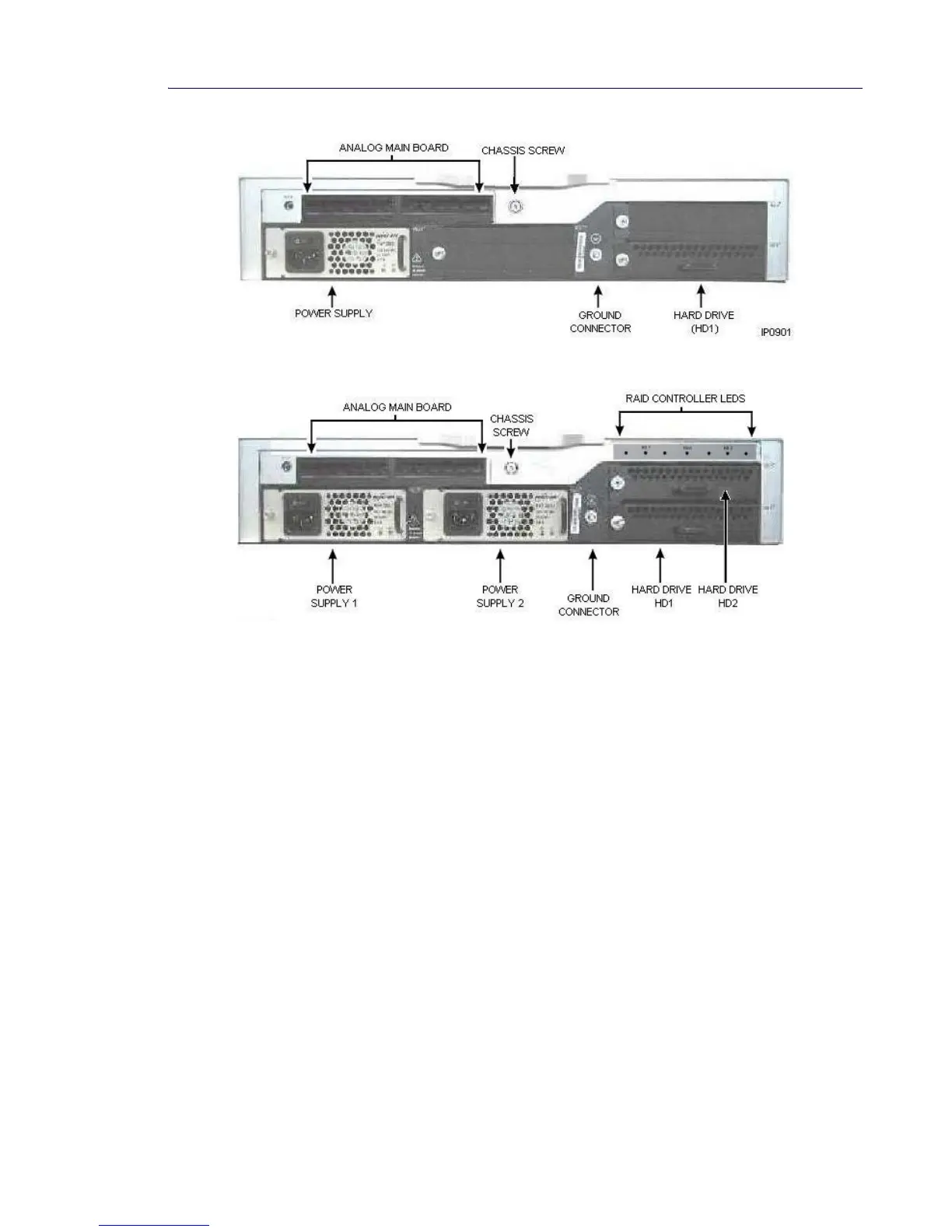

Figure 5: MXe Controller Rear View
Figure 6: MXe Controller with Redundant Hard Drive
and Power Supply - Rear View
The rear panel has an input power connector (standard male IEC320 AC) and protective ground.
Standard Configuration for MXe
• Six slots for expansion modules
• RTC / E2T compute card:
• On MXe-III (Release MCD 4.2 and later): MPC8360 533 MHz processor with 512 MB
of DDR2
• On MXe: MPC8280 450 MHz processor with 512 MB of SDRAM
• Mid-plane with 4 21363 DSP and DSP Echo Canceller module included (S/W Rel. 8.0 and
later). Note that MXe-III requires Rev. E of the mid-plane.
• Stratum 3 clock
• Analog Main Board for embedded analog trunks and lines
• Two (redundant) cooling fans
Optional Configuration
You can add
