3300 ICP Controllers

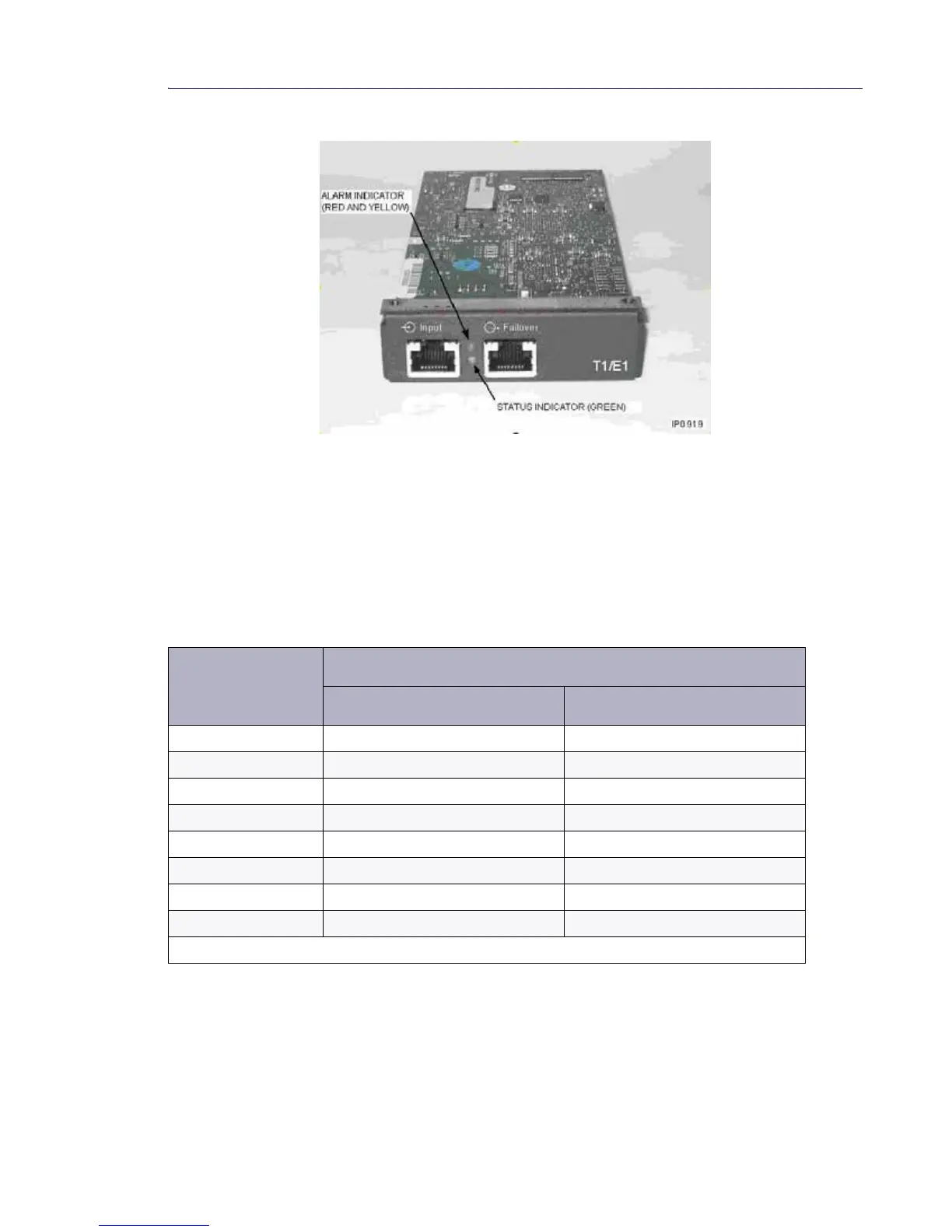

Figure 15: T1/E1 Combo Card

Specifications

Refer to Table 9, “T1/E1 Framer Supported Protocols and Variants,” on page 37 and Table 10,

“Dual T1/E1 Framer and T1/E1 Combo Specifications,” on page 37.

Pin Allocations

Table 12: T1/E1 Combo Card Pin Allocations

Pin Number

Signal

Network Termination (Default) Line Termination

1 Rx Ring Tx Ring

2 Rx Tip Tx Tip

3– –

4 Tx Ring Rx Ring

5 Tx Tip Rx Tip

6 – –

7– –

8 – –

Note: Network and Line Termination settings are software-controlled.
