Mitel 3300 - Cabling Guidelines in the Equipment Room

Hardware Technical Reference Manual
144
Cabling Guidelines in the Equipment Room
Refer to Figure 35 and the corresponding cabling guidelines to minimize electrical interference
in the equipment room.

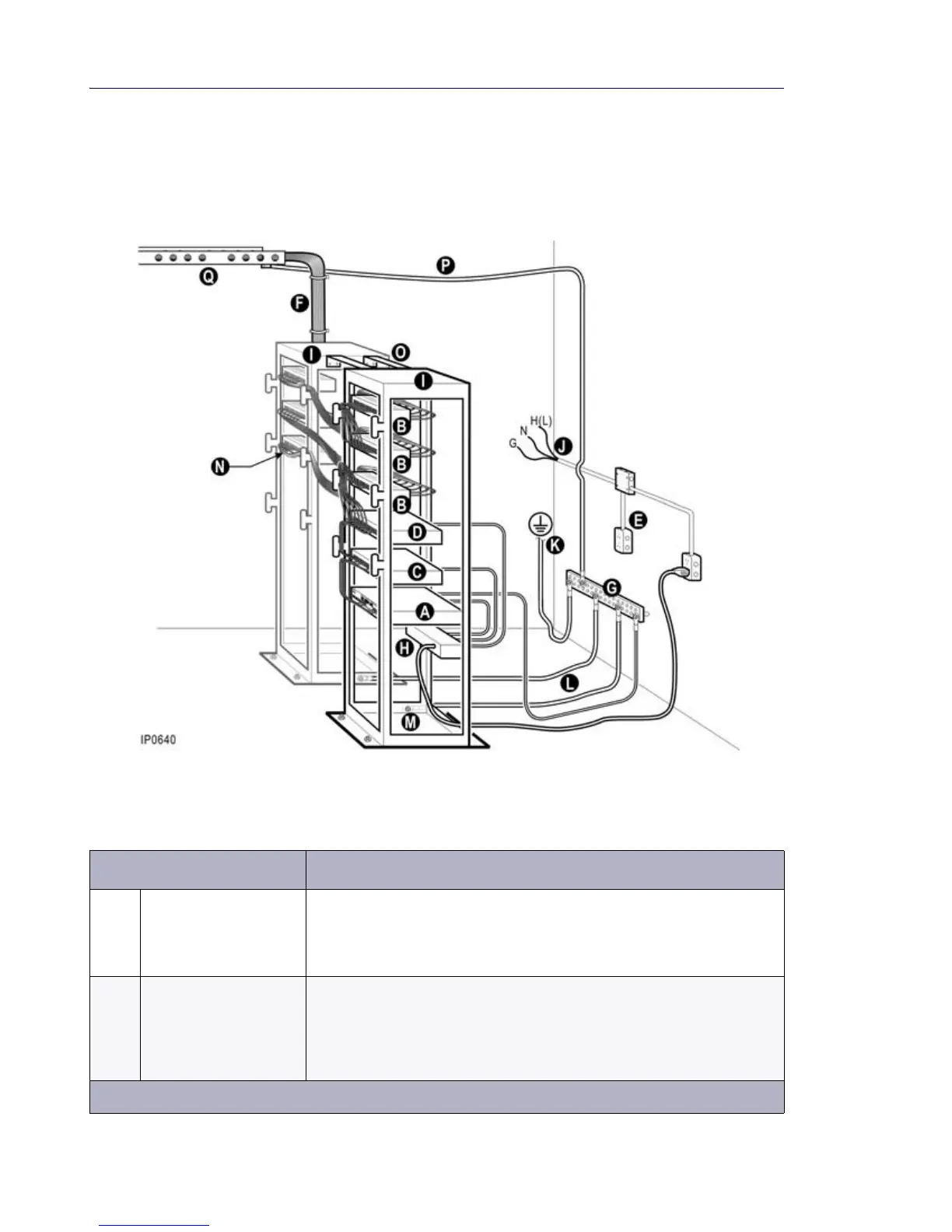

Figure 35: Equipment Room Cabling
Table 87: Equipment Room Cabling Guidelines
Connection Guidelines
A 3300 ICP or 3100 ICP
controller
• Use CAT 5, CAT 5e, or CAT 6 Ethernet connector blocks and cables
• CAT 5e or CAT 6 certified cable provides better immunity to crosstalk
• Connect ground stud on back of controller to ground bar bus (G) with a
dedicated ground wire
B Patch panel • Patch panels must be certified for CAT 5 cable
• Do not use punch-down blocks that are designed for voice-grade
telephony signals to interconnect 100 Mbps Ethernet signals.
• Recommended connector blocks can be obtained from www.anixter.com
(part number 201011)
Page 1 of 3
