3300 ICP Controllers
11

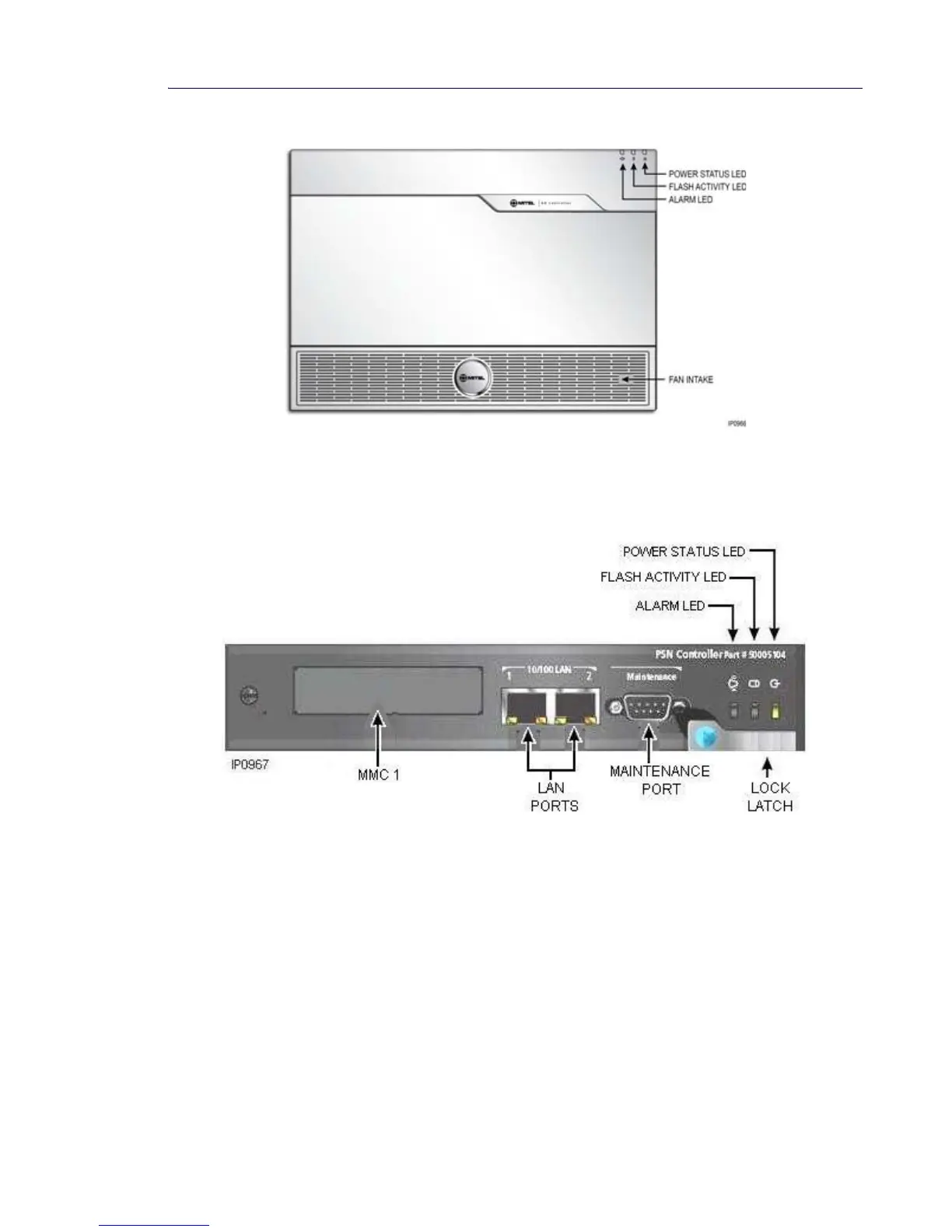

Figure 1: AX Controller
The controller front panel consists of the following components:
• System LEDs - Alarm, Flash Activity, Power/Status
Figure 2: AX Controller Front View (Cover Removed)
The controller card in the AX controller rear panel consists of the following components:
• One slot for expansion modules
• Two 10/100 BaseT Ethernet LAN ports (RJ-45 connector)
• One DB-9 maintenance port
