3300 ICP General Information Guide
14
• System LEDs - Alarm, Hard Drive, Power/Status
• Status LEDs - Ethernet, CIM, and Alarm
• Reset pin
The Controller rear panel consists of the following components:
• Input power connector (standard male IEC320 AC)
• Protective ground.
Standard Configuration
• Five expansion modules
• One 450 MHz processor (shared by the RTC and E2T modules)

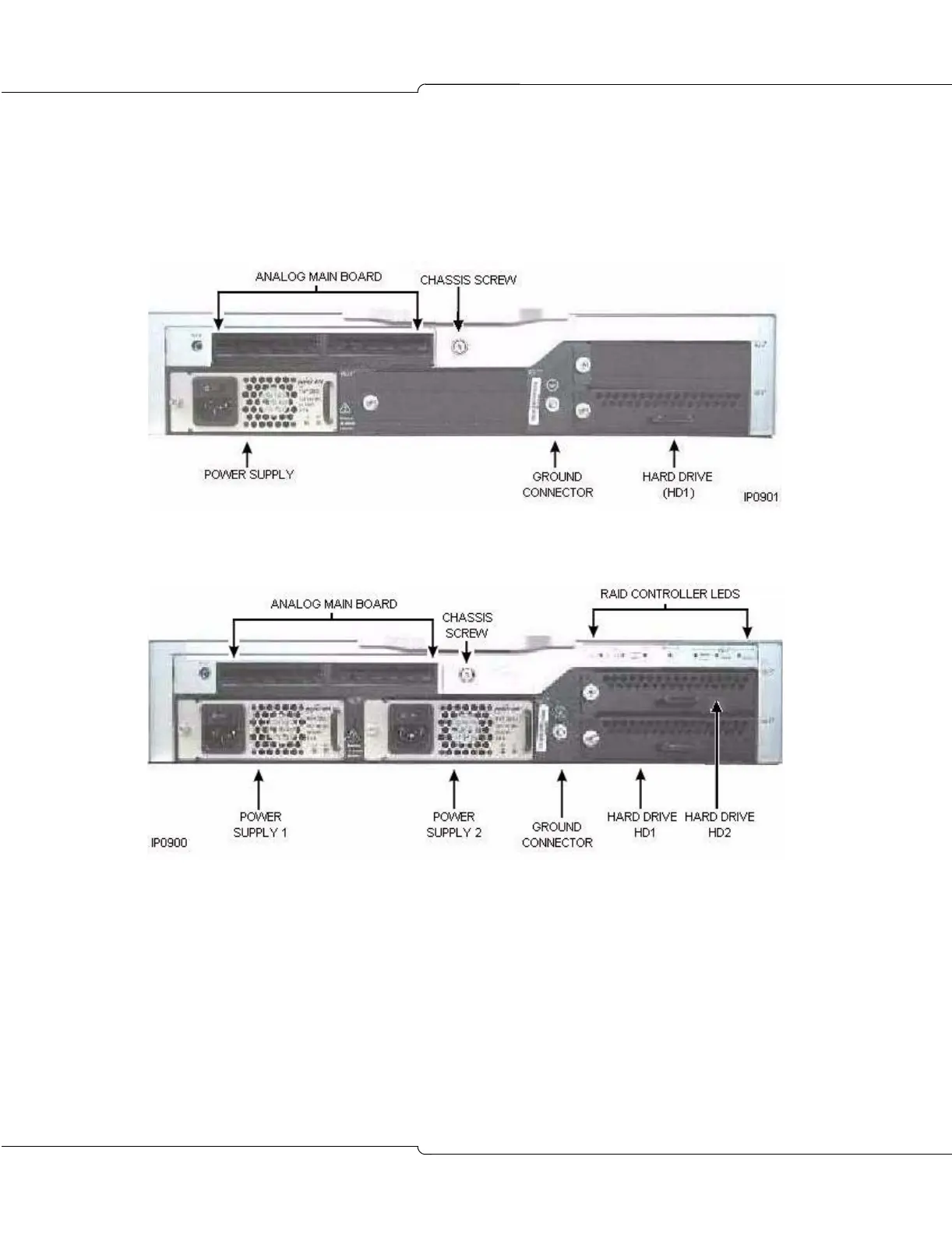

Figure 2: MXe Controller Rear Panel - No Analog and a Single Hard Drive
Figure 3: MXe Controller Rear Panel - Analog and Redundant Hard Drives
