252
13 DATABASE FUNCTION
13.3 CPU Module Database Access (from External Device) Function

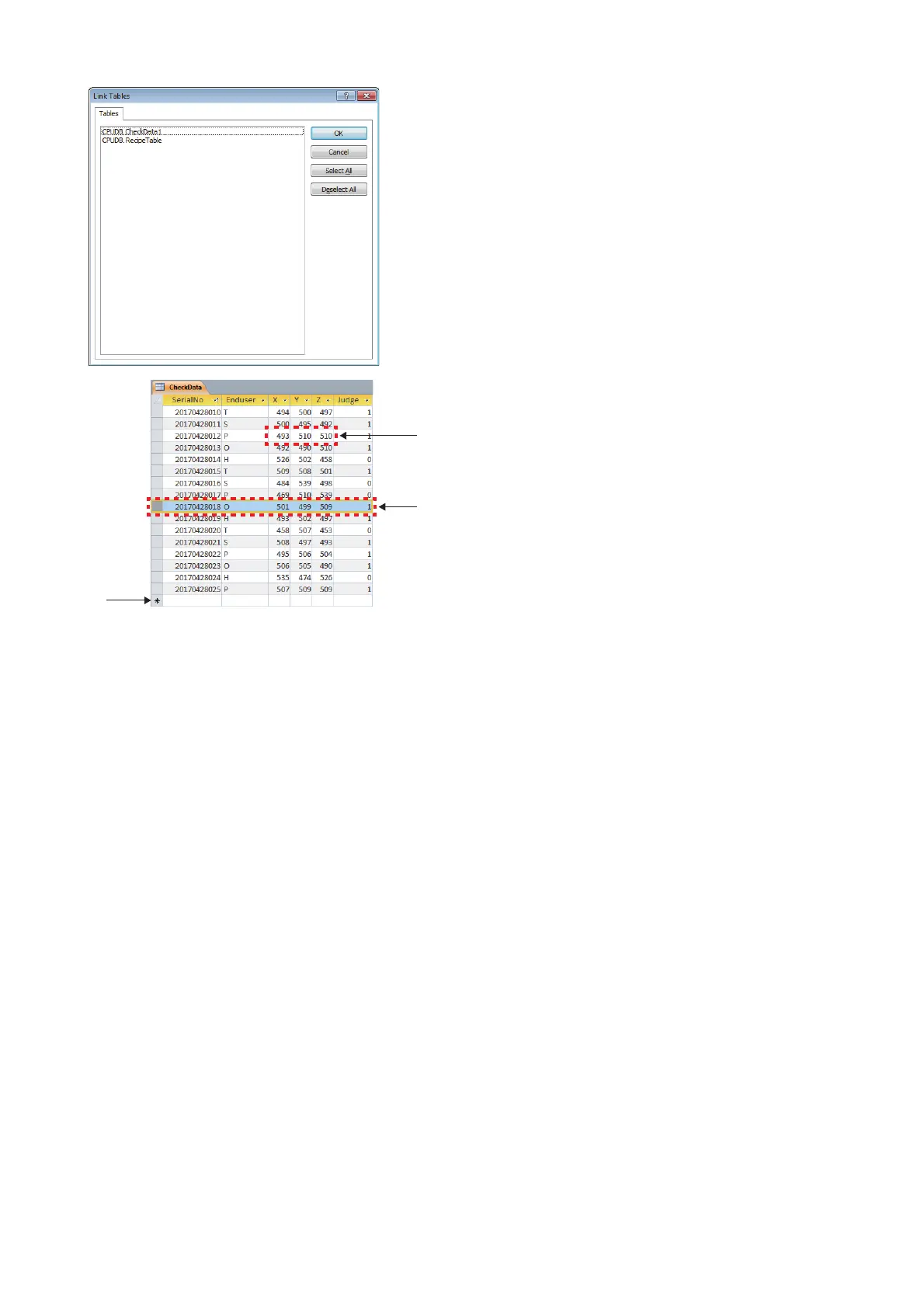

4. On the window for selecting table, select a table to be
operated and click the [OK] button to display the
contents of the table.
(1) Select a cell to change the value.
(2) Select a row to delete the record.
(3) Add a new record.
5. When the value is changed or the record is deleted, the
database of the CPU module is changed according to
the operation.
(3)
(2)
(1)
