21 DEVICES
21.2 Device Setting
331
21
*1 These are the maximum points that can be handled in the CPU module. The number of points actually used differs depending on the
module used.
*2 The default number of points is 16384 for the R120CPU, R120ENCPU, R120PCPU, and R120SFCPU.
*3 The device can be collected by using the CPU module where the SFC function can be used. ( Page 1008 Added and Enhanced
Functions)
*4 Can be used as a device comment in the SFC program.
*5 The default number of points for the R00CPU, R01CPU, and R02CPU are as follows.
 Input (X), Output (Y), Internal relay (M): 8K points
 Timer (T): 2K points
 Long timer (LT), Long counter (LC): 0 point
 Counter (C): 1K points
 Data register (D): 12K points
 SFC block device (BL): 128 points

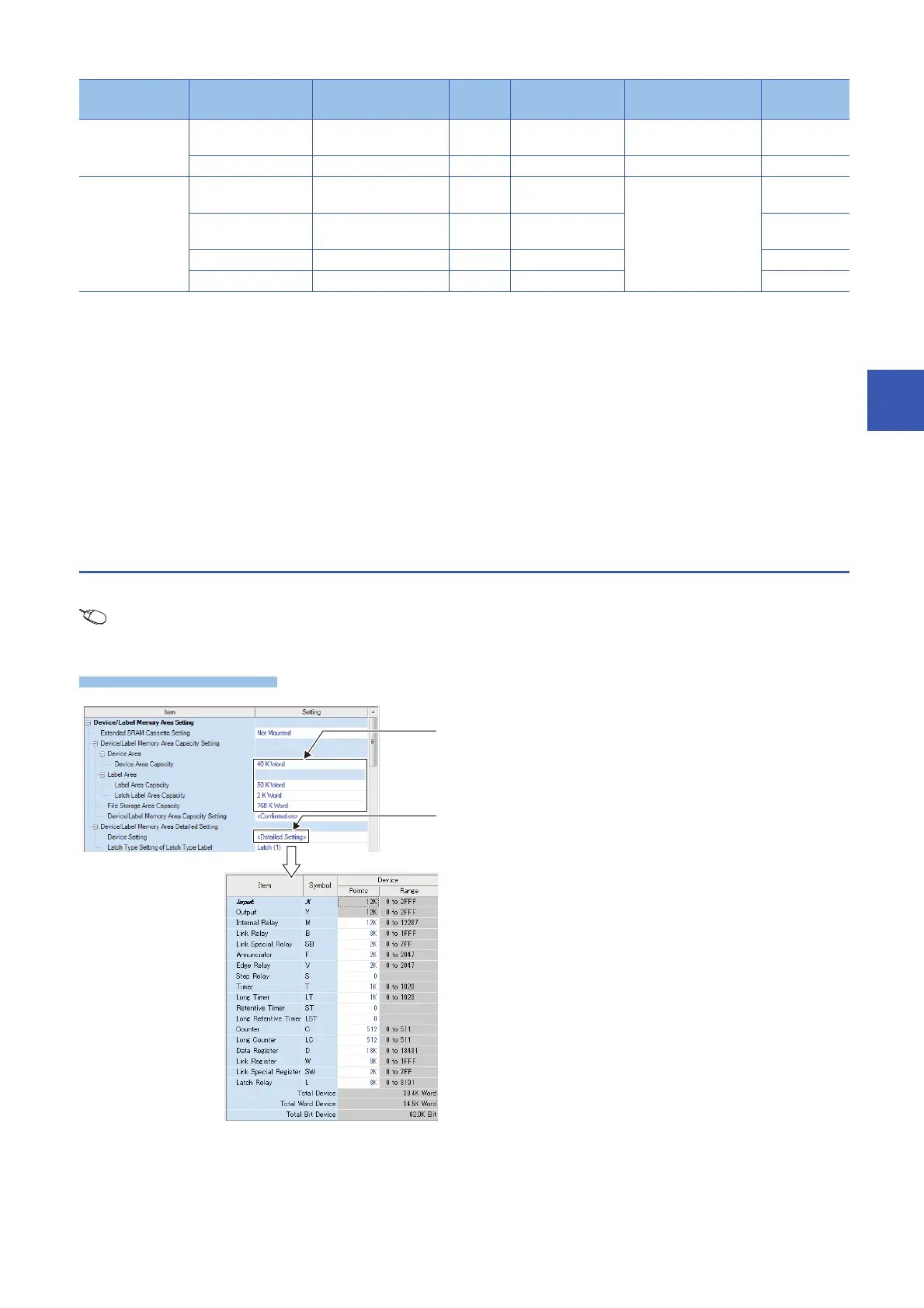

21.2 Device Setting
The number of points of each user device can be changed ( Page 333 User Device)
[CPU Parameter]  [Memory/Device Setting]  [Device/Label Memory Area Detailed Setting]  [Device Setting] 
[Detail Setting]
Window
Pointer  Pointer P 8192 points
*2
Changeable (Page
363 Pointer setting)
Decimal
 Interrupt pointer I 1024 points Unchangeable Decimal
Other devices  Network No. specification
device
J  Unchangeable Decimal
 I/O No. specification
device
U  Hexadecimal
 SFC block device
*3
BL 320 points
*5
Decimal
 SFC transition device
*3*4
TR 0 points Decimal
(1) The capacity of each area can be changed ( Page 95 Device/label memory area setting)
(2) The number of points of user devices can be changed
Classification Type Device name Symbol Number of points
of Default
Parameter-set range Notation
(1)
(2)
