22.5 Arrays
An array represents a consecutive aggregation of same data type labels as a single name.
Primitive data types and structures can be defined as arrays.
Ex.

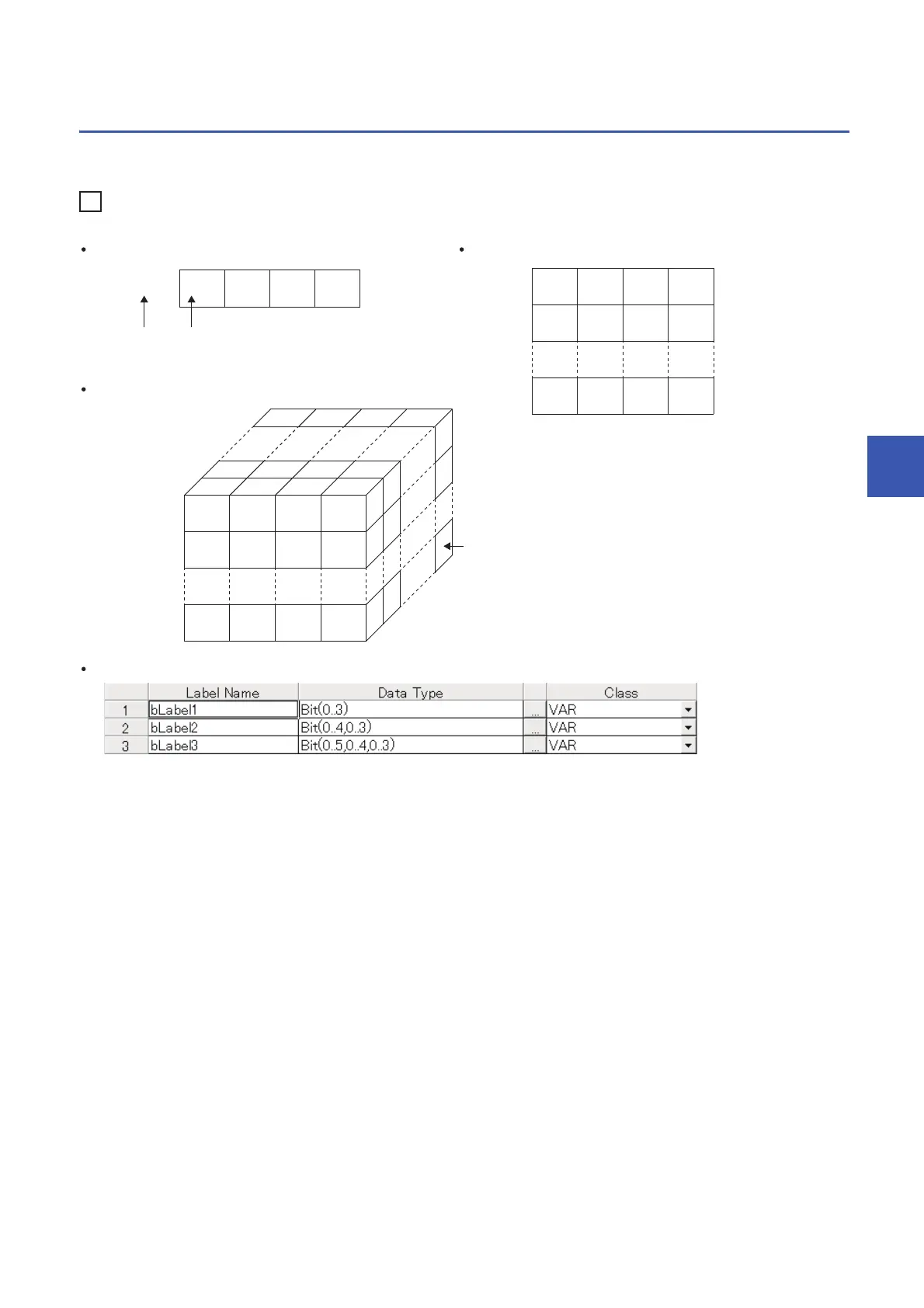

Array image and setting in engineering tool
bLabel3 [0,0,0] [0,0,1] [0,0,3]
[0,1,0] [0,1,1]
[0,4,0] [0,4,3]
[0,0,2]
[0,1,2] [0,1,3]
[0,4,1] [0,4,2]
[1,0,0] [1,0,1] [1,0,3][1,0,2]
bLabel1 [0] [1] [3][2]
bLabel2 [0,0] [0,1] [0,3]
[1,0] [1,1]
[4,0] [4,3]
[0,2]
[1,2] [1,3]
[4,1] [4,2]
[5,0,0] [5,0,1] [5,0,3][5,0,2]
[5,4,3]
Label name Index
One-dimensional array (The number of elements is 4.) Two-dimensional array (The number of elements is 5 × 4.)
Three-dimensional array (The number of elements is 6 × 5 × 4.)
Settings in the engineering tool
