17.4 Configuring the Boot Setting
227
17
17.4 Configuring the Boot Setting
Configure the necessary settings for the boot operation.

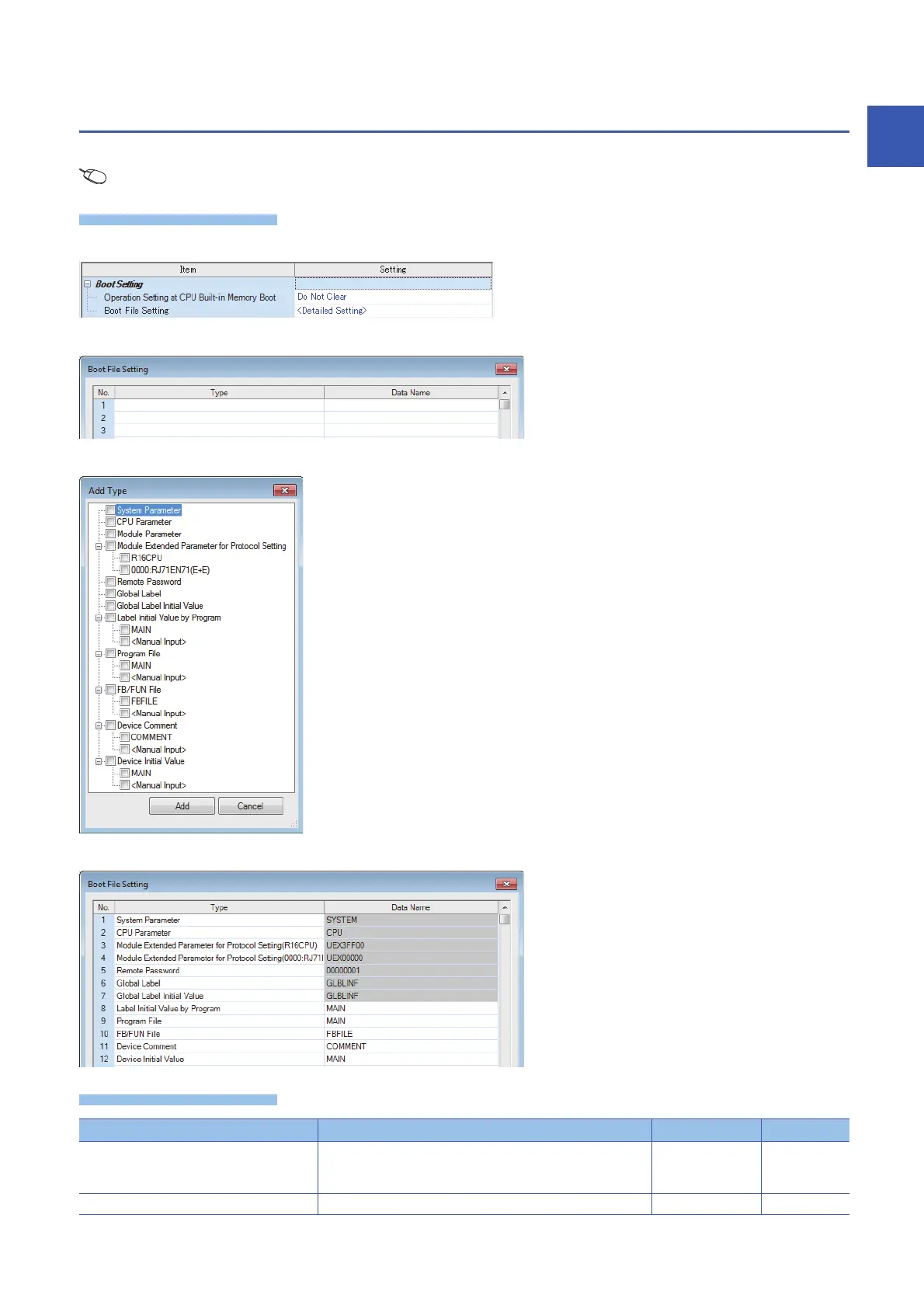

[Memory Card Parameters]  [Boot Setting]
Operating procedure
Displayed items
"Boot Setting" window
1. Click "Detailed Setting" on the "Boot File
Setting" window.
"Boot File Setting" window
2. Click the "Type" column. The maximum
number of boot files that can be specified is
the same as the number of files that can be
stored in the storage memory.
"Add Type" window
3. Select type for the boot file. (Multiple
selection is possible.)
"Boot File Setting" window
4. Set the data name (file name).
Item Description Setting range Default
Operation Setting at CPU Built-in Memory Boot Sets whether or not to clear the CPU built-in memory (program
memory and data memory) upon file transfer from the SD memory
card.
• Do Not Clear
• Clear
Do Not Clear
Boot File Setting Sets the file used for boot operation from the SD memory card. 
