106

1 FUNCTIONS

1.6 Communications Using the Random Access Buffer

Example of communications with random access buffer

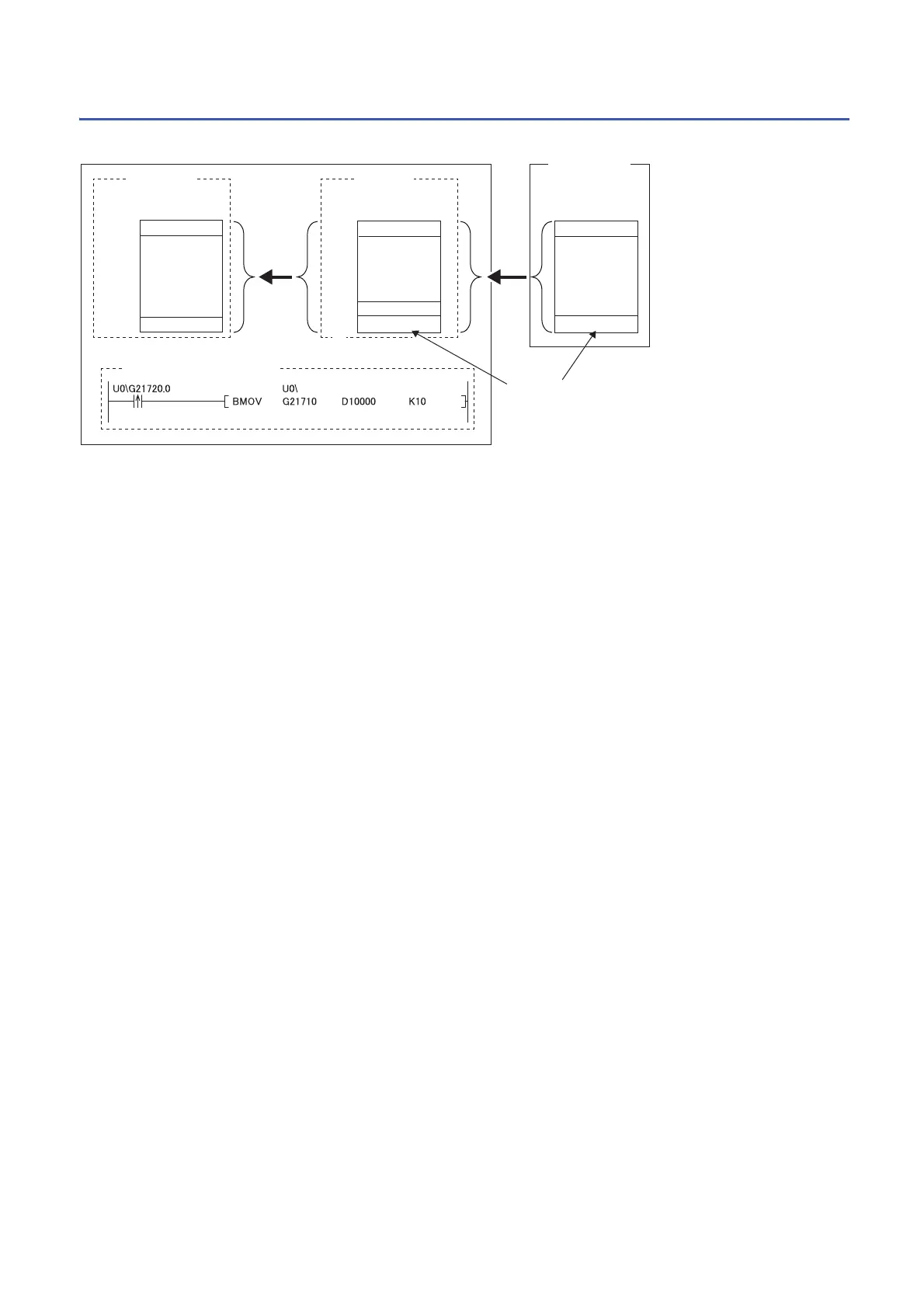

The following figure shows an example of the write operation from the external device.

 The receive completion flag is set at the end of the received data.

 The receive completion flag is monitored.

 When the receive completion flag turns on, the data is transferred from the random access buffer to the CPU module.

ÒÓ

D10000

D10009

21710

21719

21720

RJ71EN71

Data received

Device memory

Random access buffer

CPU module

External device

Receive completion flag

Program for receive processing
