Mitsubishi FX1S Series Hardware Manual

FX1S Series Programmable Controllers Terminal Layouts 2
2-1
1
2
3
4
5
6
7
2. Terminal Layouts
The following selection of terminal layouts are taken from the FX
1S
product range.
Note: All layouts are schematic only and are intended to aid in the creation of wiring diagrams.
2.1 FX
1S
-**MR-ES/UL

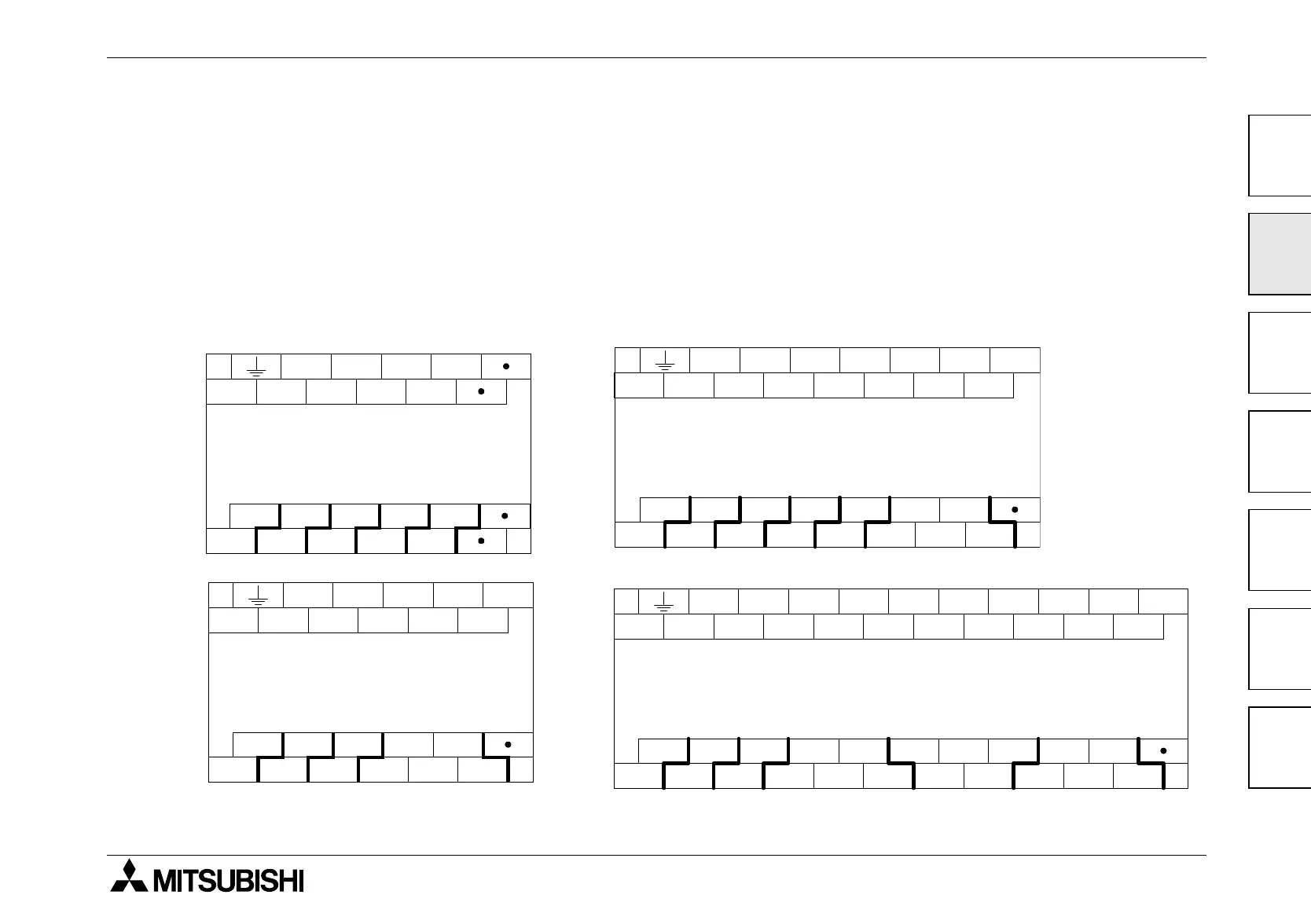

Figure 2.1: Terminal Layouts, Relay Outputs, AC Power
S/S
X1
N X0 X4 X6
FX
1S
-20MR-ES/UL
X5 X7
0V Y0 Y1 Y2 Y3
X3
X2
24V
COM0 COM1 COM3 COM4COM2
L
X11 X13
X10 X12
Y5
Y6
Y7
Y4
S/S S/S
N
S/S
X2 X4
FX
1S
-30MR-ES/UL
X3 X5
0V Y0 Y1 Y2 Y4
X1
X0
24V
COM0 COM1
Y3 Y5
COM2
L
X7 X11
X6
X13 X15
X12X10 X14 X16
X17
Y6
Y7 Y11
Y10
Y14Y12
Y13
COM4
Y15
COM3
S/S X1
N X0 X4
FX
1S
-10MR-ES/UL
X5
0V
Y0 Y1 Y2 Y3
X3
X2
24V
COM0 COM1 COM3COM2
L
S/S X1
N X0 X4 X6
FX
1S
-14MR-ES/UL
X5 X7
0V Y0 Y1 Y2 Y4
X3
X2
24V
COM0 COM1
Y3 Y5
COM2
L

Mitsubishi FX1S Series Specifications

General

Model	FX1S Series
I/O Points	10 to 30 points
Program Memory	2000 steps
Power Supply	AC
Communication	RS-422
Expansion	No expansion
Programming Language	Ladder Logic
Input Voltage	100-240V AC
Built-in High-Speed Counter	Up to 60 kHz (single-phase)
Weight	Approx. 0.3 kg
Dimensions	90 x 60 x 75 mm
