Mitsubishi FX1S Series Hardware Manual

FX1S Series Programmable Controllers Outputs 6
6-5
1
2
3
4
5
6
7
6.3.1 Response Times
OFF times increase as the load current decreases.
For improved response times use a 'dummy' resistor, see Figure 6.4. If a response time of 0.5
ms or better is required when using 'light loads' use a 'dummy' resistor and ensure the signal
line has a current greater than 60mA/24V DC.

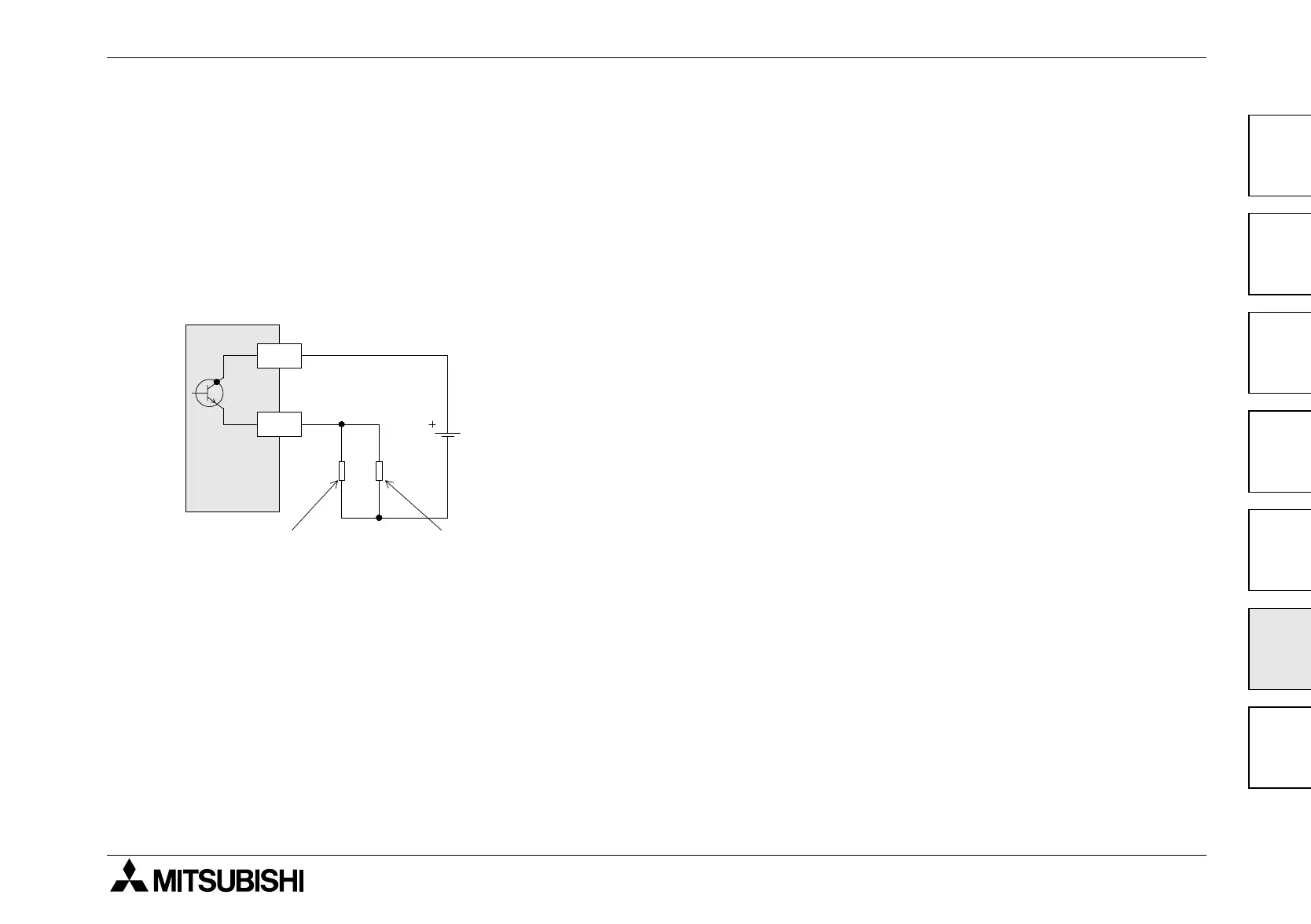

Figure 6.4: Dummy load
Y000 and Y001 are high speed response outputs with
the following characteristics:
10 - 100 mA at 5 - 24V DC, 100 kHz maximum output
signal.
If the high speed response is required, a current of 10 -
100mA must be used.
5 to 24V
Y
+V
Dummy load Load

Mitsubishi FX1S Series Specifications

General

Model	FX1S Series
I/O Points	10 to 30 points
Program Memory	2000 steps
Power Supply	AC
Communication	RS-422
Expansion	No expansion
Programming Language	Ladder Logic
Input Voltage	100-240V AC
Built-in High-Speed Counter	Up to 60 kHz (single-phase)
Weight	Approx. 0.3 kg
Dimensions	90 x 60 x 75 mm
