Mitsubishi FX1S Series Hardware Manual

FX1S Series Programmable Controllers Installation Notes 3
3-5
1
2
3
4
5
6
7
3.4 PLC Mounting Arrangements
To prevent a rise in temperature, mount the units to walls. Never mount them to the floor or
ceiling of an enclosure.

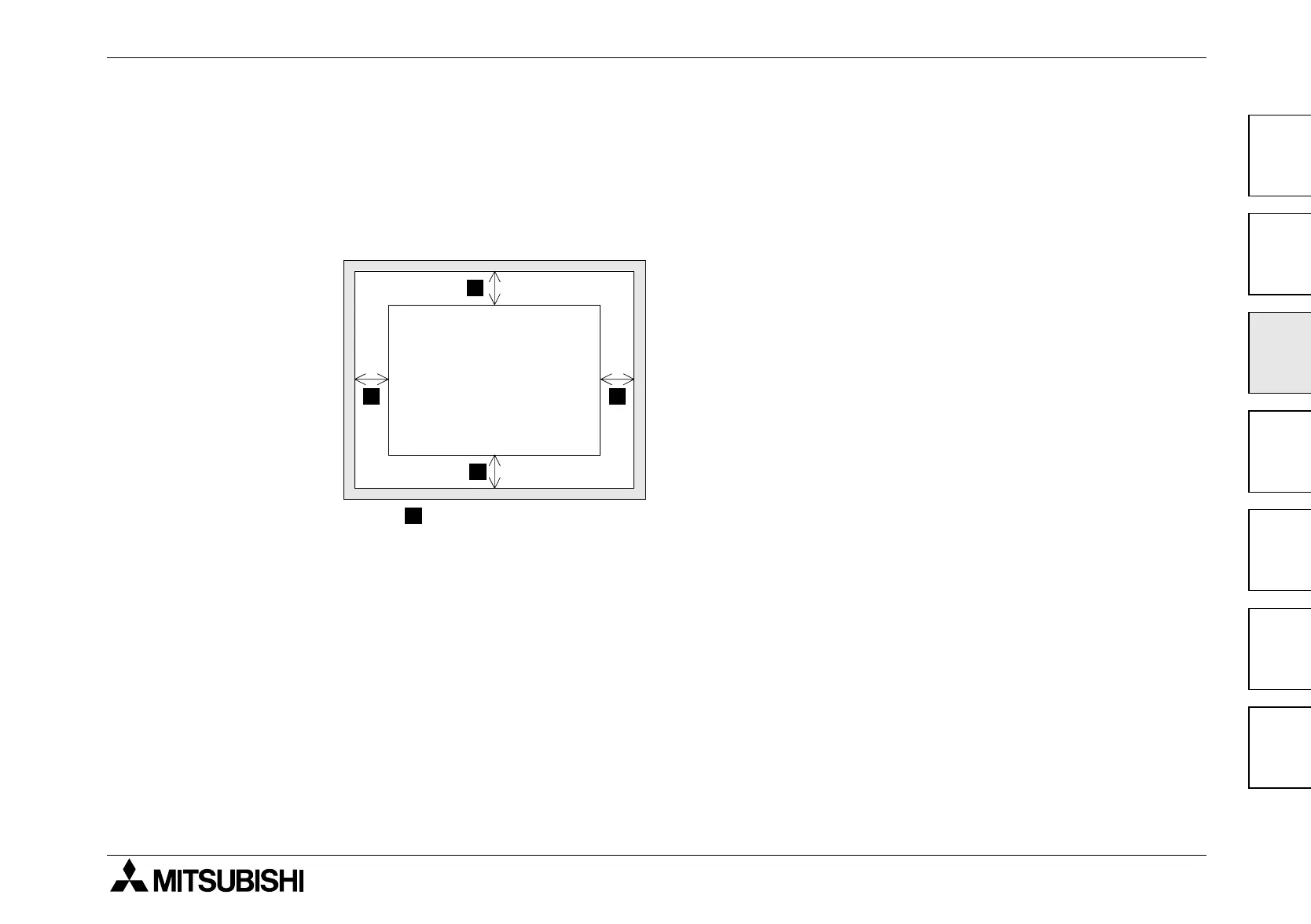

Figure 3.3: PLC Mounting Diagram
FX
1S
CPU
A
A
AA
> 50mm(1.97 inches)
A

Mitsubishi FX1S Series Specifications

General

Model	FX1S Series
I/O Points	10 to 30 points
Program Memory	2000 steps
Power Supply	AC
Communication	RS-422
Expansion	No expansion
Programming Language	Ladder Logic
Input Voltage	100-240V AC
Built-in High-Speed Counter	Up to 60 kHz (single-phase)
Weight	Approx. 0.3 kg
Dimensions	90 x 60 x 75 mm
