Mitsubishi FX1S Series Hardware Manual

FX1S Series Programmable Controllers Inputs 5
5-2
5.2 Wiring Diagrams
5.2.1 Input Wiring

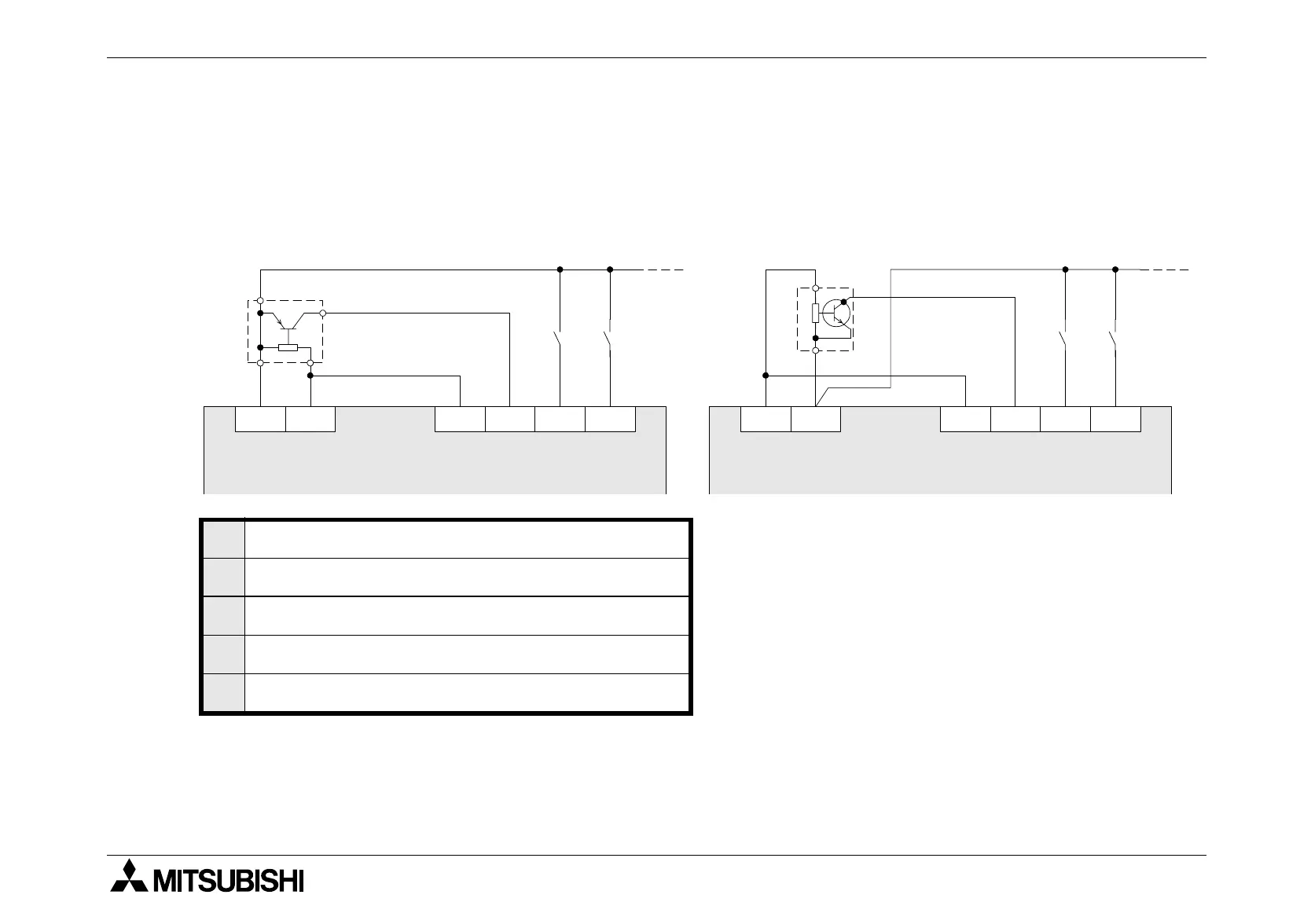

Figure 5.1: Input Wiring Diagrams
➊
24V DC Service Supply
➋
PNP Sensor
➌
NPN Sensor
➍
Input Device Contact
➎
FX
1S
Controller Main Body
24V 0V S/S X0 X1 X2
NPN
FX
1S
-**M*-ES/UL, ESS/UL
➊
➌
➍
➎
FX
1S
-SinkFX
1S
-Source
24V 0V S/S X0 X1 X2
PNP
FX
1S
-**M*-ES/UL, ESS/UL
➊
➍
➌
➋

Mitsubishi FX1S Series Specifications

General

Model	FX1S Series
I/O Points	10 to 30 points
Program Memory	2000 steps
Power Supply	AC
Communication	RS-422
Expansion	No expansion
Programming Language	Ladder Logic
Input Voltage	100-240V AC
Built-in High-Speed Counter	Up to 60 kHz (single-phase)
Weight	Approx. 0.3 kg
Dimensions	90 x 60 x 75 mm
