4.5 Power Supply Wiring

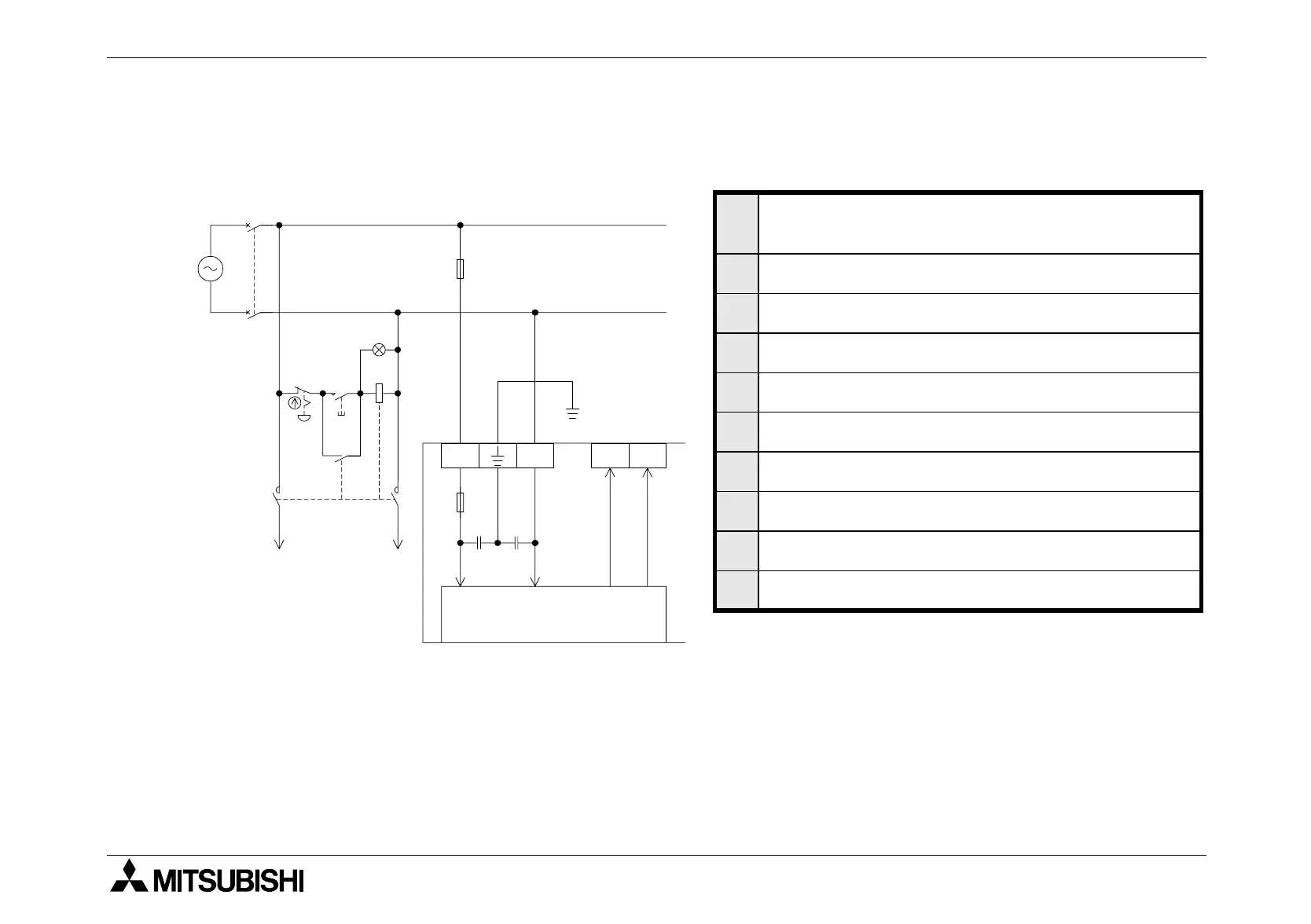

Figure 4.1: AC Power Supply Example Wiring
➊
➌➍
➎
➏
➐
➑
➒
➋
➓
MC
L 24VN 0V
AC/DC
Converter
24+ 24-
➏
100-240
V AC
50/60 Hz
➊
Power supply 100 - 240V AC, +10% -15%,
50/60 Hz
➋
Circuit protector or Fuse
➌
Emergency stop
➍
Power supply switch
➎
Power ON pilot indicator
➏
Power supply for loads
➐
Grounding resistor 100
Ω
or less
➑
Fuse
➒
Main unit
➓
Breaker

Mitsubishi FX1S Series Specifications

General

Model	FX1S Series
I/O Points	10 to 30 points
Program Memory	2000 steps
Power Supply	AC
Communication	RS-422
Expansion	No expansion
Programming Language	Ladder Logic
Input Voltage	100-240V AC
Built-in High-Speed Counter	Up to 60 kHz (single-phase)
Weight	Approx. 0.3 kg
Dimensions	90 x 60 x 75 mm
