FX1S Series Programmable Controllers Power Supply 4
4-5
1
2
3
4
5
6
7

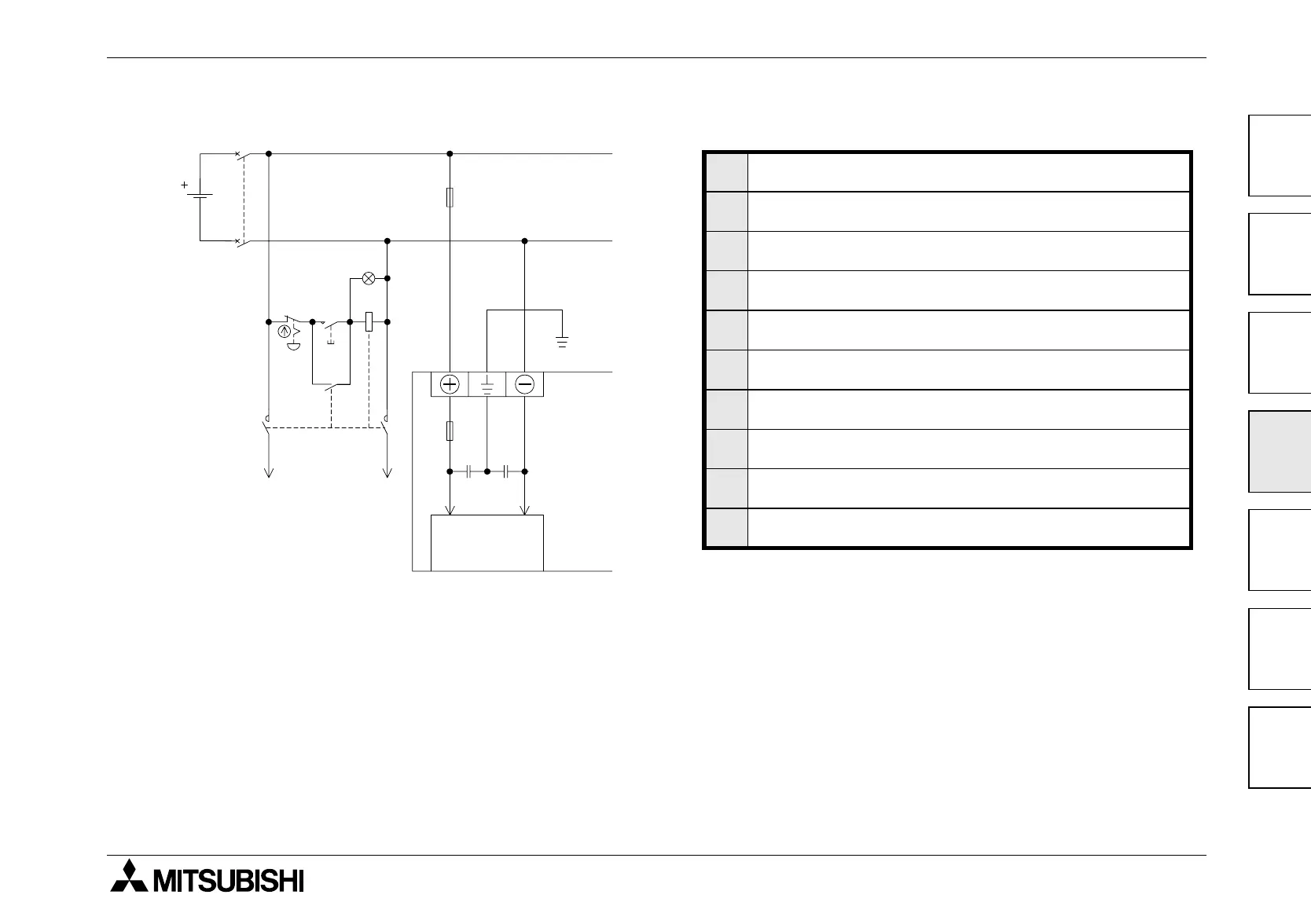

Figure 4.2: DC Power Supply Example Wiring
➊
➐
➑
➒
➋
➓
DC/DC
Converter
24V DC
➌➍
➎
➏
MC
➏
➊
Power supply 24V DC, +10% -15%
➋
Circuit protector or Fuse
➌
Emergency stop
➍
Power supply switch
➎
Power ON pilot indicator
➏
Power supply for loads
➐
Grounding resistor 100
Ω
or less
➑
Fuse
➒
Main unit
➓
Breaker
