FX1S Series Programmable Controllers Outputs 6
6-2
6.2 Relay Output Example

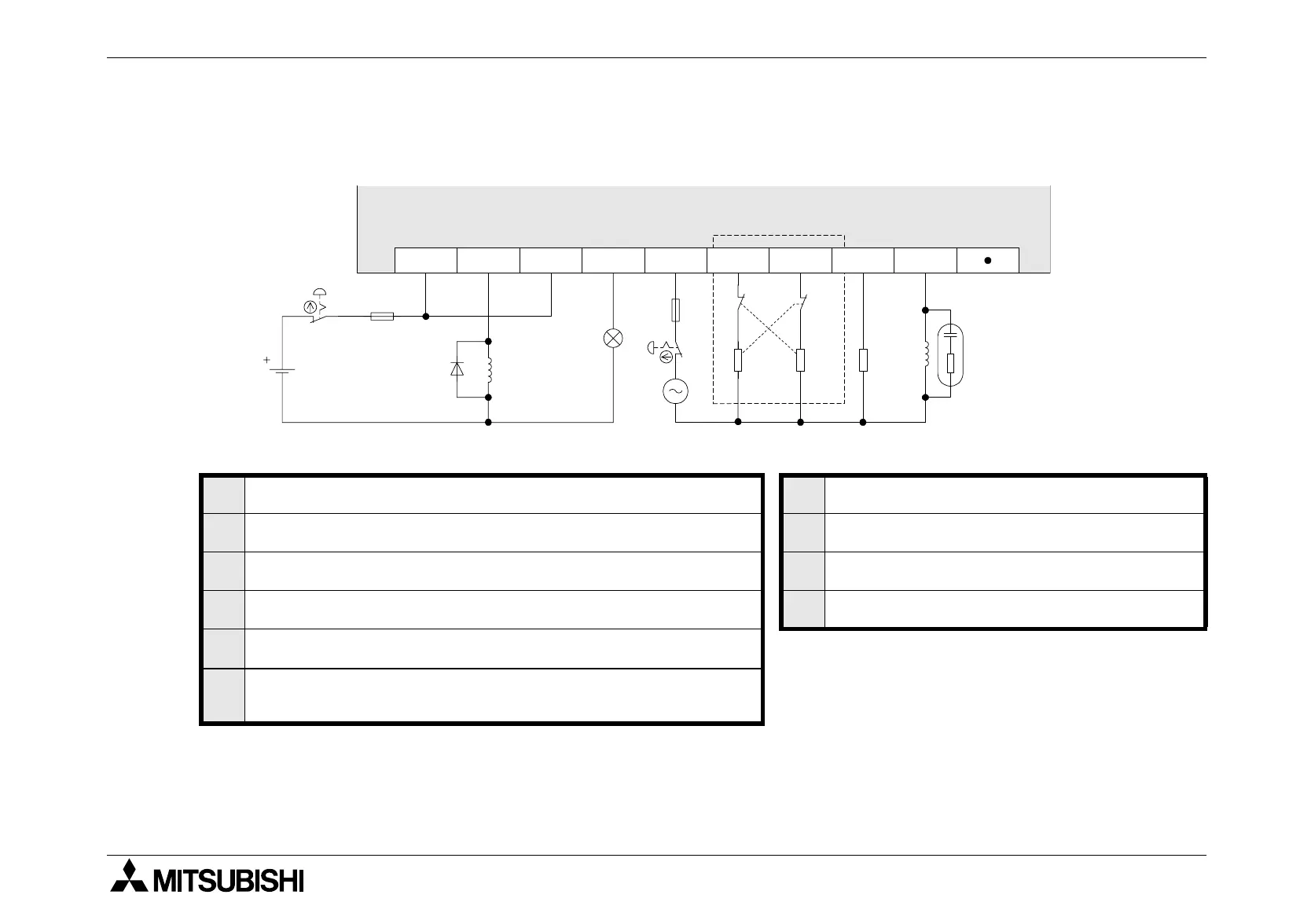

Figure 6.1: Typical Relay Wiring Diagram
➊
Do not use this terminal
➐
Inductive load
➋
Fuse
➑
Incandescent Lamp
➌
Reverse-current protection diode (See section 6.4)
➒
DC Power Supply
➍
External Mechanical Interlock
➓
AC Power Supply
➎
Emergency Stop
➏
Surge abxorber (0.1µF capacitor + 100-120Ω resistor)
(See section 6.4)
MC2
MC1
COM0
MC2MC1
➒
➌
➋
➑
➋
➍
Y0 COM1 Y1 COM2 Y2 Y3 Y4 Y5
➎
➎
➓
➏
➊
➐
➐
