Mitsubishi FX1S Series Hardware Manual

FX1S Series Programmable Controllers Installation Notes 3
3-14
3.8.2 FX
1N
-5DM Display Module

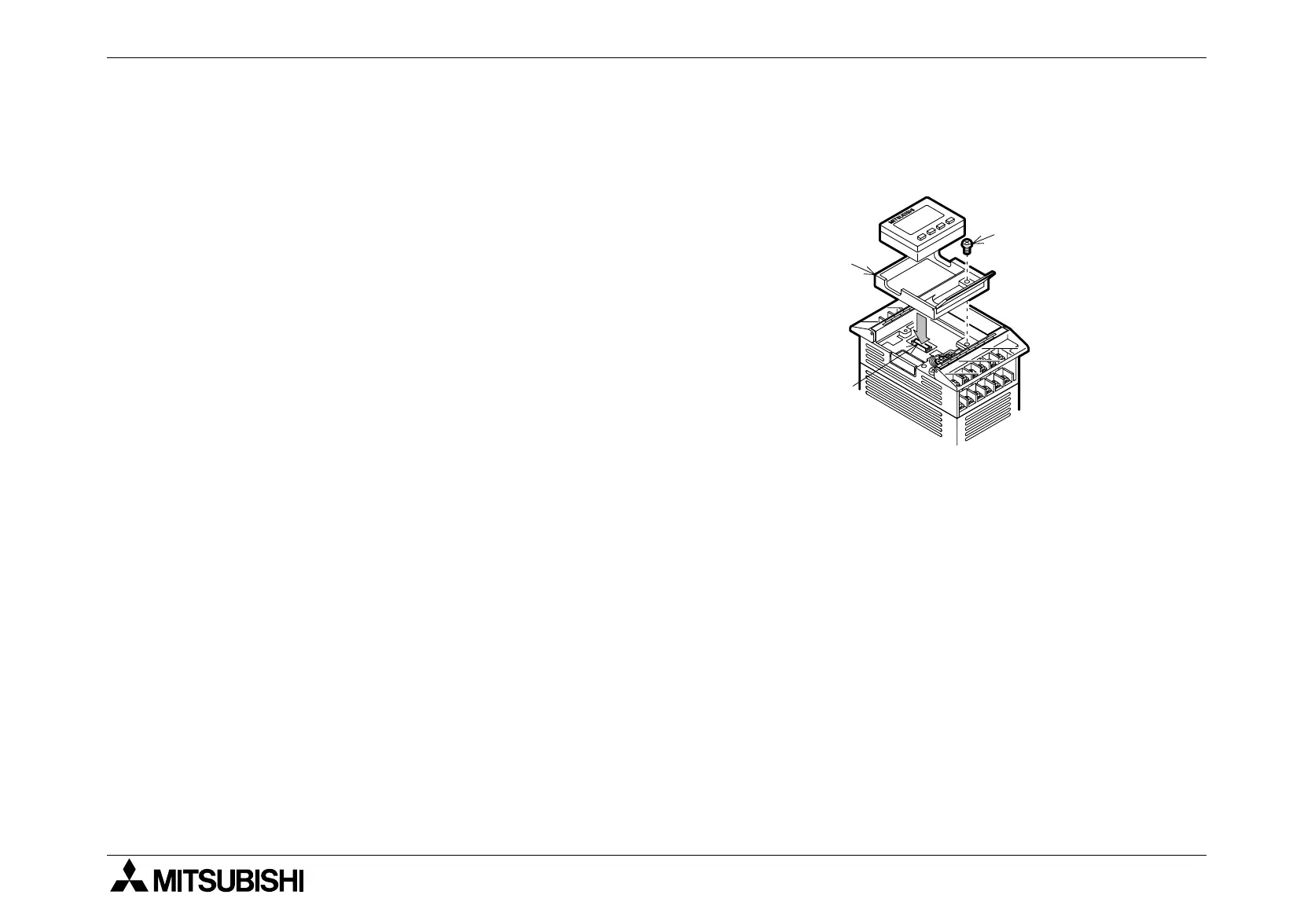

Always make sure the power is turned off, before installing the 5DM.
A) Top cover for DM
B) Optional equipment connector.
C) M3 screw to secure top cover.
• Remove the base unit top cover.
• Attach the top cover for DM A), and
secure with screw C) (if 5DM is to be
permanently mounted)
• Plug in the 5DM at connector B)
For further information please refer to the FX
1N
-5DM user’s manual.
B)
A)
C)

Mitsubishi FX1S Series Specifications

General

Model	FX1S Series
I/O Points	10 to 30 points
Program Memory	2000 steps
Power Supply	AC
Communication	RS-422
Expansion	No expansion
Programming Language	Ladder Logic
Input Voltage	100-240V AC
Built-in High-Speed Counter	Up to 60 kHz (single-phase)
Weight	Approx. 0.3 kg
Dimensions	90 x 60 x 75 mm
