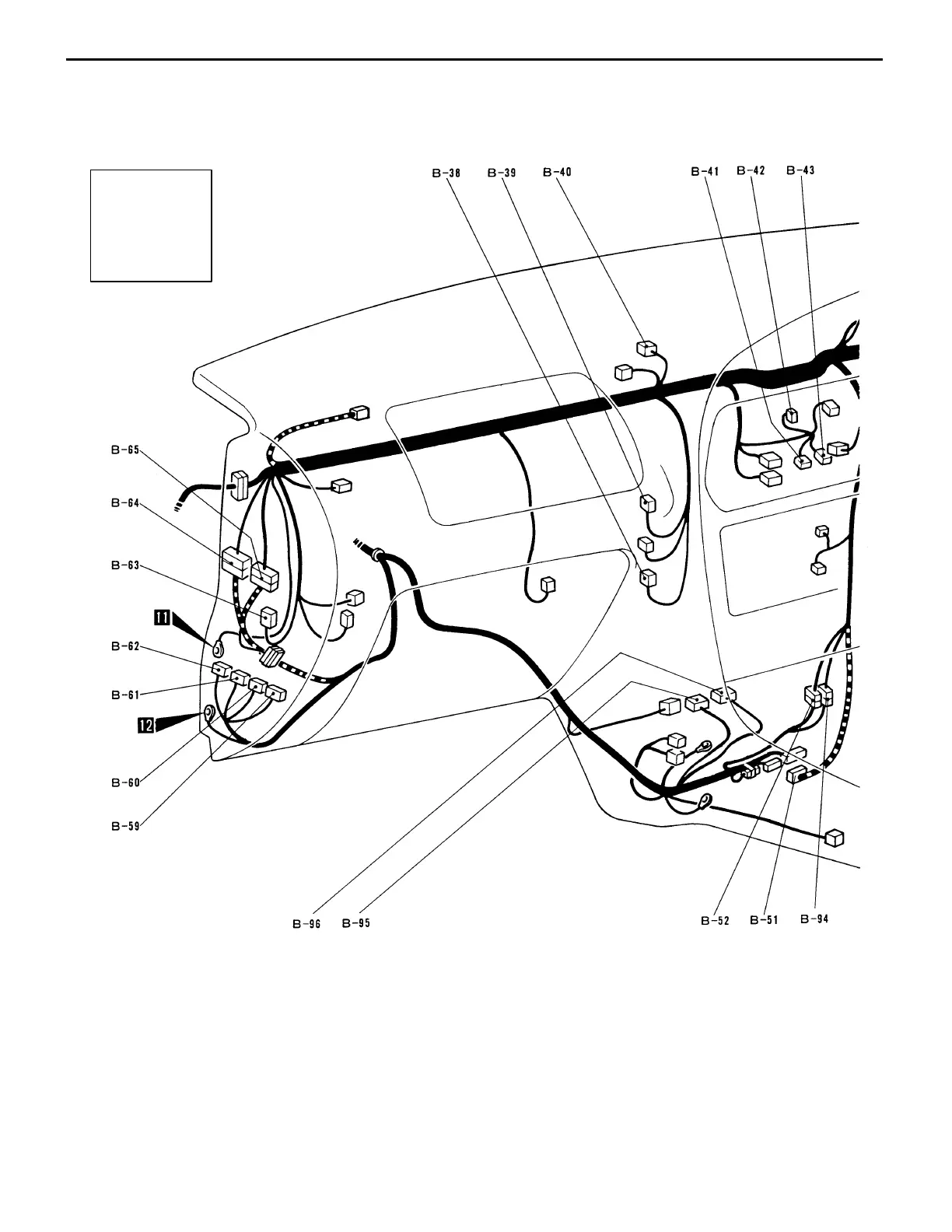

– Dash Panel
WIRING HARNESS
CONFIGURATION DIAGRAMS
Connector
symbol
–38
thru
–65
and
–94
thru
–97
B
B-8
B-38 (2) Sunlight sensor <vehicles with fully
automatic air conditioner>
B-39 (6) Air mix damper motor and potentiometer
<vehicles with fully automatic air condi-
tioner>
B-40 (3) Automatic compressor ECU
<vehicles with manual air conditioner>
B-41 (8) A/C switch
<vehicles with manual air conditioner>
B-42 (2) Blower switch illumination lamp <vehicles
with heater or manual air conditioner>
B-43 (6-B) Defogger switch <vehicles with heater or
manual air conditioner>
B-44 (6) Body harness and roof harness combina-
tion <vehicles with sunroof>
B-45 (2-B) Diode (for keyless entry system circuit)
B-46 (2) Spare connector for fog lamp switch
<vehicles without fog lamp>
B-48 (14) Jumper connector (2)
B-49 (14) Jumper connector (3)
B-50 (14-L) Jumper connector (4)
B-51 (21-Y) SRS-ECU
To Next Page
