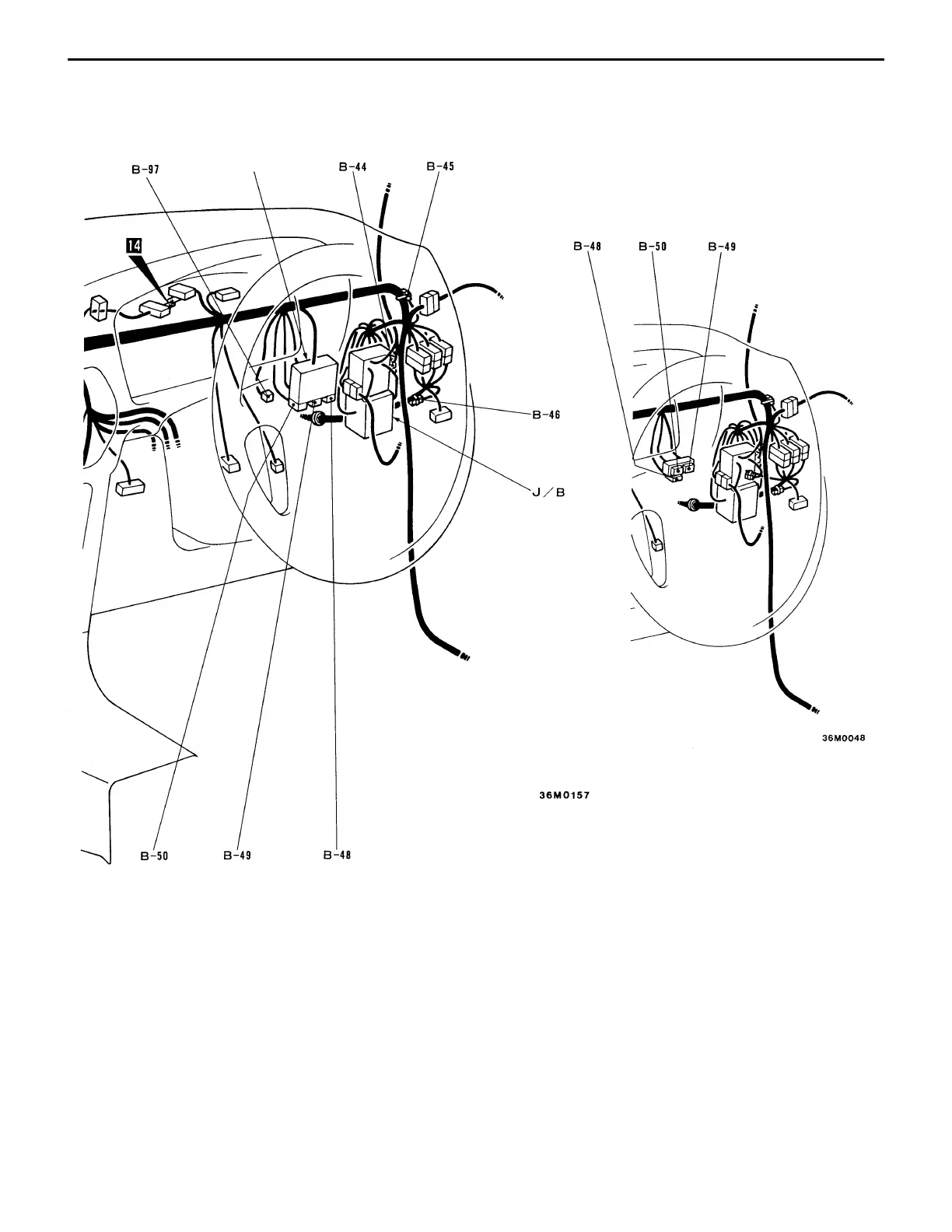

– Dash Panel
WIRING HARNESS
CONFIGURATION DIAGRAMS
Interior relay box
<Vehicles without interior relay box>
B-9
B-52 (16-B) Control harness and body harness
combination <vehicles with ABS>
B-59 (26-Y) Engine-ECU
B-60 (16-Y) Engine-ECU
B-61 (12-Y) Engine-ECU
B-62 (22-Y) Engine-ECU
B-63 (2) Blower motor <vehicles with heater or
manual air conditioner>
B-64 (13) Control harness and body harness
combination
B-65 (16-B) Control harness and body harness
combination
B-94 (13) Control harness and body harness
combination <vehicles with AYC>
B-95 (26-Y) AYC-ECU
B-96 (16) AYC-ECU
B-97 (2) Foot lamp
