Mitsubishi MELFA RV-6S Series User Manual

3-74 Options
3Controller

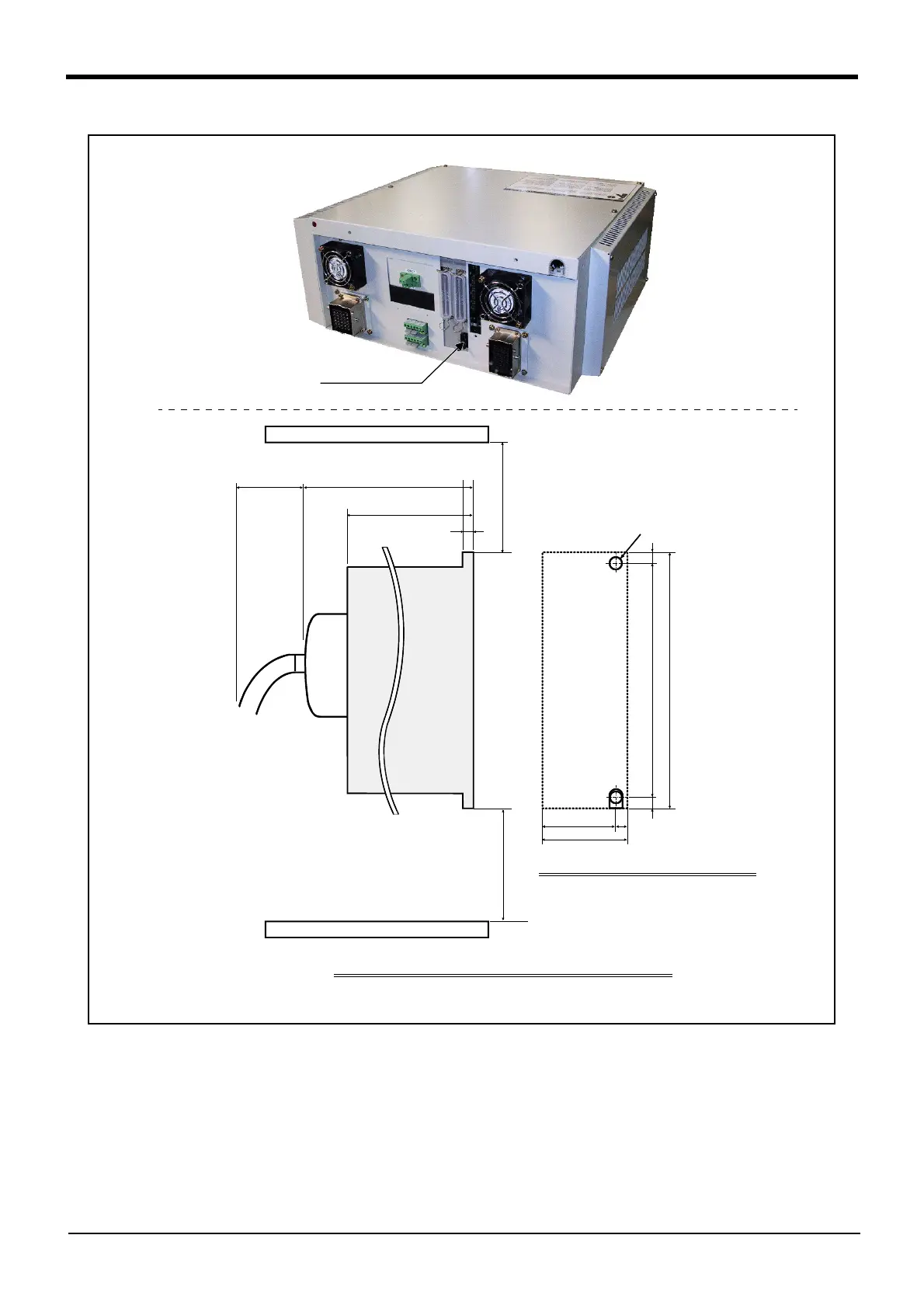

Fig.3-27 ： Installing the parallel input/output unit (CR2B-574 controller)
Control panel installation dimensions
60
54 6
Radiation/wiring space
150
6
156
2-Ｍ５ screw
6
168
Heat radiation space
128
(175)
100
upside
Wiring
space
(40)
downside
<2A-RZ361>
<2A-RZ371>
Installation dimensions of 2A-RZ361/2A-RZ371
6
RIO1 connector
(The controller outside installation.）
