3 SPECIFICATIONS
3.4 Concept of Remote Input/Output
This section explains the I/O signals for the AJ65SBT-CLB module.

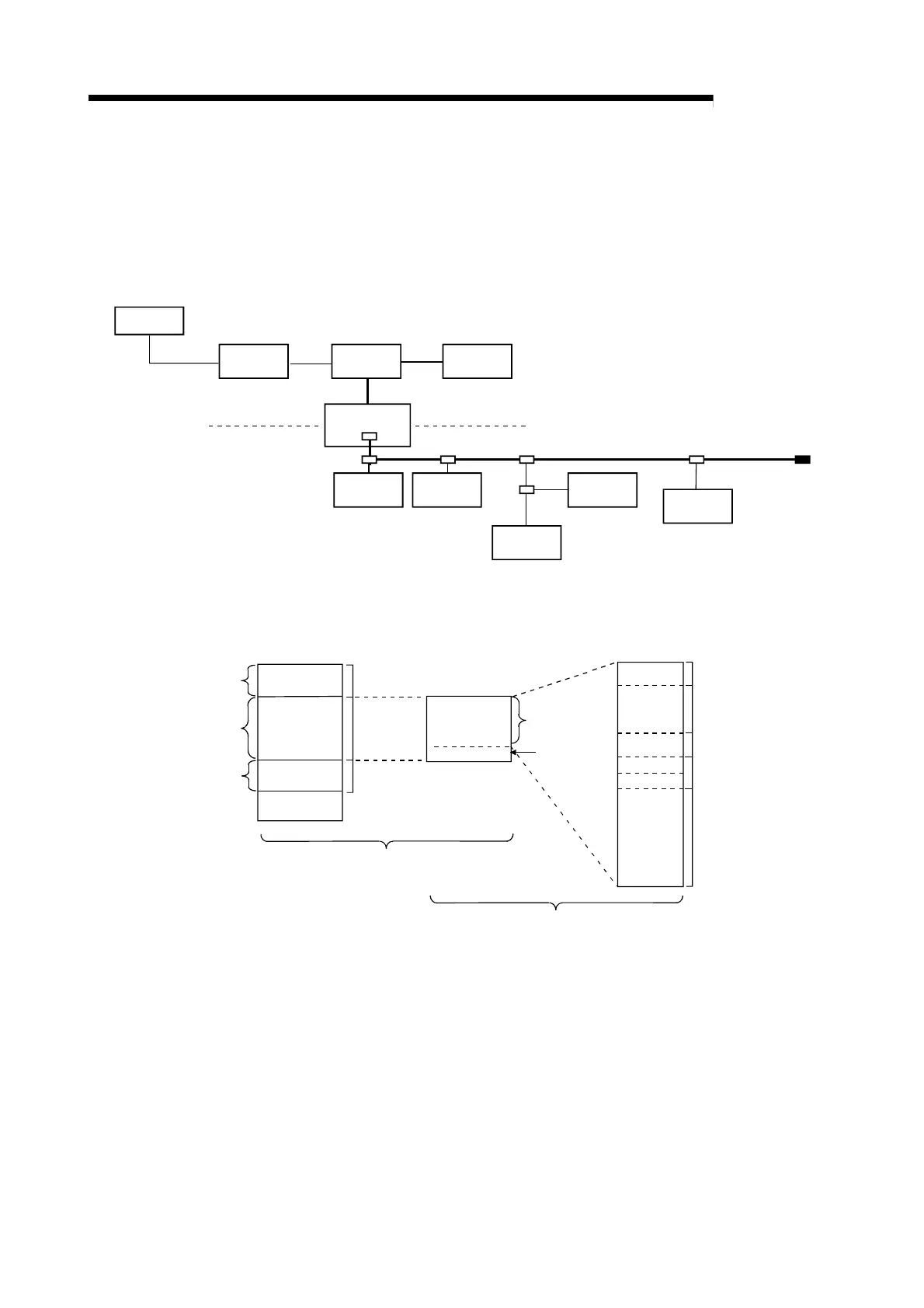

Example: The following provides an example of setting the AJ65SBT-CLB to 2
occupied stations and 4-point mode.
RX0F to RX00
RX1F to RX10
RX2F to RX20
RX3F to RX30
RX4F to RX40
RX5F to RX50
RX6F to RX60
RX7F to RX70
RX7FF to RX7F0
AJ65SBT-CLB
RX2F to RX20
RX3F to RX30
RX4F to RX40
RX5F to RX50
Master
station
Station 1
1 station
occupied
Station 2
2 stations
occupied
Station 3
1 station
occupied
CC-Link side
CC-Link/LT side
AJ65SBT-CLB
Station 1
4 input
points
Station 2
8 input
points
Station 3
4 output
points
Station 4
2 output
points
Station 5
16 input
points
CL1X4-D1B2 CL2X8-D1B2
CL1Y2-T1D2S
CL1Y4-T1B2
CL2X16-D1M1V
CC-Link master station
Remote input
Station 1
Station 2
Station 3
1 station
2 station
1 station
Section 3.5.1 to Section 3.5.3
48 points
System area,
16 points
CC-Link/LT side
1) 4 points
2) 8 points
3) 4 points
4) 2 points
Empty,2 points
5) 16 points
1 station
2 stations
1 station
1 station
4 stations
Section 3.5.4
to
