6 TROUBLESHOOTING
6.7 CC-Link / CC-Link/LT Diagnostics Using GX Developer
After connecting all the modules with connection cables, check the status of each
module to see if data link can be performed.
Data link can also be performed when the master module is mounted on the remote
I/O station of MELSECNET/H.

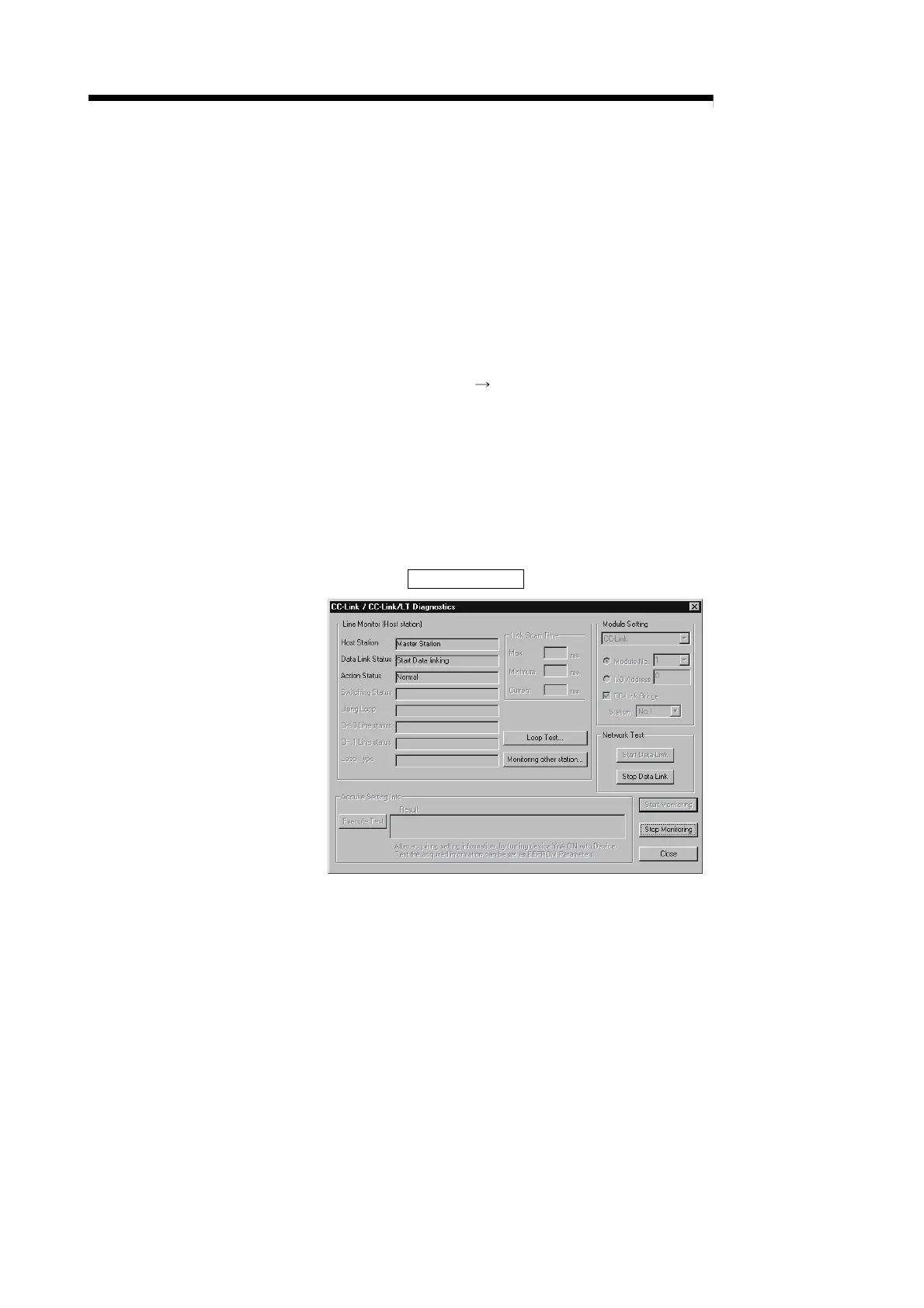

(1) Line Monitor [Host station]
The data link status, etc. of the AJ65SBT-CLB are monitored.
(a) Operation procedure
Choose [Diagnostics] [CC-Link / CC-link/LT diagnostics].
1) In "Module Setting" box, select "CC-Link"
2) In the "Module No." or "I/O Address" box, specify the master module
connected with the AJ65SBT-CLB for which Line Monitor will be
executed.
3) Check the "CC-Link Bridge" check box. At this time, the station number
of the AJ65SBT-CLB is searched for.
4) In the "Station" box, select the station number of the AJ65SBT-CLB for
which Line Monitor will be executed.
5) Click the Start Monitoring button.
(b) Monitor items
1) Host Station
Shows that the station being monitored is the AJ65SBT-CLB. (The
AJ65SBT-CLB is displayed as the master station.)
2) Data Link Status
Shows the data link status of the AJ65SBT-CLB.
Start Data linking: Data link start status
Stop Data linking: Data link stop status
Initial comm. incomplete: Initial communication incomplete status
To Next Page
