Mitsubishi Melsec-A AJ65SBT - 4.5.1 How to connect dedicated flat cable connector

4 - 9 4 - 9
MELSEC-
A
4 PROCEDURE UP TO DATA LINK
4.5.1 How to connect dedicated flat cable connector
This section explains the connection method of the connector for the dedicated flat
cable.
(1) Components
The components are as follows:

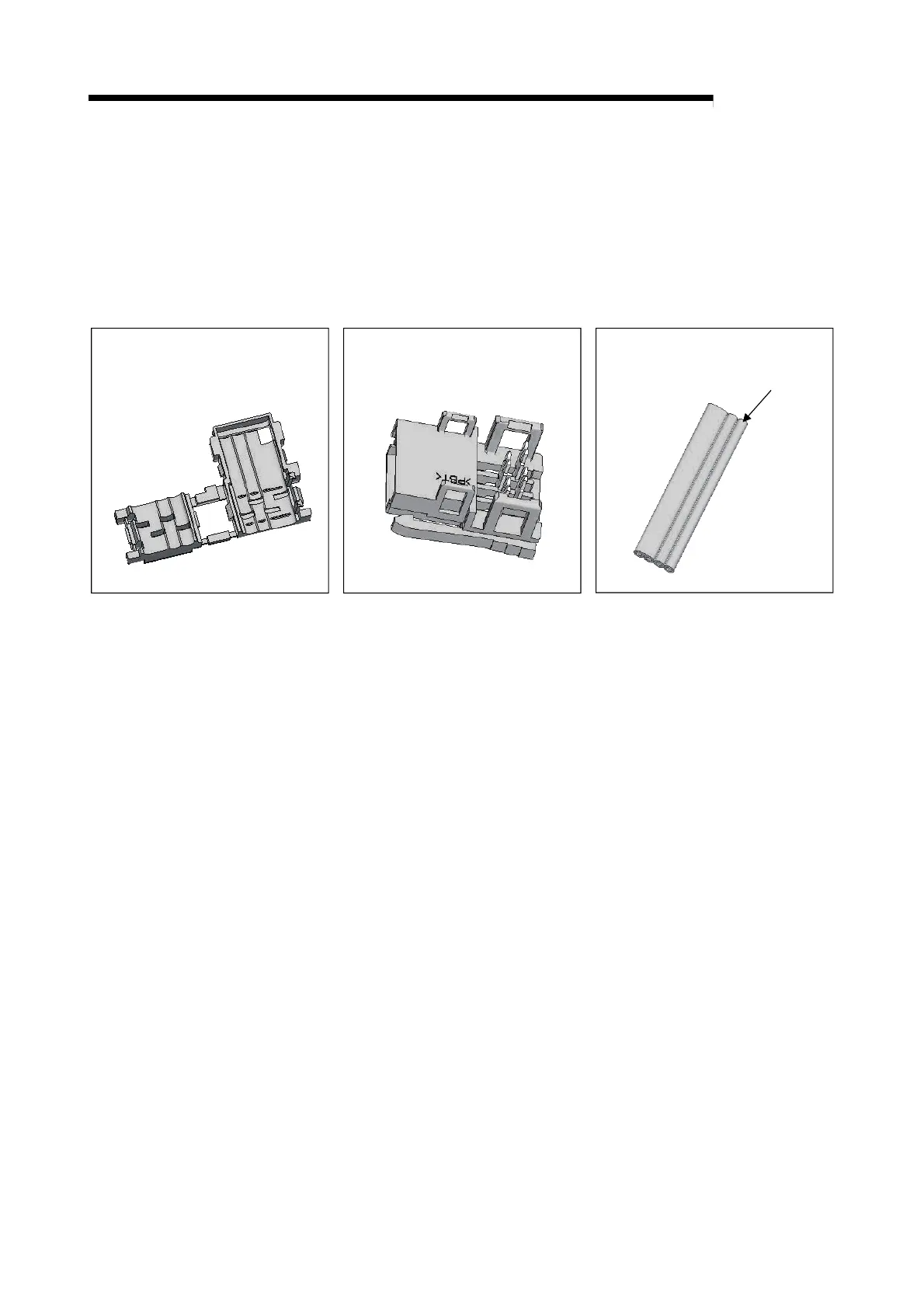

Component 3: Dedicated flat cableComponent 2: BodyComponent 1: Cover
Orange
