5 PROGRAMMING
5.4 Program Example for Use of ACPU/QCPU (A Mode) (Dedicated Instructions)
The network parameters and auto refresh parameters are set using a sequence
program.

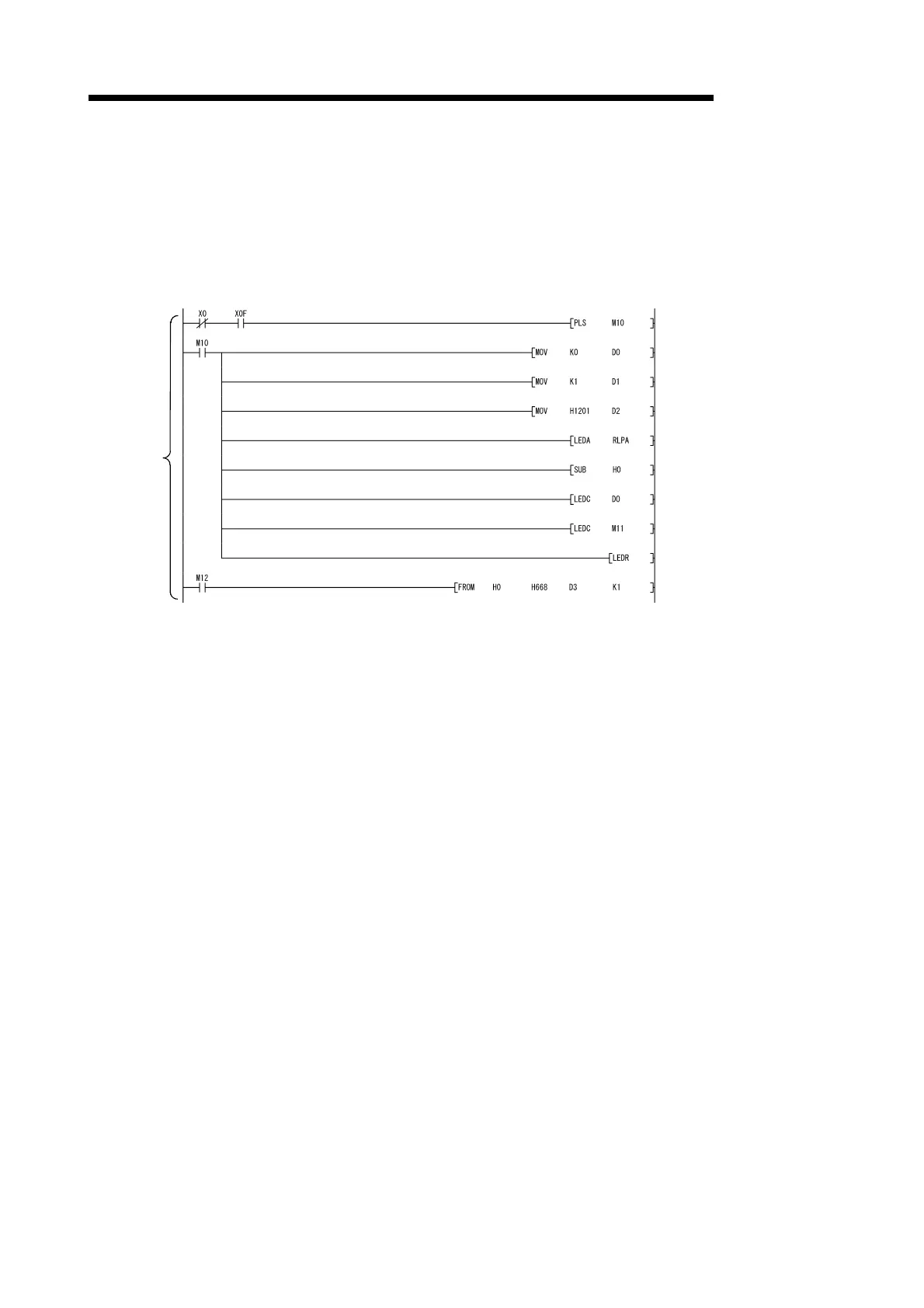

(1) Program example
Network
parameter
setting with
dedicated
instruction
RLPA
Synchronous mode disable
Number of connected modules: 1
Station data of AJ65SBT-CLB
(remote device station, 2
occupied stations, Station No. 1)
Dedicated instruction (RLPA)
Head I/O number of master
module
Parameter storage head
device
Device that turns on one
scan at completion
Parameter status read at
abnormal completion
