5 - 11 5 - 11
MELSEC-A
5 PROGRAMMING
5.5 Program Example for Use of ACPU/QCPU (A Mode) (FROM/TO Instructions)
The network parameters are set using a sequence program.

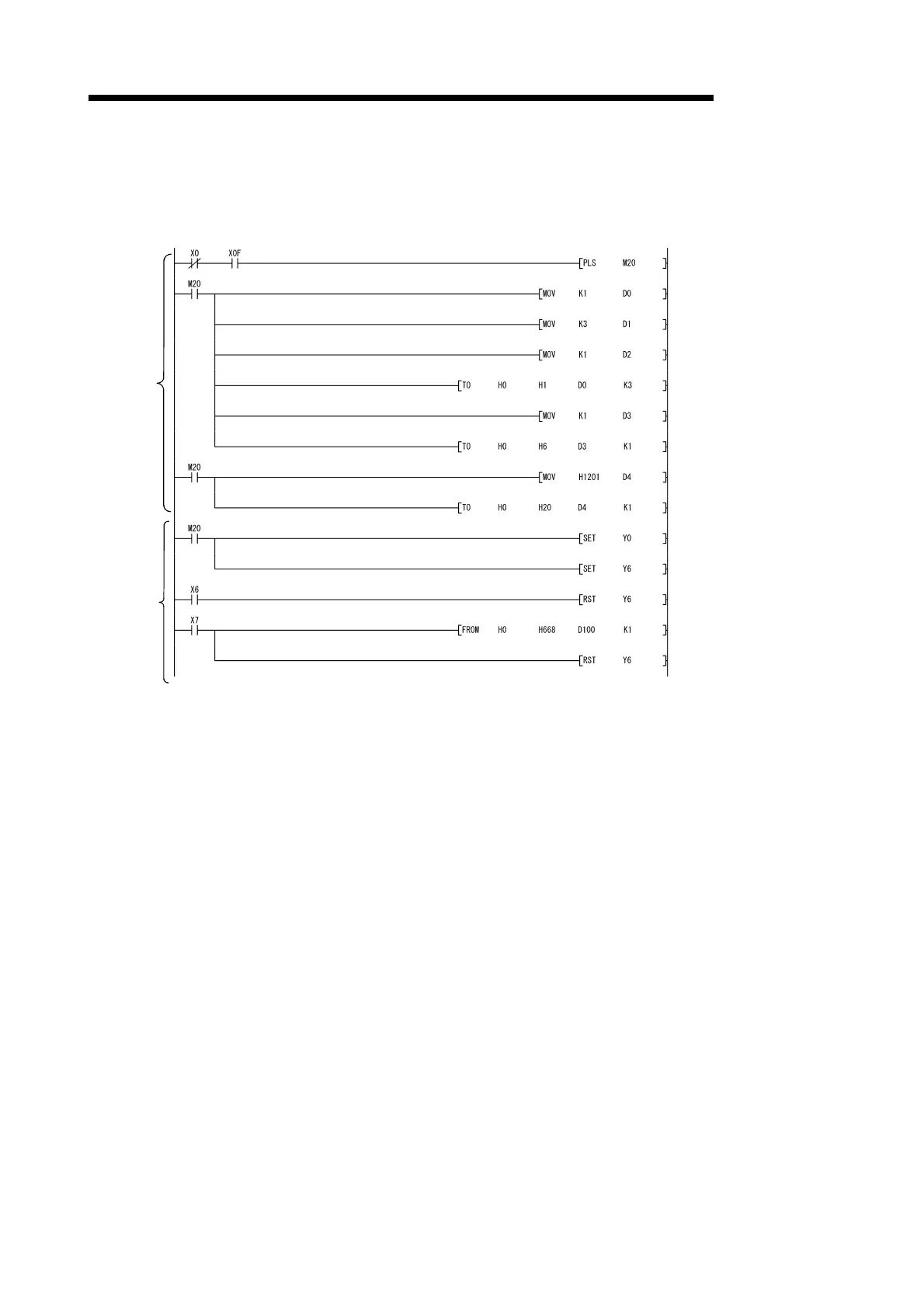

(1) Program example
Network
parameter
setting
Data link start
Number of connected
modules: 1
Number of retries: 3 times
Number of modules that return
to system automatically: 1
Write to master station
Station data of AJ65SBT-CLB
(remote device station, 2
occupied stations, Station No. 1)
Write to master station
Refresh instruction
Data link start according to
parameters in buffer memory
Turns off start request signal at
start-up abnormal completion.
Operation specified when CPU
becomes faulty: Continue
Write to master station
Parameter status read at
start-up abnormal completion
Turns off start request signal at
start-up normal completion.
