6 TROUBLESHOOTING
3) Action Status
Shows the operating status of the AJ65SBT-CLB.
Normal: Data links of all stations are normal.
Data linking error: There are one or more data link error
stations.
All the station abnormality: All remote stations are abnormal.
Remote I/O error: There are one or more remote I/O error
stations.
Station out of control range: A remote station is connected after the
last refresh station.
SW changed during operation: Any switch position was changed during
operation.
Hardware error: An error occurred during a self-loopback
test (refer to Section 6.8).

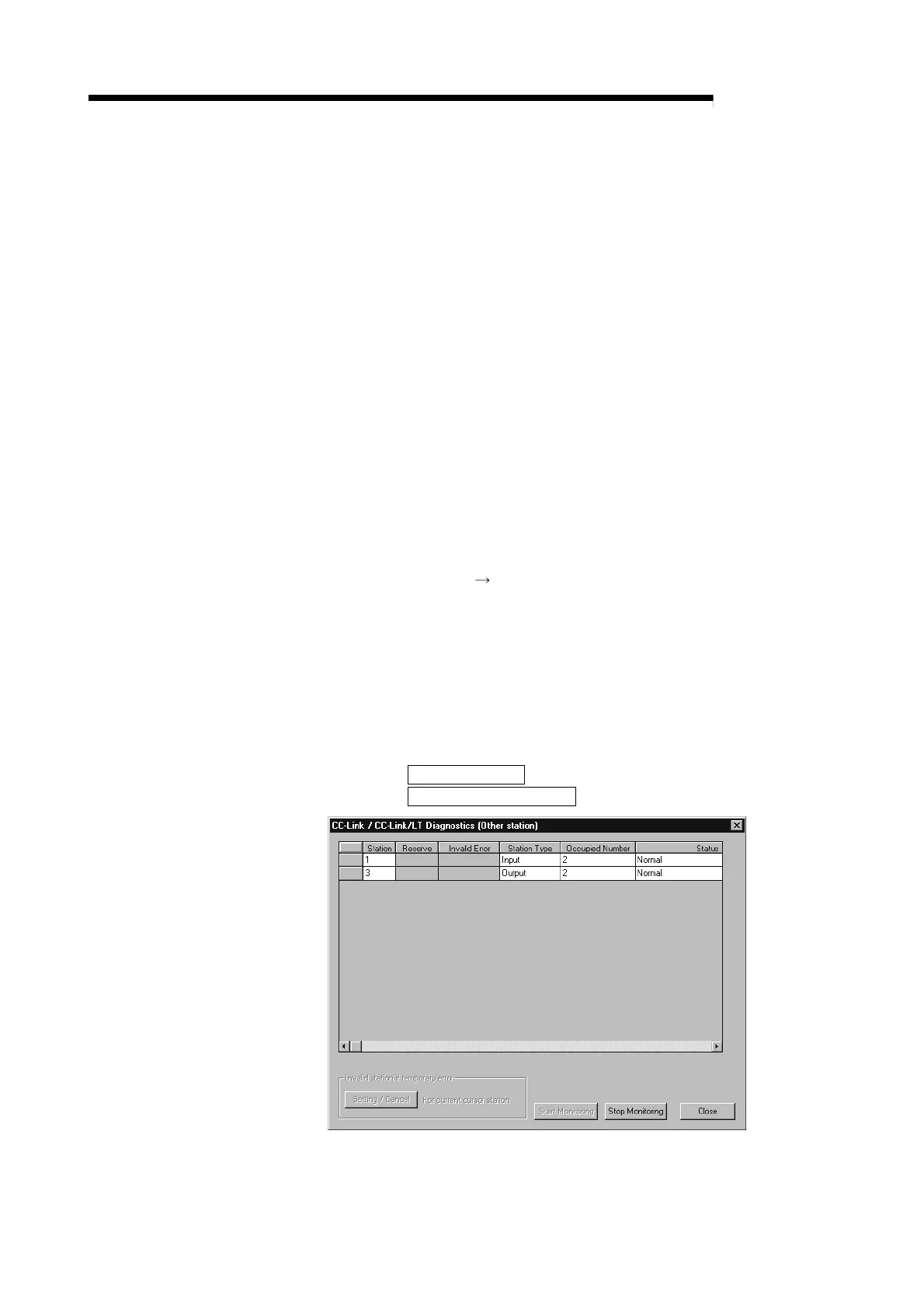

(2) Monitoring Other Station
The data link statuses, etc. of the CC-Link/LT remote stations connected to the
AJ65SBT-CLB are monitored.
(a) Operation procedure
Choose [Diagnostics] [CC-Link / CC-link/LT diagnostics].
1) In "Module Setting" box, select "CC-Link"
2) In the "Module No." or "I/O Address" box, specify the master module
connected with the AJ65SBT-CLB for which Monitoring Other Station will
be executed.
3) Check the "CC-Link Bridge" check box. At this time, the station number
of the AJ65SBT-CLB is searched for.
4) In the "Station" box, select the station number of the AJ65SBT-CLB for
which Monitoring Other Station will be executed.
5) Click the Start Monitoring button.
6) Click the Monitoring other station button.
To Next Page
