10.2 Module Installation
10.2.2 Instructions for mounting the base unit
10
LOADING AND INSTALLATION
(3) Installation surface
Mount the base unit on a flat surface. If the mounting surface is not even, this may
strain the printed circuit boards and cause malfunctions.
(4) Installation of unit in an area where the other devices are installed
Avoid mounting base unit in proximity to vibration sources such as large magnetic
contractors and no-fuse circuit breakers; mount these on a separate panel or at a
distance.
(5) Distances from the other devices
In order to avoid the effects of radiated noise and heat, provide the clearances
indicated below between the PLC and devices that generate noise or heat (contactors
and relays).
• Required clearance in front of PLC : at least 100 mm
(3.94 inch)
*
• Required clearance on the right and left of PLC : at least 50 mm
(1.97 inch).

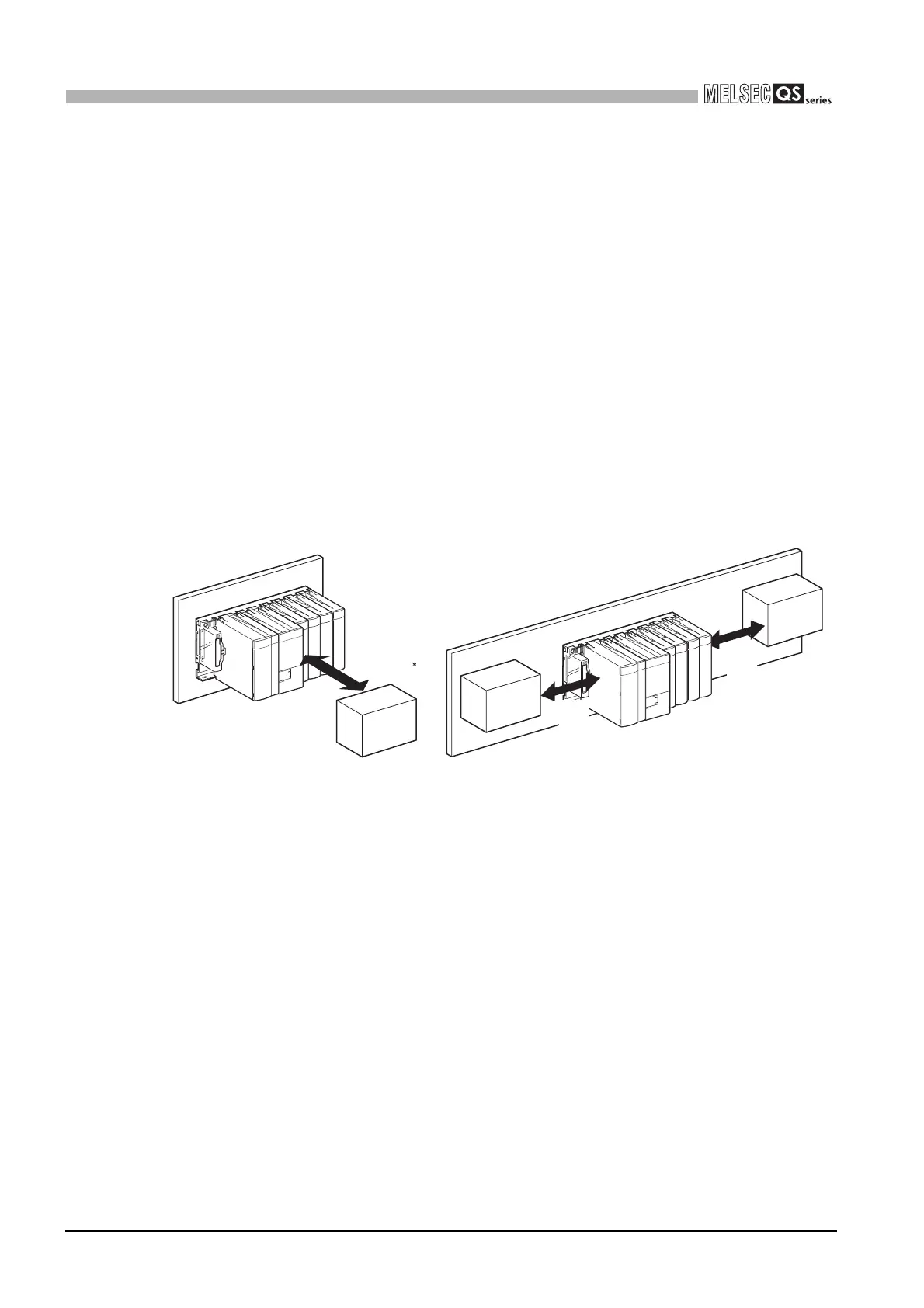

Figure 10.16 Distances from the other devices
At least
100mm
(3.94 inch)
Contactor, relay, etc.
At least
50mm (1.97 inch)
At least
50mm (1.97 inch)

Mitsubishi MELSEC Specifications

General

Category	Programmable Logic Controller (PLC)
Manufacturer	Mitsubishi Electric
Series	MELSEC
Programming Languages	Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST), Instruction List (IL), Sequential Function Chart (SFC)
Communication Protocols	Ethernet, CC-Link, RS-232, RS-485, USB, Profibus, Modbus
Model Series	FX, Q, L, iQ-R, iQ-F
Input Voltage	100-240V AC, 24V DC (varies by model)
Memory Capacity	Varies widely depending on the CPU module and series. Ranges from kilobytes to megabytes.
I/O Points	16 to 8192 points (varies by model)
Communication Ports	Ethernet, RS-232, RS-485, USB (varies by model)
Programming Software	GX Works2, GX Works3, GX Developer
Operating Temperature	0°C to 55°C
Storage Temperature	-25°C to 75°C
Humidity	5% to 95% (non-condensing)
Vibration Resistance	10 to 57Hz, 0.075mm amplitude; 57 to 150Hz, 9.8m/s² acceleration
Shock Resistance	147m/s², 3 times in each direction (X, Y, Z)
Protection Class	IP20 (varies by model)
CPU Processing Speed	0.02μs to 0.1μs per instruction (varies by model)
