4 - 20 4 - 20
MELSEC-Q
4 SETUP AND PROCEDURES BEFORE STARTING THE OPERATION

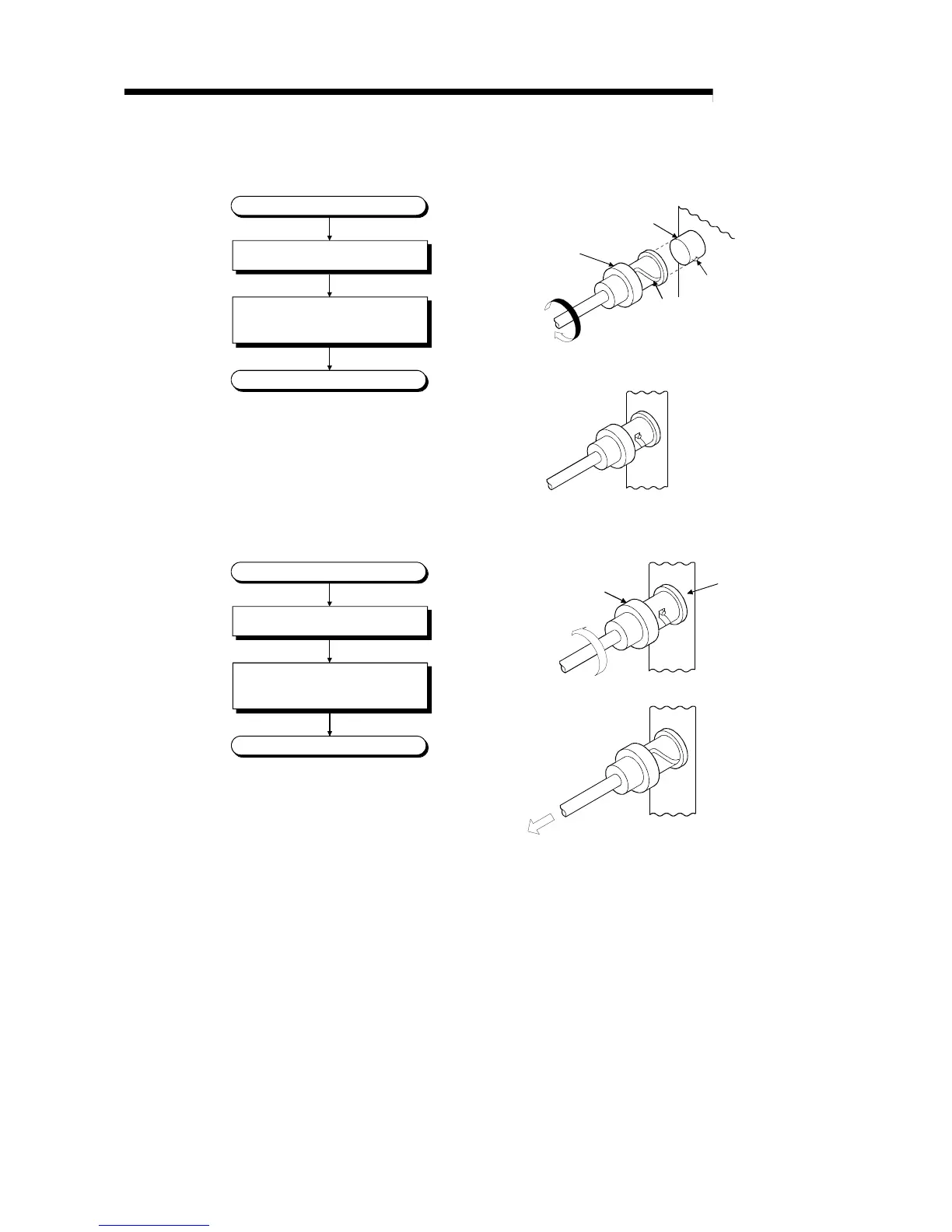

(b) Installing the coaxial cable
The following shows how to install the coaxial cable:
Insert the plug by aligning the groove of
the plug with the projection of the jack.
Complete
Start (Installation)
Rotate the plug in the direction of the
arrow (clockwise) securely to the position
shown in the second figure from above.
Plug
Jack
Groove
Projection
Link module
(c) Removing the coaxial cable
The following shows how to remove the coaxial cable:
Rotate the plug in the direction of the
arrow and unhook it.
Start (Removal)
Complete
Hold the plug by hand and pull it out in
the direction of the arrow as shown in
the bottom diagram.
Link module
Plug
