8.4 H/W Information

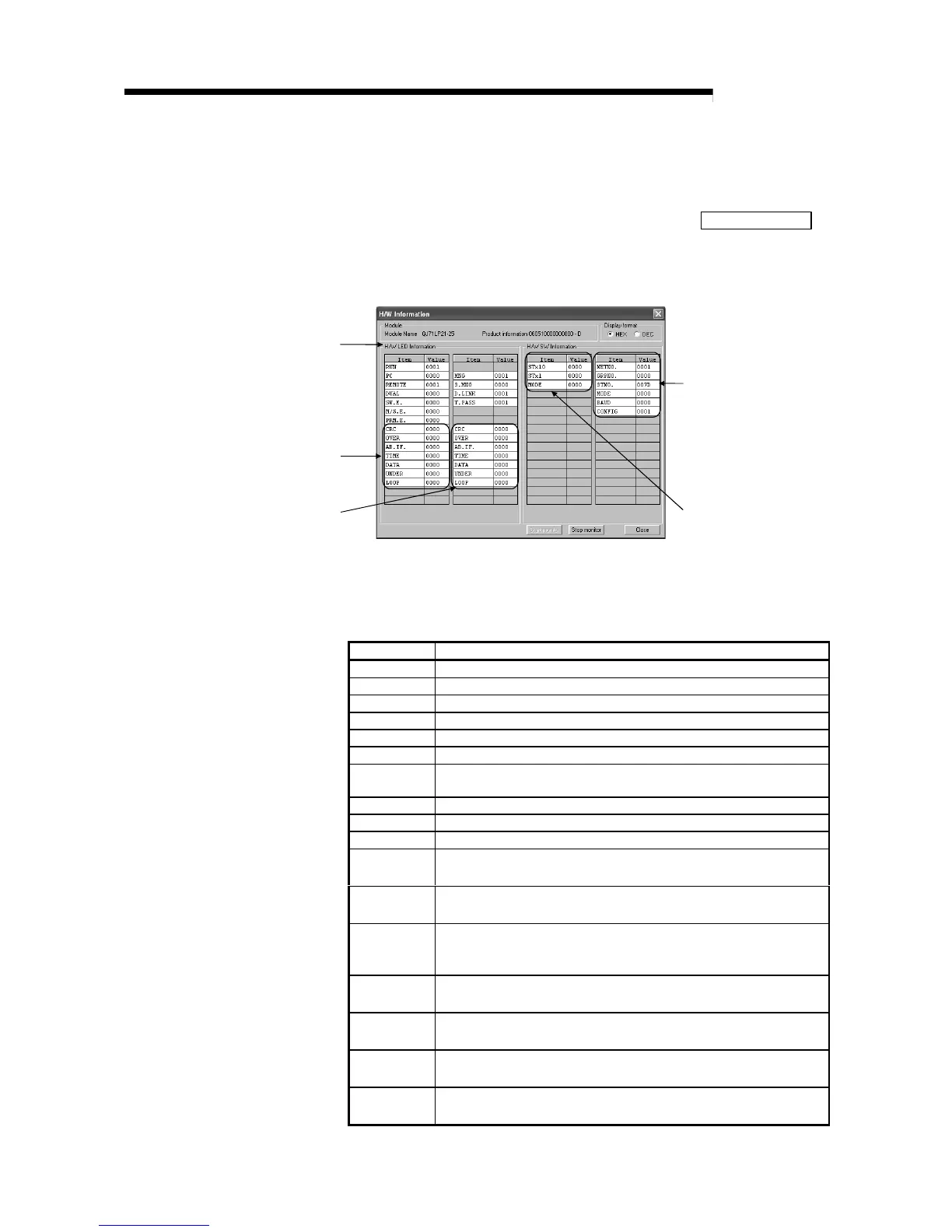

H/W information screen displays details of the LED and switch information of the
network modules. To display the H/W information screen, click the H/W information
button on the system monitor window of GX Developer.
(1) H/W information on the master module
1)
1) -a
1) -b
2) -b
2) -a
The following explains each of these items.
1) H/W LED information
This shows the LED information on the master module.
The value for each item is displayed as: 0001 on, 0000 off.
Item Description
PC PLC to PLC network: on
REMOTE Remote I/O network: on
DUAL In multiplex transmission: on
SW. E Switch setting error: on
M/S. E. Duplicate station number or remote master station on same network: on
PRM. E. Parameter error: on
MNG Remote master station set or multiplexed remote master station performing
master operation: on
S. MNG Multiplexed remote master station performing master operation: on
D. LINK In data link: on
T. PASS Baton pass participation: on
Error during code check of receiving data: onCRC
1)-a: Forward loop 1)-b: Reverse loop
Error when receive data processing has been delayed: onOVER
1)-a: Forward loop 1)-b: Reverse loop
Error when "1" over specification is continuously received or when the
received data length is short
AB.IF.
1)-a: Forward loop 1)-b: Reverse loop
Error when data link monitor timer has operated: onTIME
1)-a: Forward loop 1)-b: Reverse loop
Error when error data of 2k-byte or more has been received: onDATA
1)-a: Forward loop 1)-b: Reverse loop
Error internal processing of send data is not fixed interval: onUNDER
1)-a: Forward loop 1)-b: Reverse loop
Error when there is loop error: onLOOP
1)-a: Forward loop 1)-b: Reverse loop
