MELSEC-Q
8 TROUBLESHOOTING
8.1.1 Host information

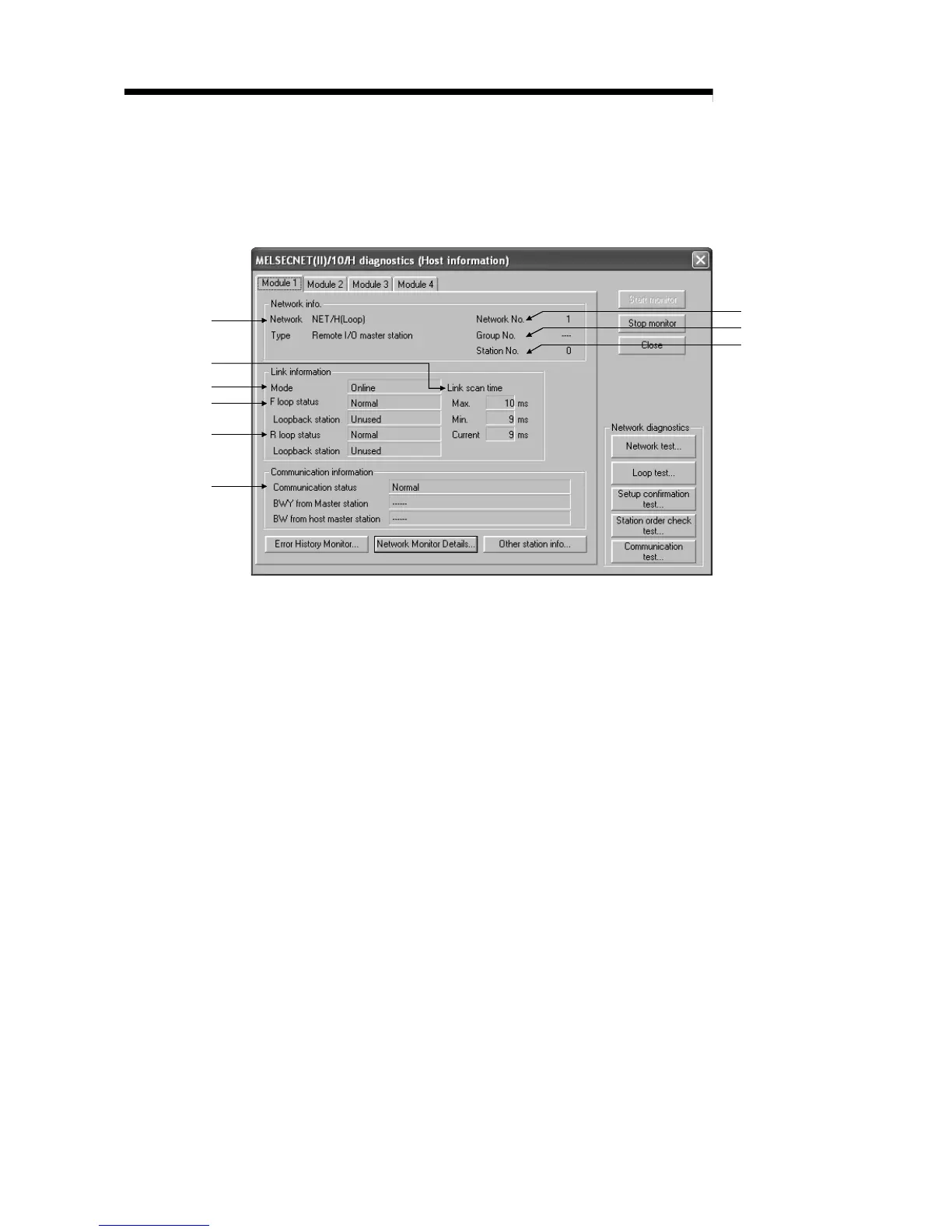

With the host information, the information of the entire network of the connection
destination and the status of the host can be checked.
2)
3)
4)
1)
5)
6)
7)
9)
8)
[Network info.]
1) Network type (SB0040, SB0044, SB0057, SW0046)
Displays the network type of the host.
• MELSECNET/H (loop) remote I/O master station
• MELSECNET/H (bus) remote I/O master station
2) Network No. (SW0040)
Displays the network No. of the host.
3) Group No. (SW0041)
Displays the group No. of the host.
"---" is displayed in case of remote I/O network.
4) Station No. (SW0042)
Displays the station number of the host.
