3 - 17 3 - 17
MELSEC-Q
3 SPECIFICATIONS
REMARK
If the network module has become faulty, a loopback may not be made depending
on the fault.
In that case, the network may stop. Identify the faulty network module in the
following method.
(1) Check the LED indications (RUN LED off, ERR. LED on) of all network
modules for a faulty station.
(2) Power off all stations and power them on in order, starting from the master
station. At that time, check up to which station the network operates properly.
Change the network module where the fault has been detected, and confirm that the
network is restored to normal.

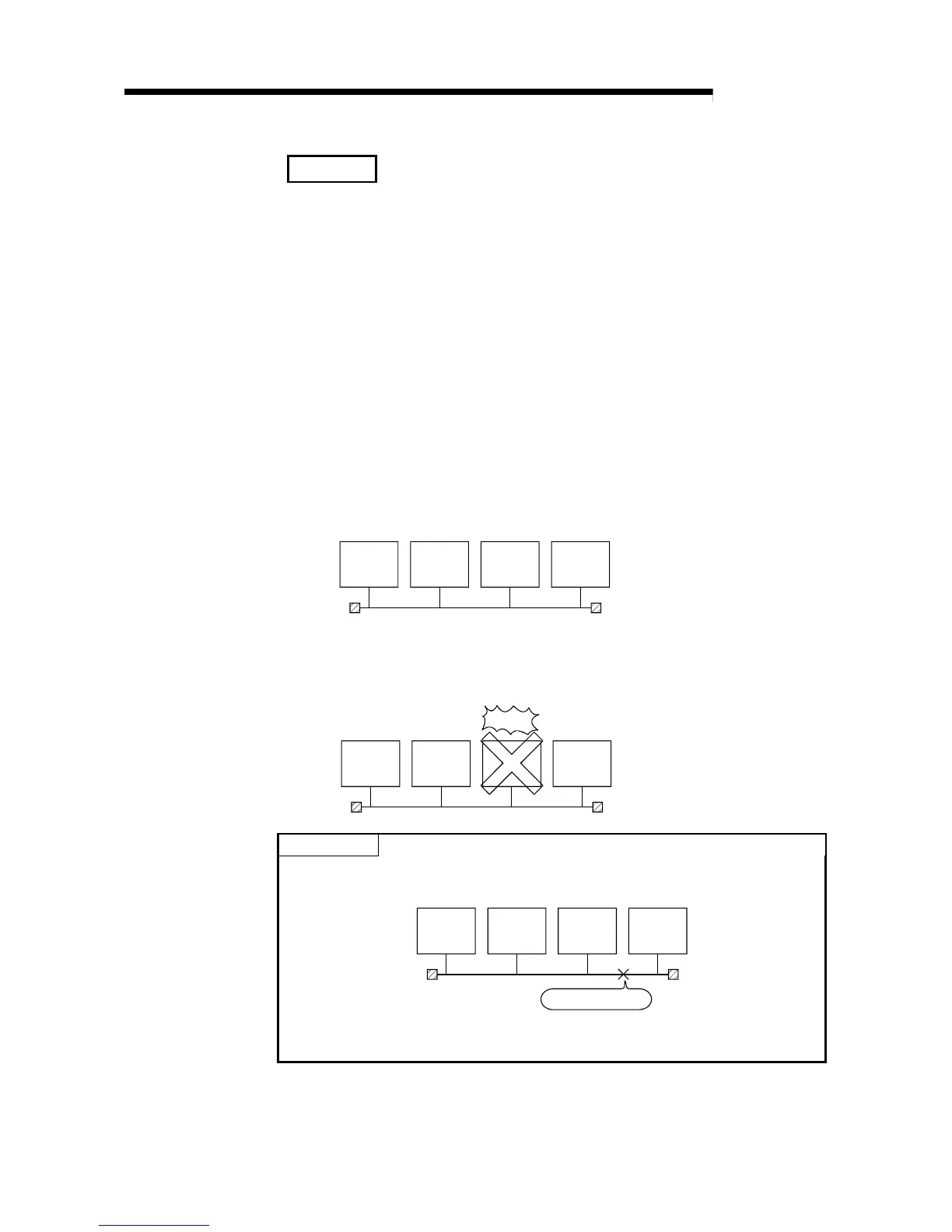

(4) Station detach function (coaxial bus system)
In the coaxial bus system, even if the power to a connected station is turned off,
the data link continues between other stations which are still able to perform data
communication.
(a) When normal
Terminal resistor
Remote
master station
(station No. 0)
Remote I/O
station
(station No. 1)
Remote I/O
station
(station No. 2)
Remote I/O
station
(station No. 3)
Terminal resistor
(b) When abnormal
The data link continues excluding the station that is down.
Remote
master station
(station No. 0)
Remote I/O
station
(station No. 1)
Remote I/O
station
(station No. 2)
Remote I/O
station
(station No. 3)
Down
POINT
When a cable disconnection occurs, the data link cannot be performed because
there will be no terminal resistors.
Cable disconnection
Remote
master station
(station No. 0)
Remote I/O
station
(station No. 1)
Remote I/O
station
(station No. 2)
Remote I/O
station
(station No. 3)
In addition, even if the cable is normal, the data link cannot be performed if a
terminal resistor is detached from an F-type connector.
