Mitsubishi QJ71BR11 User Manual

5 - 19 5 - 19
MELSEC-Q
5 PARAMETER SETTINGS

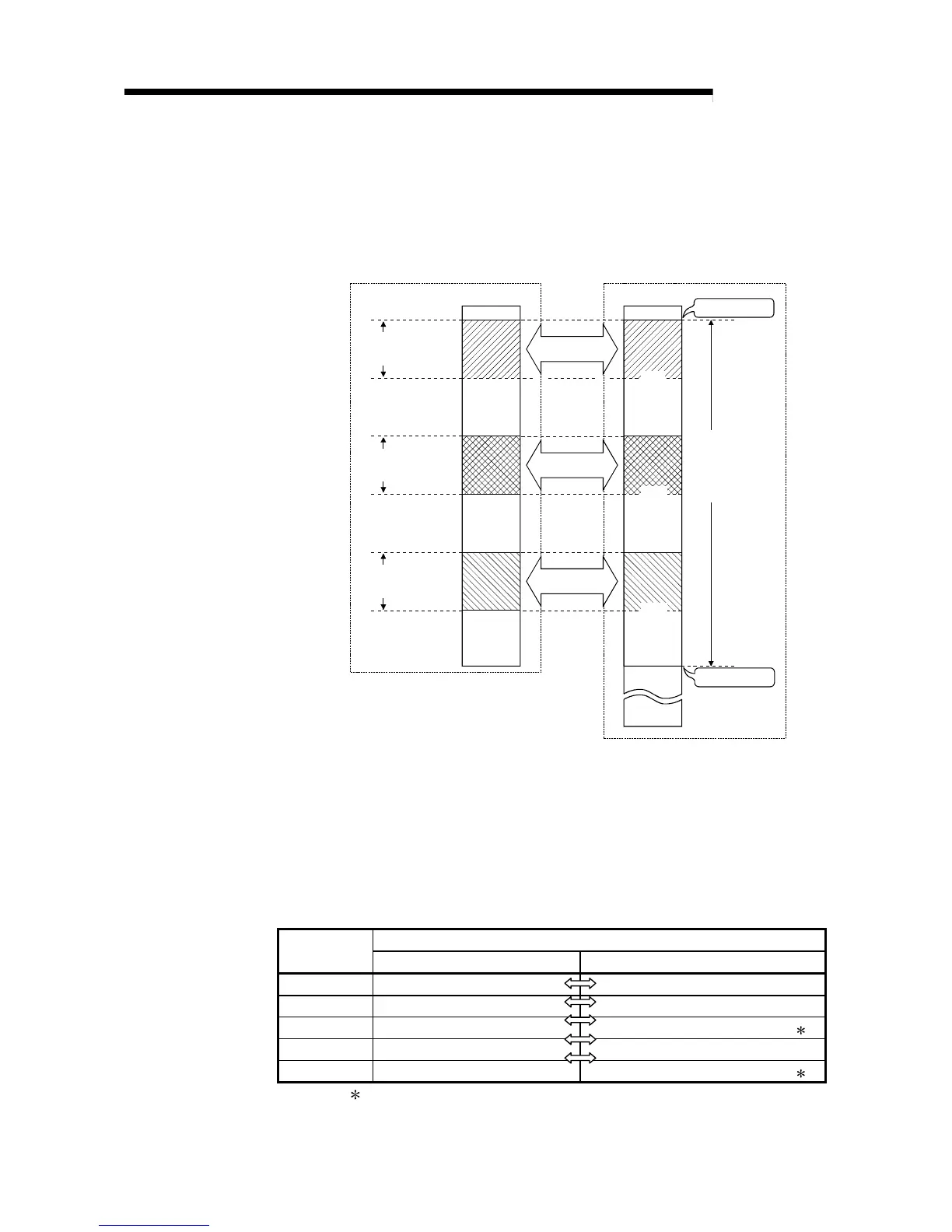

(1) Concept of the network refreshing
(a) Network refresh ranges
The devices that fall into both the range of all the stations set with the
common parameters ("start address to end address" of 1R1 to 1R3) and
the ranges set with the refresh parameters are refreshed.
Common
parameters
Device
(Vacant)
1R1
Range that is
actually refreshed
Start address
End address
1R2
1R3
CPU module
Master module
Refresh
Refresh
Refresh
Range of all
stations set with
the common
parameters
Range that is
actually refreshed
Range that is
actually refreshed
(Vacant)
(Vacant)
(b) Devices for which network refreshing can be executed
64 transfer settings (LX, LY, LB, LW), one SB transfer setting and one SW
transfer setting can be performed for each network module.
It is possible to transfer to different devices.
SB, LB, B, LX, LY, X, Y, M, L, T, C and ST can be set in 16-point units, and
SW, LW, W, D, R and ZR can be set in one-point units.
[List of devices for which the refresh combination transfer can be executed]
Devices for which transfer is allowed
Setting item
Link side device PLC side device
SB transfer SB SB
SW transfer SW SW
Transfer 1 LX, LY, LB, LW X, Y, M, L, T, B, C, ST, D, W, R, ZR 1
:: :
Transfer 64 LX, LY, LB, LW X, Y, M, L, T, B, C, ST, D, W, R, ZR 1
1 : C, T or ST cannot be selected as the refresh destination of LX.
