6 - 11 6 - 11
MELSEC-Q
6 PROGRAMMING
(Program example)

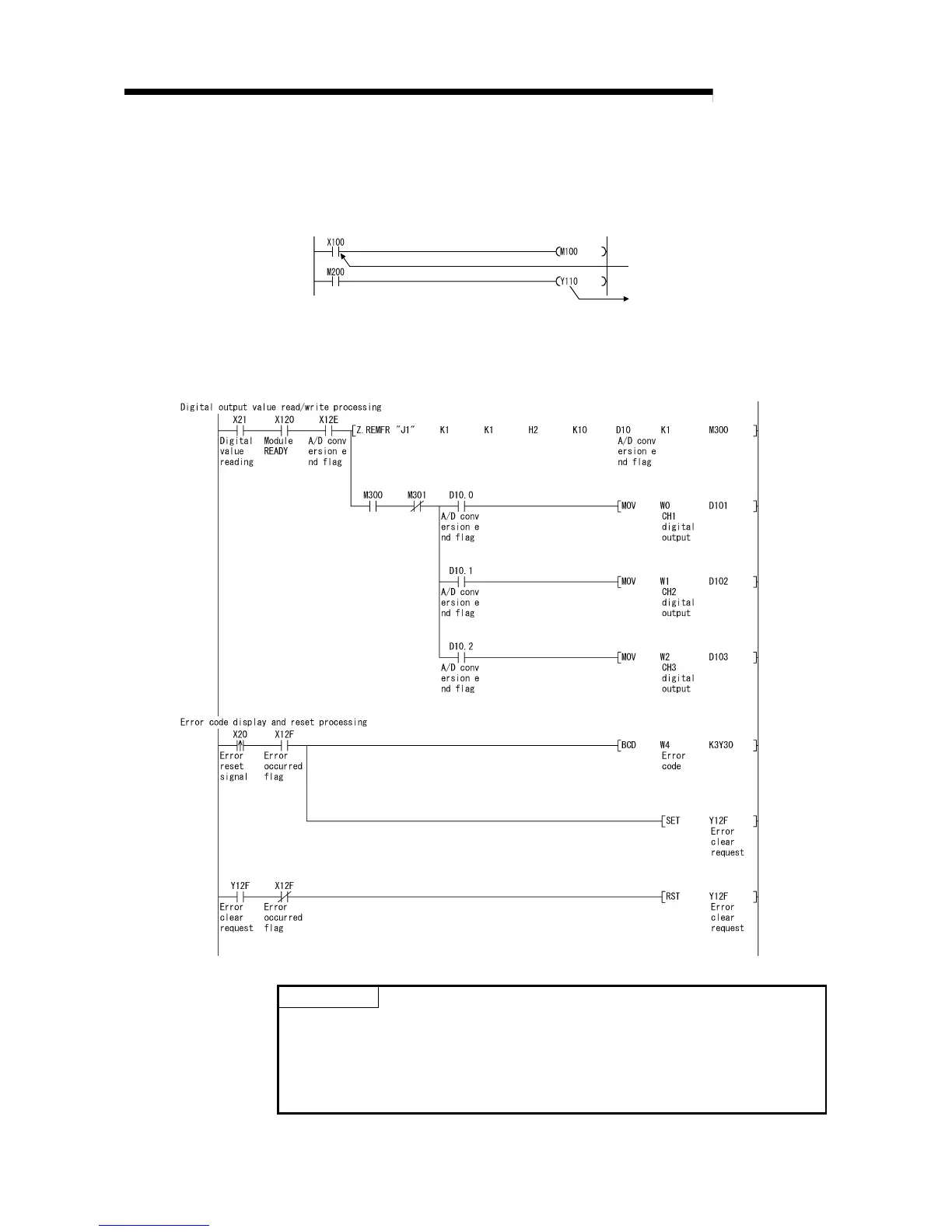

(1) Program for communicating with input/output module QX40,QY40P
The sequence program uses input (X100 to X10F) and output (Y110 to Y11F) to
handle remote I/O station (station No. 1) QX40 input and QY40P output.
Input from remote I/ O station X0
Output to remote I/ O station Y10
(2) Program for communicating with intelligent function module Q64AD
The 64AD digital value can be read out by W0 to W3 by the automatic refresh
settings of the intelligent function module parameters.
POINT
If automatic refresh settings are performed by the intelligent function module
parameters in the remote I/O module, do not use device X,Y in the PLC-side
device. If these are incorrectly used, the network will not operated properly.
In the same manner, do not use device X,Y in the CC-Link refresh settings with the
remote I/O module network parameters.
To Next Page
