7 APPLICATION FUNCTIONS
(f) Select the multiplexed remote master station or multiplexed remote sub-
master station from "Network type" on the "Module count setting screen" of
the GX Developer parameters.

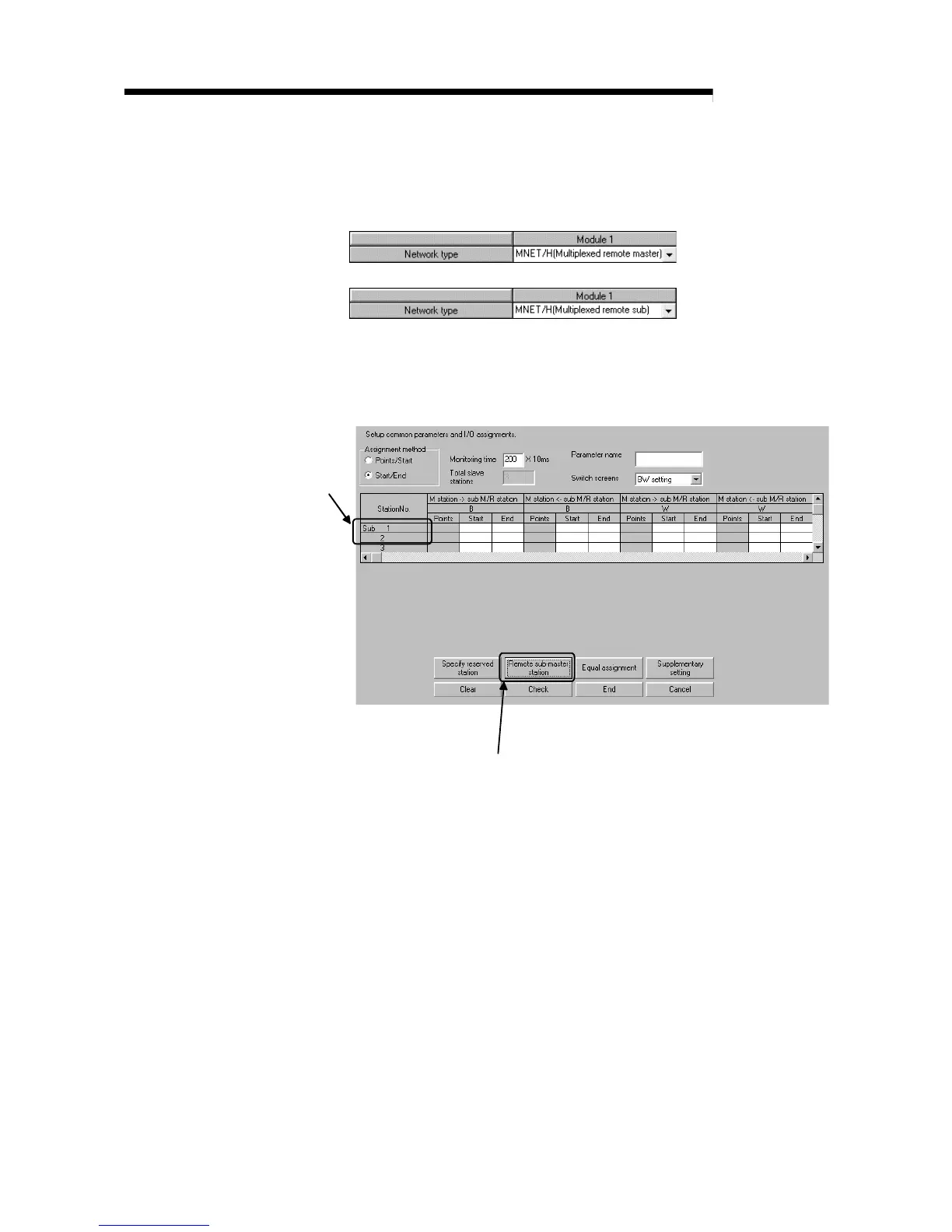

• Multiplexed remote master station:
• Multiplexed remote sub-master station:
Since the multiplexed remote master station needs to recognize the station
number of the multiplexed remote sub-master station, set the station
number of the multiplexed remote sub-master station on the network range
assignment screen of the multiplexed remote master station.
1) Choose station No. of
multiplexed remote
sub-master station.
2) After choosing station No. of multiplexed remote sub-master station,
click this button to complete setting. After the setting is completed,
"Sub" appears in Station No. field.
(g) On the network range assignment screen, assign the ranges for information
transfer to/from the multiplexed remote sub-master station and also the
ranges for control of the remote I/O stations.
