(d) Setting procedure of remote password
"GX Developer"
"Remote Password" "Remote Password Setting"
screen
"Remote Password Details Setting" screen

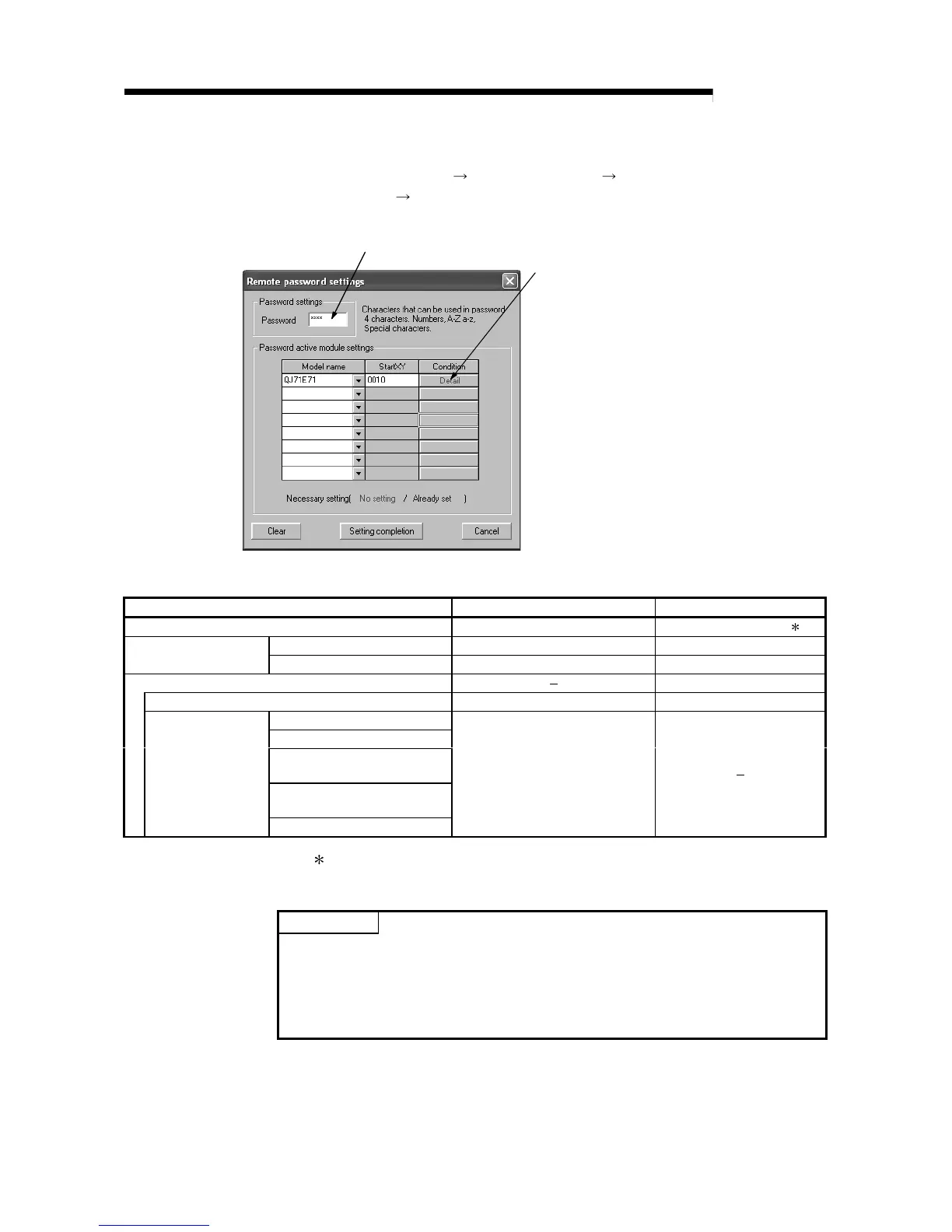

1) Setting screen
Set a remote password
Detailed setting is necessary
for QJ71E71.
2) Setting items
Item Setting Setting range/option
Password settings Enter a remote password 4 characters, ASCII code 1
Model Select a model QJ71E71/QJ71C24/QJ71CMO
Password valid module
setting
Top X/Y Set the module’s top address 0000H to 0FE0H
Detailed settings Available or N/A
Connection No. for users Set a connection No. for users Connection No.1 to 16
Automatic open UDP port
FTP communication port (TCP/IP)
GX Developer communication
port (TCP/IP)
GX Developer communication
port (UDP/IP)
Connection for system
HTTP port
Check the remote password valid port
1: Indicates the upper/lower-case characters (other than " ", i.e., space) that
can be input using the keyboard
POINT
For the details of the remote password function, refer to the manuals below.
• When the serial communication module is used:
Q Series Serial Communication Module User's Manual (Application)
• When the Ethernet module is used:
Q Series Ethernet Interface Module User's Manual (Basic)
