2 - 2 2 - 2
MELSEC-Q
2 SYSTEM CONFIGURATION
2.1.2 Setting items
(1) Table 2.1 shows the setting items on the master module of the remote master
station (MR) and the parameter setting items on GX Developer.

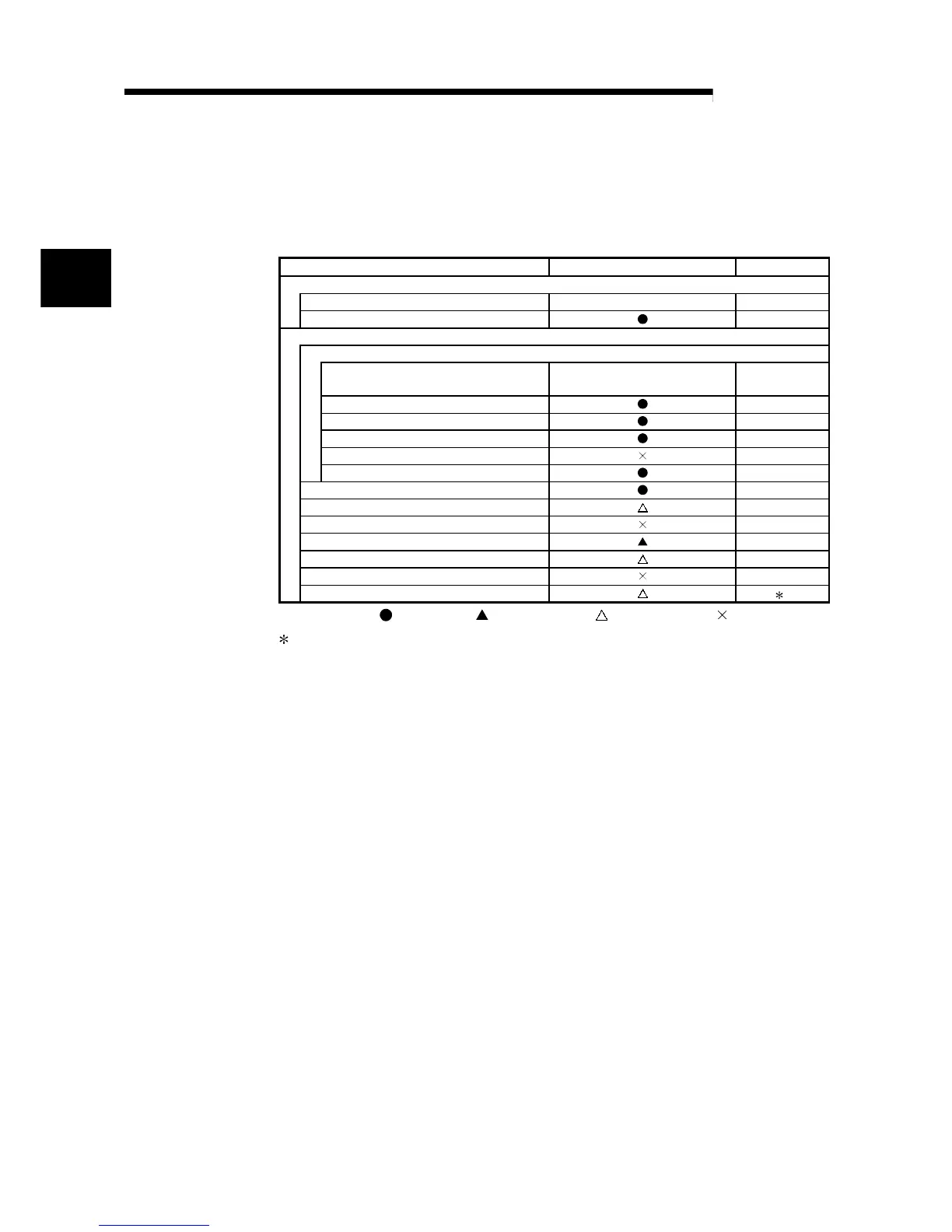

Table 2.1 Remote master station setting items
Setting items Remote master station (M
R
) Reference
Network module switch
STATION NO. 0 Section 4.2.1
MODE Section 4.2.2
Parameter setting on GX Developer
MELSECNET/H Ethernet module count setting
Network type
MELSECNET/H
(Remote master station)
Section 5.1.1
Starting I/O No. Section 5.1.2
Network No. Section 5.1.2
Total stations Section 5.1.2
Group No. —
Mode Section 5.1.2
Common parameters Section 5.1.3
Auxiliary setting Section 5.1.4
Station specific parameters —
Refresh parameters Section 5.1.5
Valid module during other station access Section 5.1.6
Interlink transmission parameters —
Routing parameters 1
: Always set,
:
Default setting,
:
Set as needed,
:
No need to set
1: Refer to the "Q Corresponding MELSECNET/H Network System Reference
Manual (PLC to PLC Network) (SH-080049)".
2
