2 Basic Measuring Methods
No. 99MAF600B
5 If you have tightened the clamp screw,
loosen it.
3
Obtain the highest point of the hole.
If the scanning measurement termination method is set to [Auto] (automatic termination)

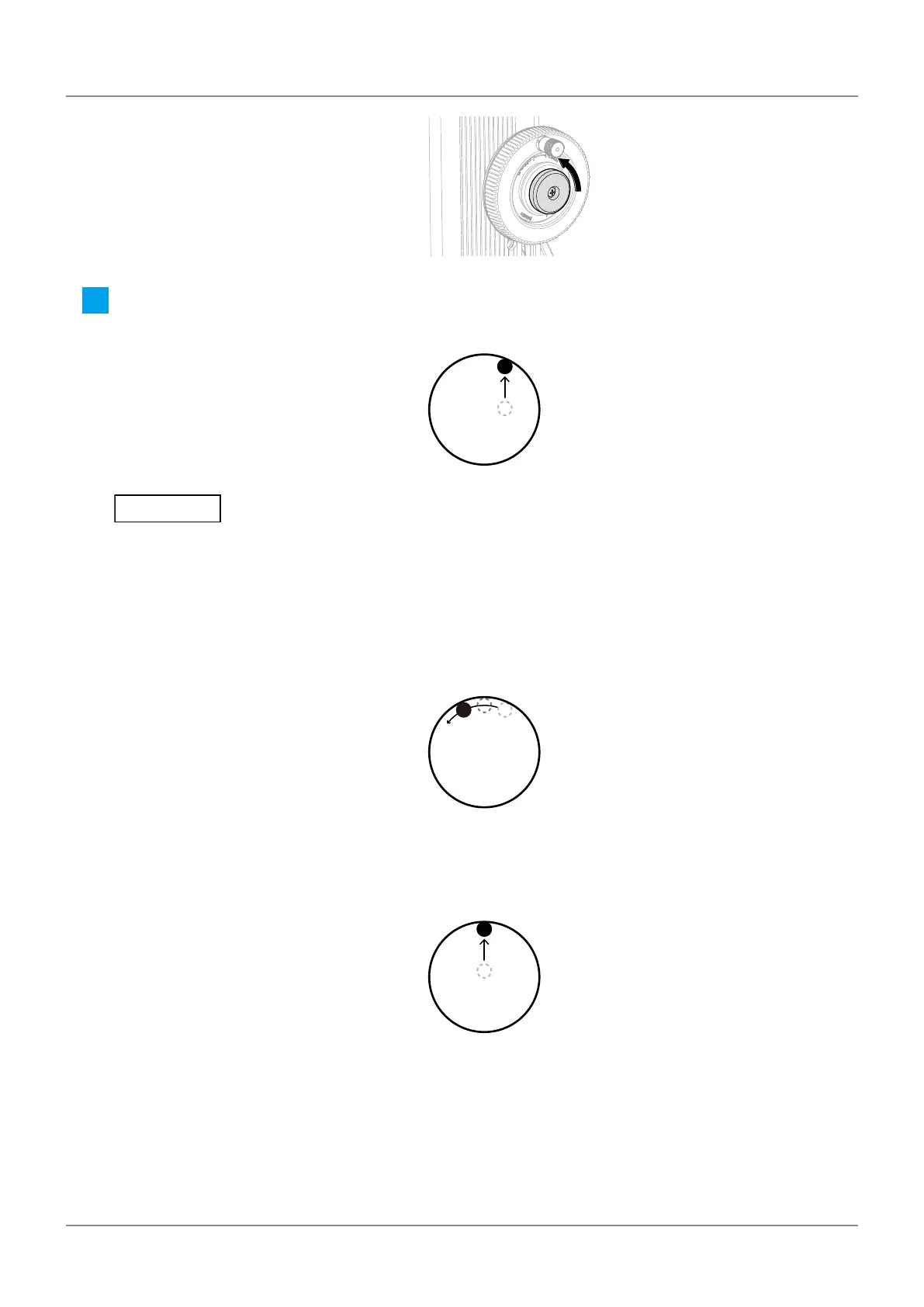

1 Face the ball towards the left or right of
the center top surface of the hole, and
slowly bring it into contact with the sur-
face until a beep sound is made.
Maintain contact with the ball.
» [0.000] will be displayed on the
LCD screen.
Bring the ball into contact within 0.5 mm of
the highest point. Measuring with a wider
range may increase measurement errors.
2 Secure the probe up/down wheel with
your hand or the clamp screw in order to
prevent it from moving.
3 Move the ball left or right so that it
passes the center of the top surface of
the hole. Perform this action until a beep
sound is made.
» The measurement of the high-
est point is complete.
4 If you have tightened the clamp screw,
loosen it.
If the scanning measurement termination method is set to [ENTER] (manual termination)
1 Face the ball towards the center of the
top surface of the hole, and slowly bring
it into contact with the surface until a
beep sound is made.
Maintain contact with the ball.
2 Secure the probe up/down wheel with
your hand or the clamp screw in order to
prevent it from moving.
To Next Page
