3SpecicUsageApplications
No. 99MAF600B
3.1.1 Determining the Difference Between the Most Recently Mea-
sured Value

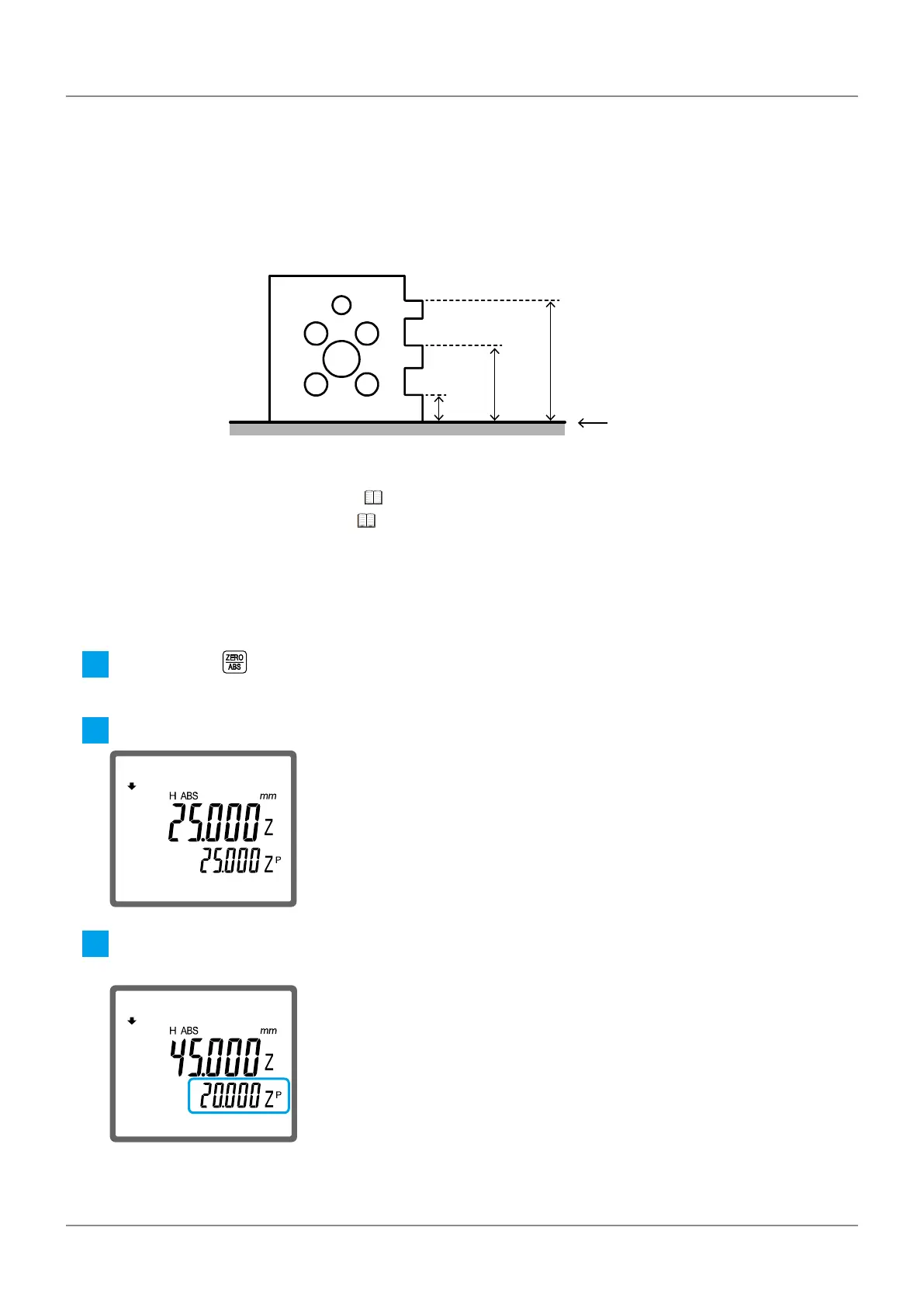

Check the difference between the current and previous measurement by observing the value in the
bottom row of the LCD screen. As an example, with the surface plate set as the ABS reference, the
heights of a1, a2, and a3 are measured in that order, and the difference for each measurement can be
checked.
a3
a2
a1
25 mm
45 mm
67 mm
ABS reference
Tips
• For details about the ABS reference, "1.4.1 Reference Setup" (page 10)
• For details about measuring height,
"2.1 Measuring the Height" (page 17)
• If an inner diameter, outer diameter, or plane scanning measurement is made, the median measurement
will be used for comparisons. For example, if the inner diameter is measured sequentially for circles s1 and
s2, the difference displayed in the bottom row of the LCD screen will be calculated using the median values
(centers) of circle s1 and s2.
1
Press and hold to change to the ABS reference setting.
» [ABS] will be displayed on the LCD screen.
2
Measure the height of a1.
3
Measure the height of a2.
» The difference with a1 is displayed in the bottom row.
To Next Page
