14
1 Before Using This Product
No. 99MAF600B

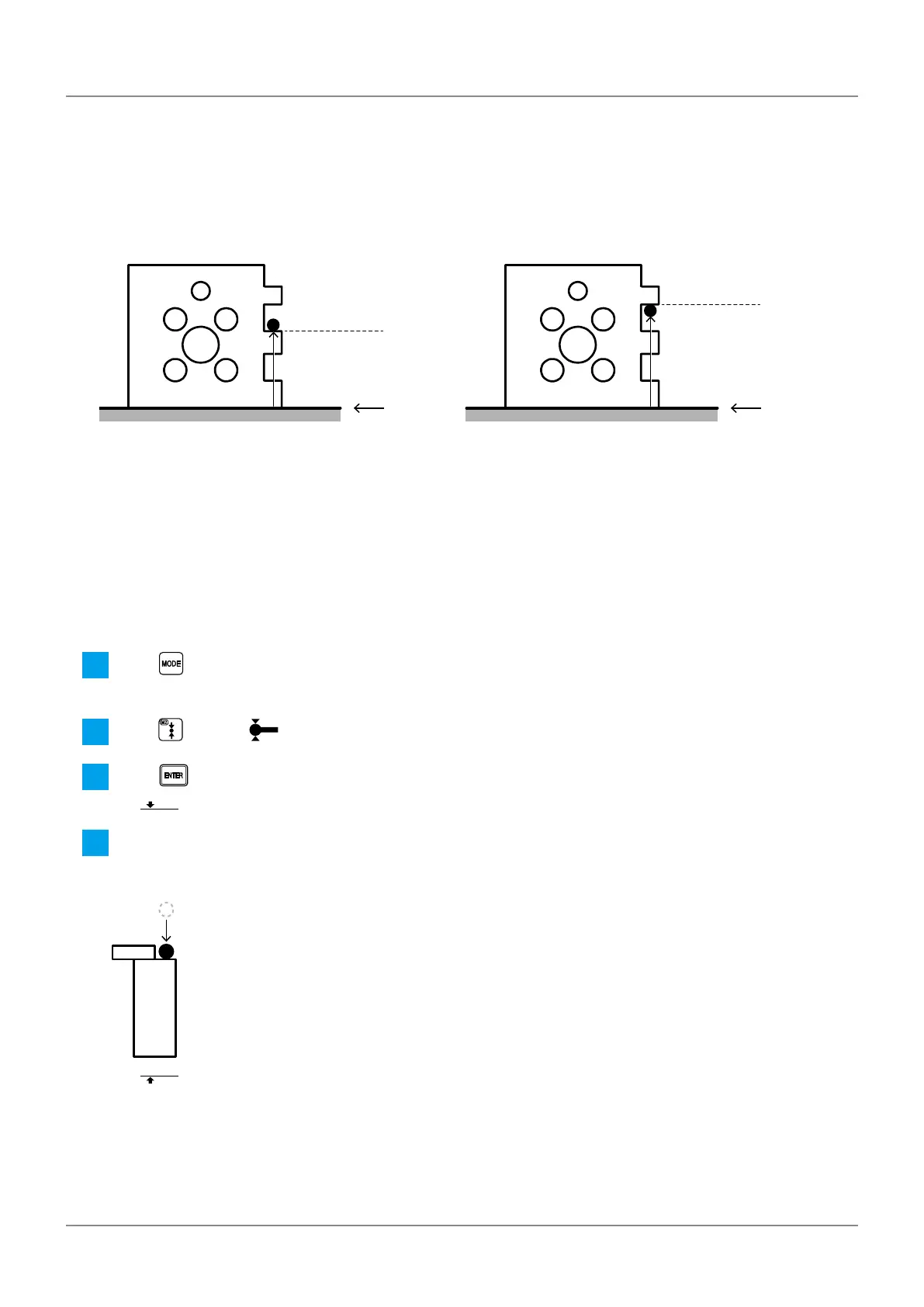

1.4.2 Ball Diameter Setup
The height is calculated using the distance moved by the bottom surface of the ball attached to the tip
of the probe. (See the left gure below.)
However, when measuring by making contact with the top of the ball, the height will be measured by
adding the diameter of the ball to the distance moved by the bottom of the ball. (See the right gure
below.)
a1
a1
Reference
Surface a1 height = Distance moved by
the bottom of the ball
Reference
Surface a1 height = Distance moved by the bottom
of the ball + diameter of the ball
The diameter of the ball must be set in advance. The following procedure explains how to measure
the diameter of the ball using the provided ball diameter calibration block. This procedure is neces-
sary if you are using the product for the rst time or if you are replacing the probe.
Tips
If using a gauge block, use one with a height of 20 mm or more.
1
Press .
» Characters and icons will be displayed in the bottom row of the LCD screen.
2
Press to select (probe settings).
3
Press .
» will be displayed on the upper left of the LCD screen.
4
Slowly bring the ball of the probe into contact with the following position on the ball diameter calibration
block until a beep sound is made.
» will be displayed on the upper left of the LCD screen.
To Next Page
