2 Basic Measuring Methods
No. 99MAF600B
2.2
Measuring the Width

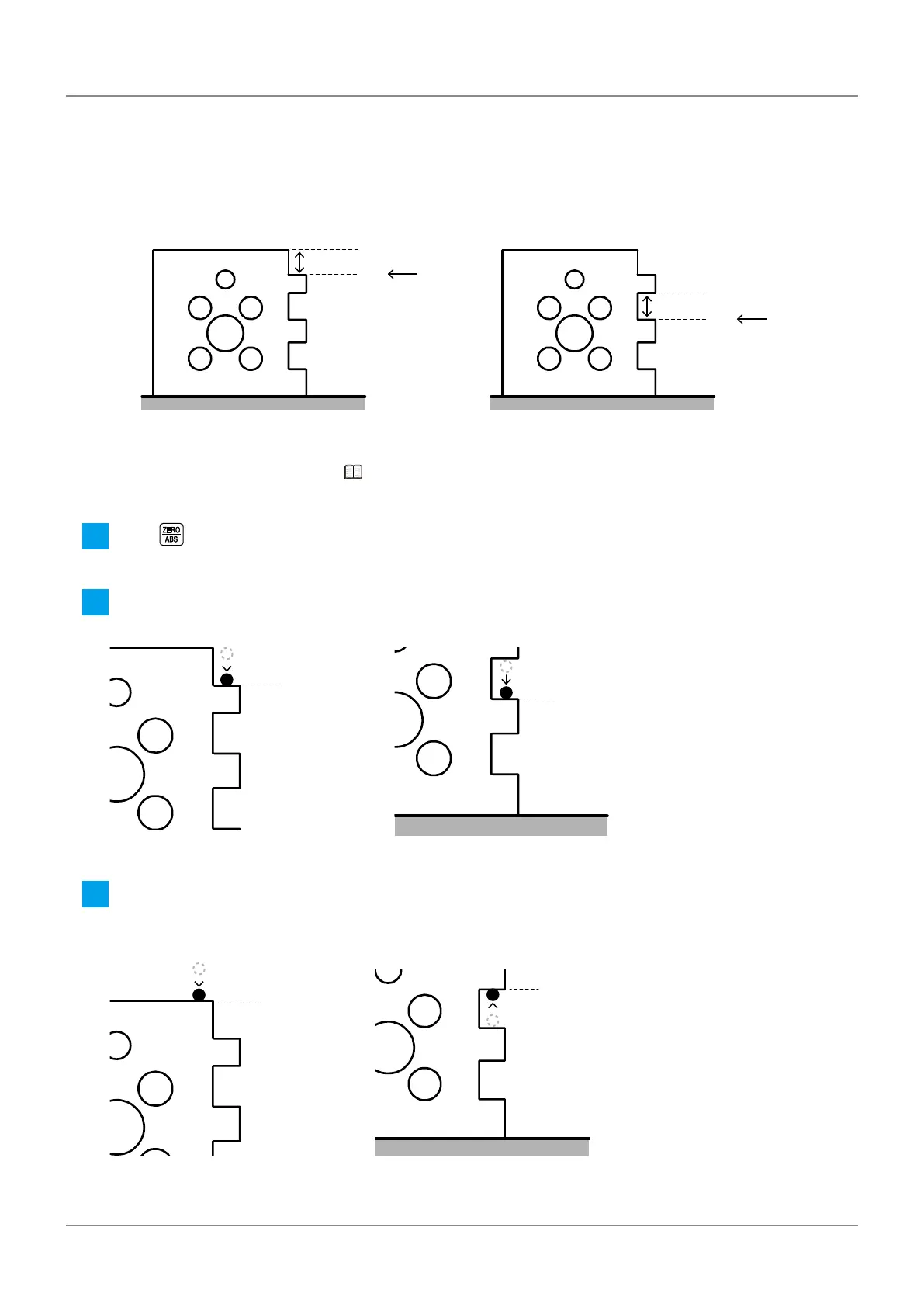

Measure the steps and the width of the grooves. As an example, the procedure for measuring the step
of A (10 mm) and the groove width of B (30 mm), shown below, using a1 as the INC reference is ex-
plained.
a1
A (10 mm)
a2
B (30 mm)
a2
a1
Groove width measurement
INC reference
INC reference
Step measurement
Tips
For details about the INC reference, "1.4.1 Reference Setup" (page 10)
1
Press to change to the INC reference setting.
» [INC] will be displayed on the LCD screen.
2
Bring the ball of the probe into contact with surface a1 until a beep sound is made.
a1
a1
Step measurement Groove width measurement
» [0.000] will be displayed on the LCD screen.
3
Bring the ball into contact with surface a2 until a beep sound is made.
Maintain contact with the ball.
Step measurement Groove width measurement
a2
» When the measurement is complete, [H] and the measured value are displayed on the LCD screen.
