Mitutoyo QM-Height Series User Manual

60
6Specications
No. 99MAF600B

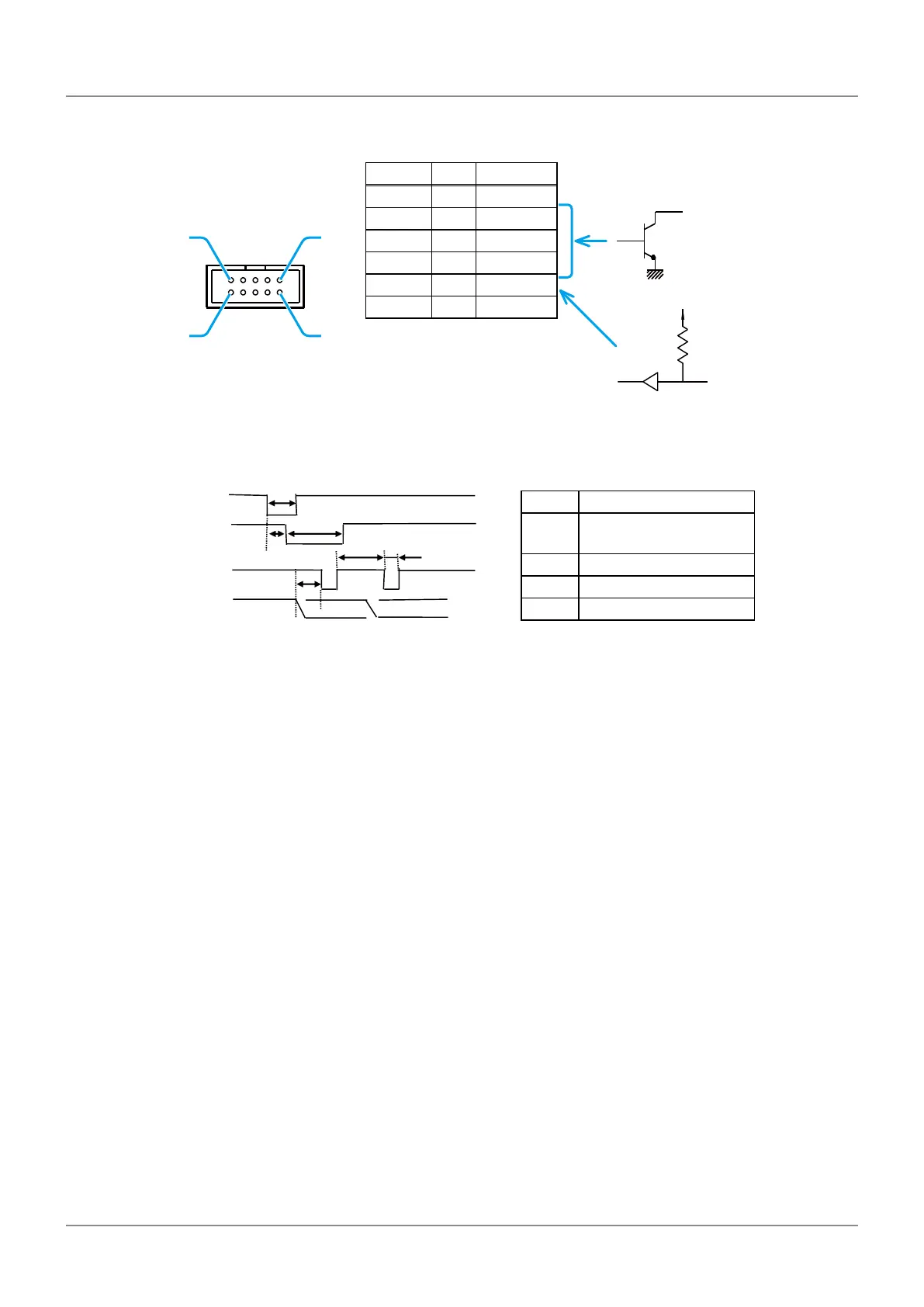

6.2.2 Connector Specication
Pin No. I/O Symbol
1, 10 - GND
2 O DATA
3 O CLOCK
4 O RD
5 I REQ
6 to 9 - (Not used)
Vceo=35(V)
Ic=200(mA)
3.3 (V)
22 (kΩ)
CMOS
9
10
1
2
6.2.3 Timing Chart
R D
T 1
R EQ
T 2
T 3
C K
D ATA
T 4
T 5
T 6
7
T1 2 sec (max)
T2, T3 Differs according to the
connected device
T4 430 µs (Typ.)
T5 200 µs (Typ.)
T6 200 µs (Typ.)
