43
3SpecicUsageApplications
No. 99MAF600B
3.4
Setting the Terminating Method for Scanning Mea-
surements
A scanning measurement obtains multiple measurements by moving the ball of the probe while main-
taining contact with the workpiece and calculates values such as the maximum and minimum values
from among the measurements. This section explains how to specify the termination method for scan-
ning measurements. This setting is applicable to inner and outer diameter measurements.
Tips
[Auto] (automatic termination) is the default setting.
1
Press .
» Characters and icons will be displayed in the bottom row of the LCD screen.
2
Press to select (probe settings).
3

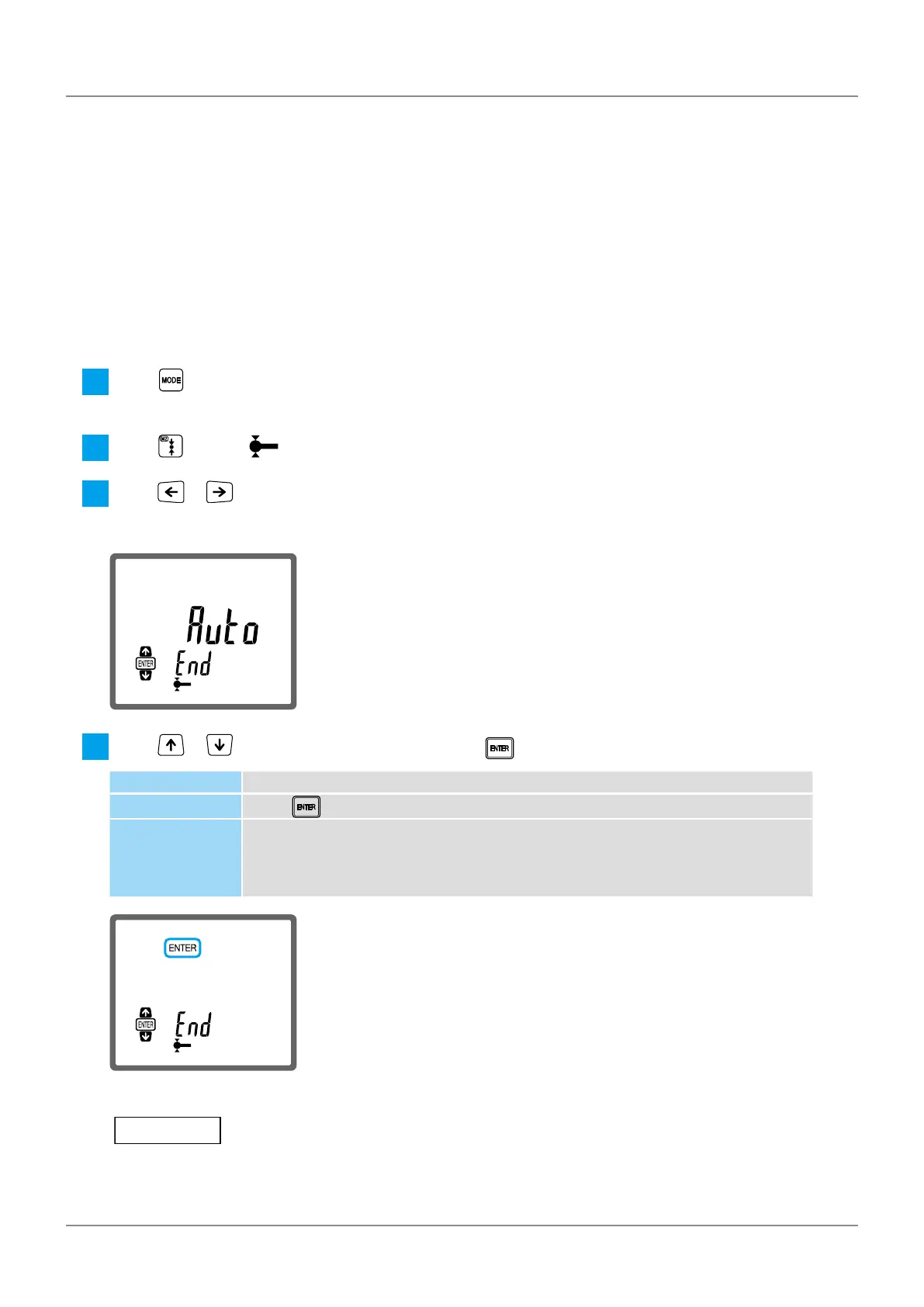

Press or to display the following screen.
» [Auto] (automatic termination) or [ENTER] (manual termination) will be displayed, depending on the current
setting.
4
Press or to select the setting, and then press .
Setting Details
[ENTER]
Press
to manually terminate the scanning measurement.
[Auto] The scanning measurement automatically terminates when the ball of the probe
elevates about 0.5 mm from the lowest point or lowers about 0.5 mm from the
highest point of the hole or cylinder. When the measurement is complete, a beep
sound is made.
» Setup is complete.
If [Auto] (automatic termination) is set, ensure that the ball is set to pass through the lowest and highest points
of the hole or cylinder. An accurate measurement result cannot be obtained if the ball does not pass through the
lowest and highest points.
To Next Page
