3SpecicUsageApplications
No. 99MAF600B
3.3
Simplifying Measurement Procedures
For example, if you want to make measurements in the following order: height at 4 points, inner diam-
eter at 4 points, and outer diameter at 2 points. When performing multiple measurements in a set or-
der, it is benecial to register the procedure. Because the measurements are automatically performed
following the order of the registered procedure, the overall operation is simplied.
The following measurement functions can be registered.
y Inner diameter measurement
y Outer diameter measurement
y Plane scanning measurement
y Bottom surface measurement
y Top surface measurement
Tips
For details about each measurement function, "2 Basic Measuring Methods" (page 17)
3.3.1 Registering a Measurement Procedure
Select the measurement functions, such as height and inner diameter, in the order they will be used,
and register them. Up to 10 steps can be registered.

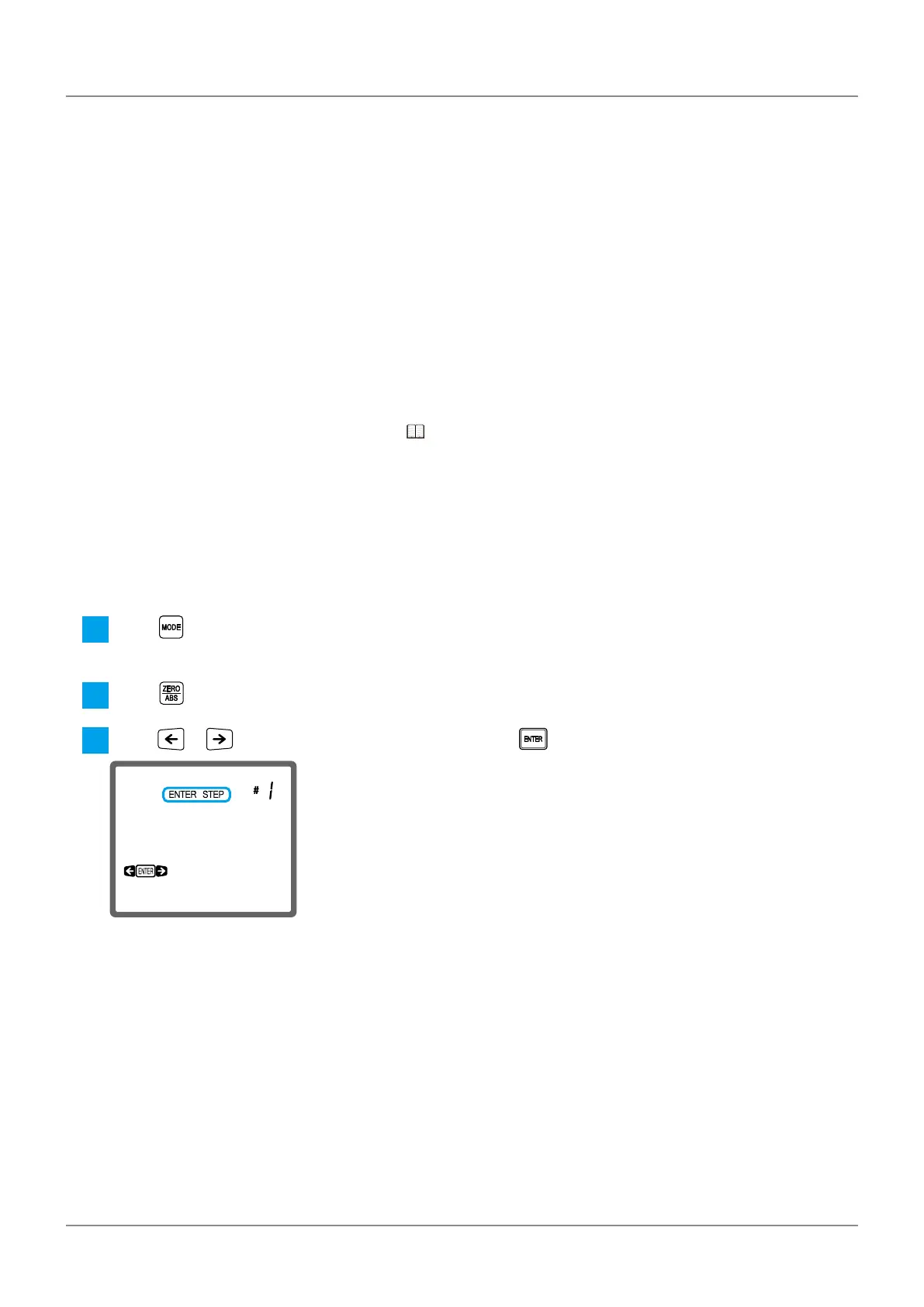

1
Press 2 times.
» Characters will be displayed in the bottom row of the LCD screen.
2
Press to select [ASSIST] (assist function).
3
Press or to select [ENTER STEP], and then press .
