Mitutoyo QM-Height Series User Manual

59
6Specications
No. 99MAF600B
6.2

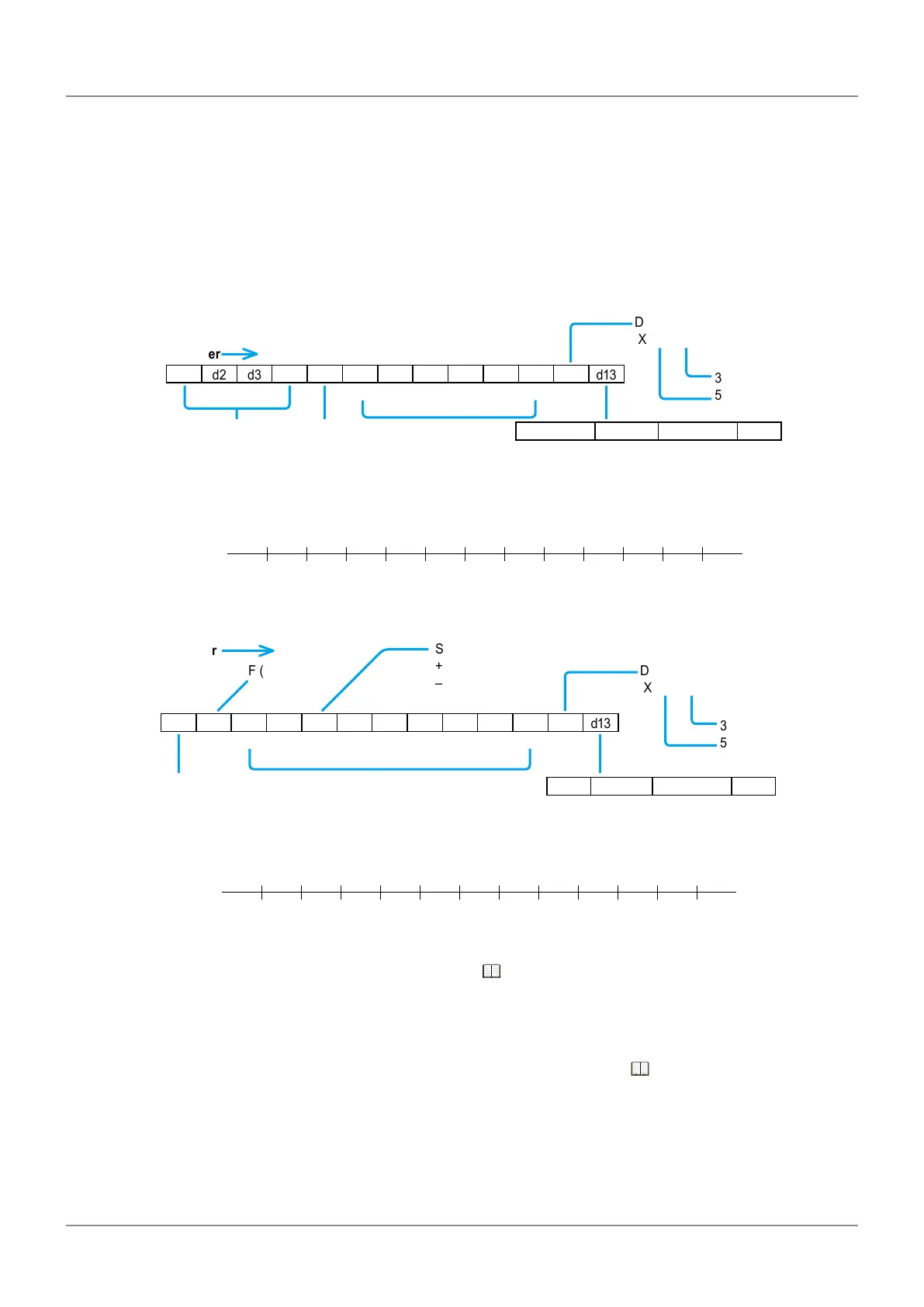

DigimaticDataOutputSpecication
6.2.1 Data Format

Digimatic output
(Example) At a normal measurement of 0.123 mm
1111 1111 1111 1111 0000 0000 0000 0000 1000 0100 1100 1100 0000
F F F F + 0 0 0 1 2 3 3 mm
d1 d2 d3 d4 d5 d6 d7 d8 d9 d10 d11 d12 d13
MSD LSD
Unit
mm 0 (0000) inch 1000
Measured value
All "F" (1111) Sign
+: 0 (0000)
–: 8 (0001)
Output order
Decimal point
X.X.X.X.X.X.X
3 (1100)
5 (1010)

Digimatic 2 output
d1 d2 d3 d4 d5 d6 d7 d8 d9 d10 d11 d12 d13
MSD LSD
Unit
mm 0 (0000) inch 1000
Measured value (d3–d4,d6–d11)
F (1111)
Format
Digimatic 2: 8 (0001)
Sign
+: 0 (0000)
–: 8 (0001)
Output order
Decimal point
X.X.X.X.X.X.X
3 (1100)
5 (1010)
(Example) At a normal measurement of 0.123 mm
0001 1111 0000 0000 0000 0000 0000 0000 1000 0100 1010 1010 1000
8 F 0 0 + 0 0 0 1 2 3 3 mm
Tips
• For details about specifying the number of output digits, "3.9.1 Outputting to a Mini Printer (Optional
Accessory)" (page 47)
• 7 digits are enabled when the resolution is set to [0.00005 in]. Due to our Digimatic data output specica-
tions, all of these digits cannot be output simultaneously. Generally, the value in the 10s place (the highest
value position) will be excluded, and only the remaining 6 digits will be output. However, it is possible to
change the settings so that the digit with the highest value is output. For details,
"3.9.1 Outputting to a
Mini Printer (Optional Accessory)" (page 47)
